Ethernet Module Communications Network - Component Location

WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.

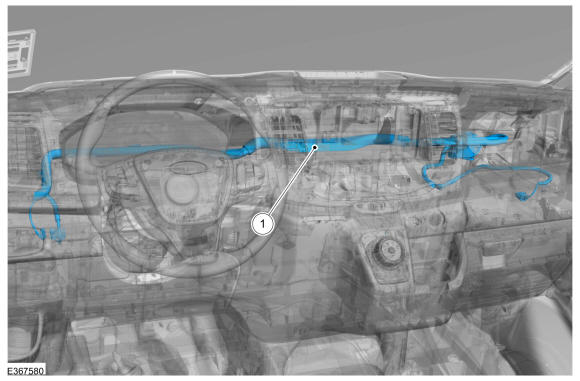

TCU Ethernet Cable routing

GFD640746Courtesy of FORD MOTOR COMPANY
Item Description
1 TCU Ethernet cable routing

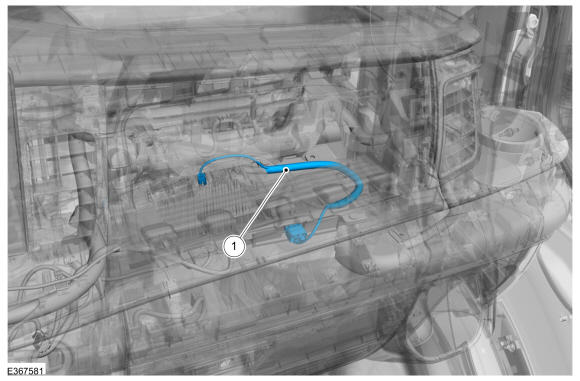

APIM Ethernet Cable routing

GFD640747Courtesy of FORD MOTOR COMPANY
Item Description
1 APIM Ethernet cable routing
