Connector Repair Procedures

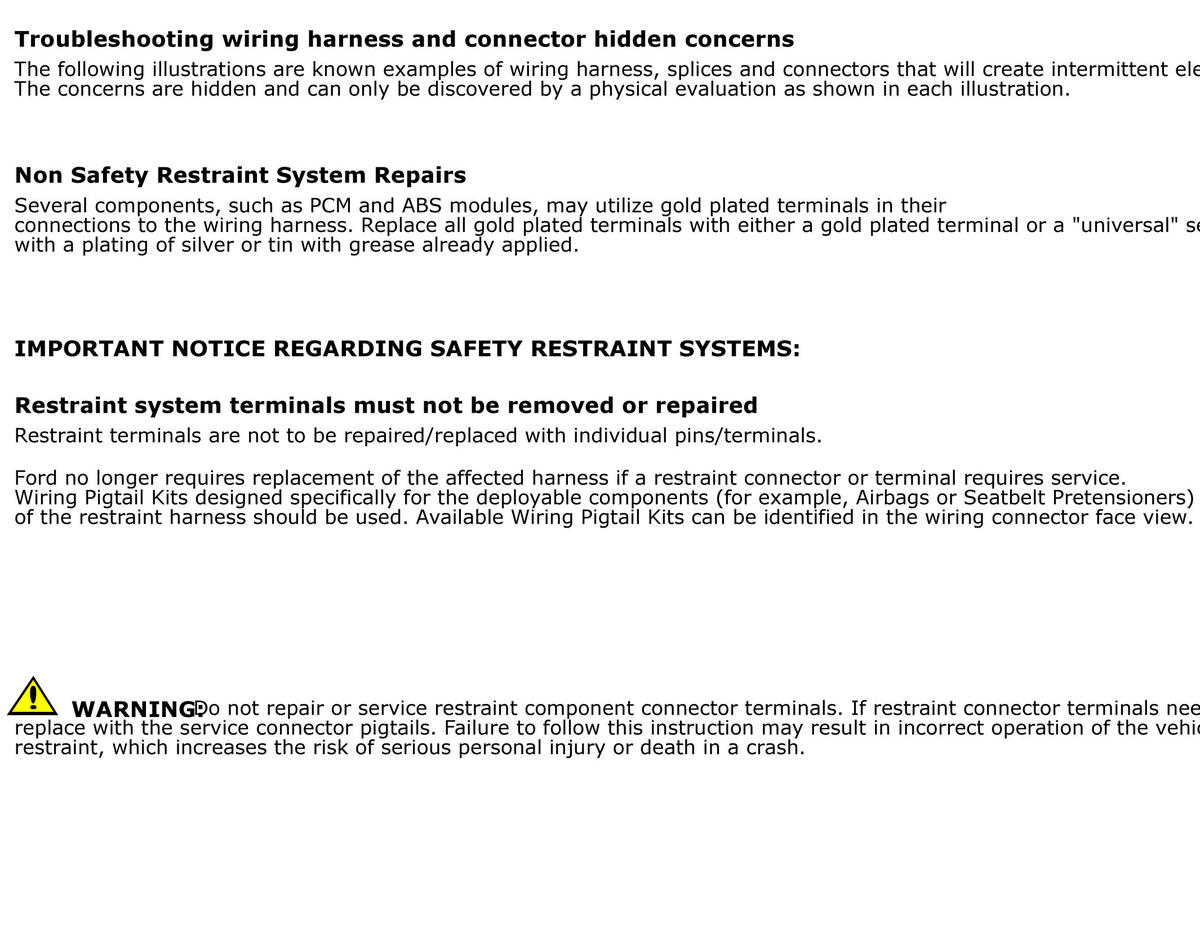

GFDWR213427Courtesy of FORD MOTOR COMPANY

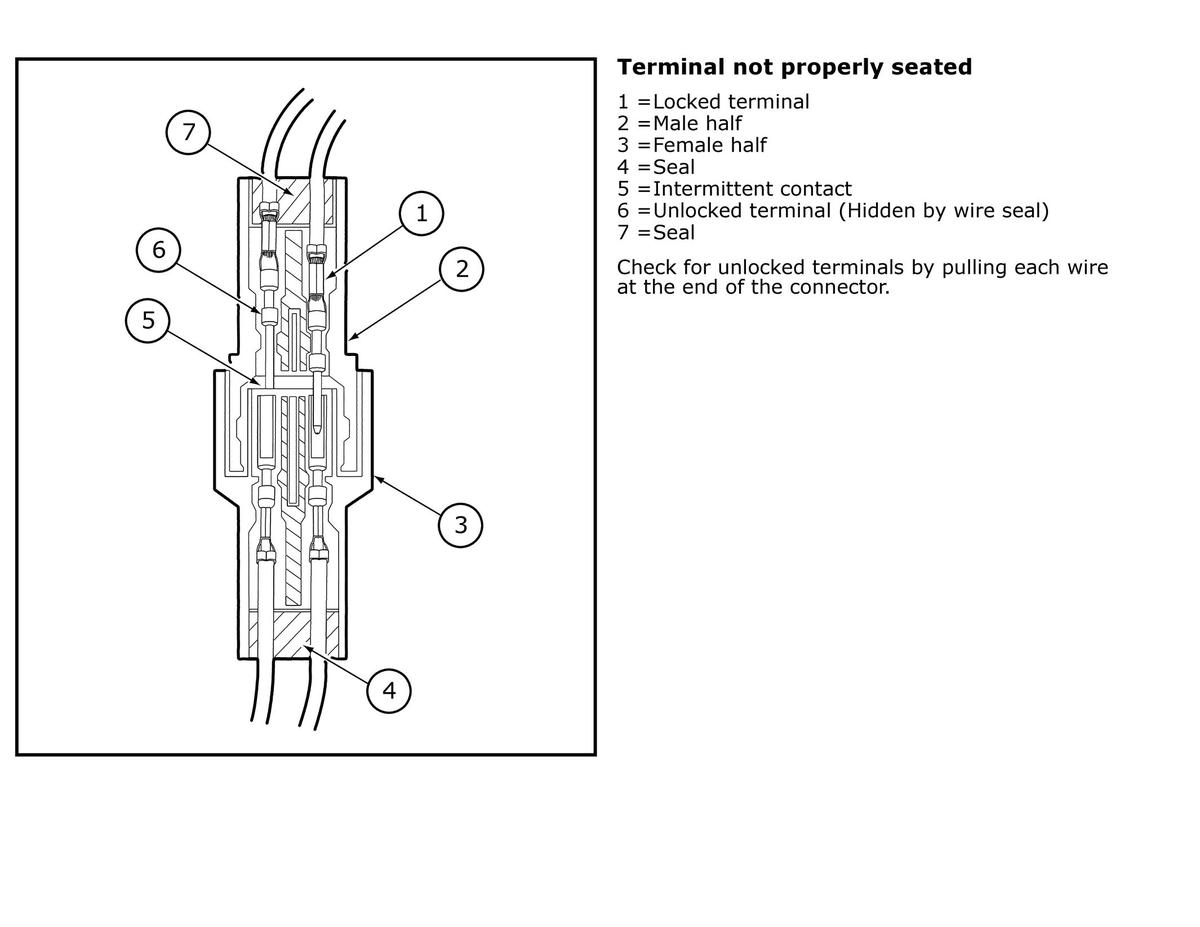

GFDWR213428Courtesy of FORD MOTOR COMPANY

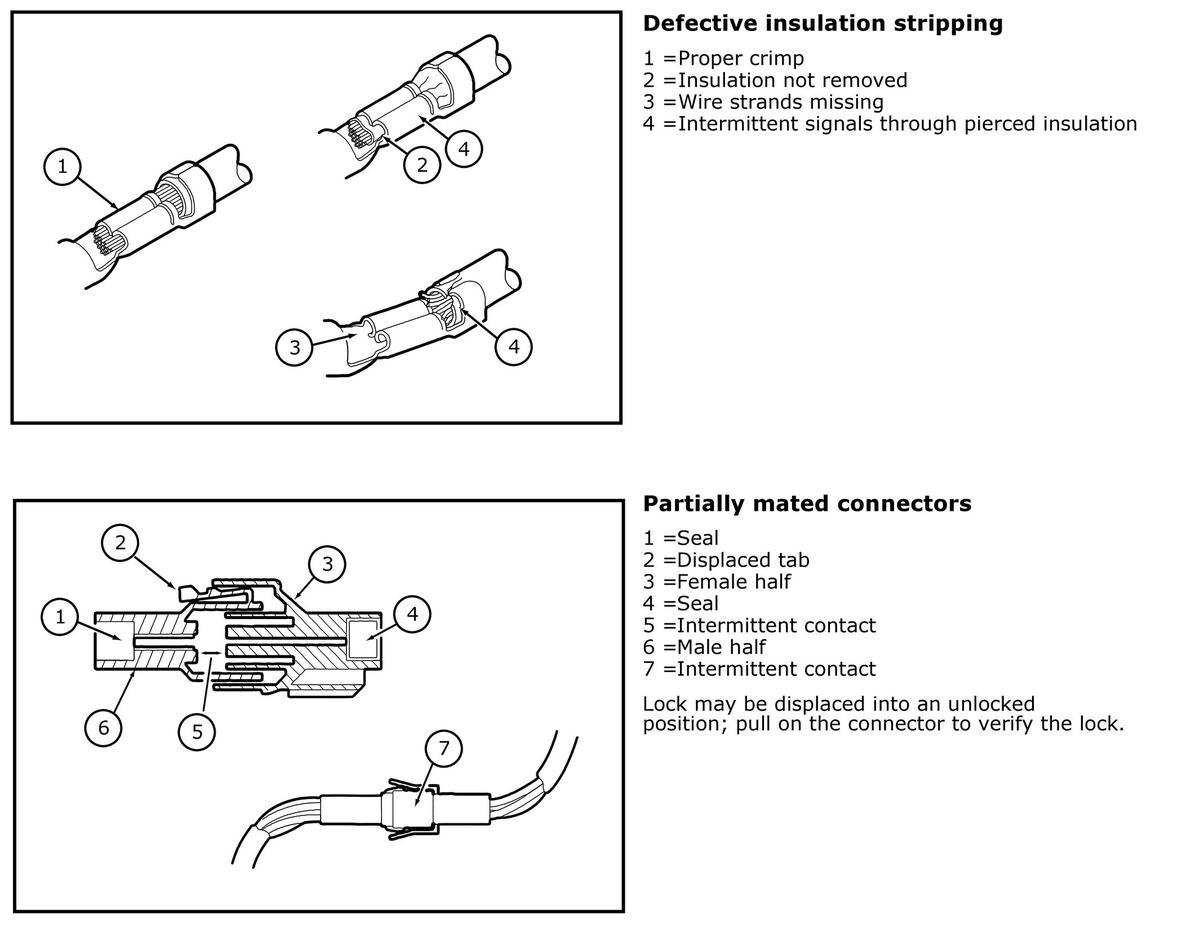

GFDWR213429Courtesy of FORD MOTOR COMPANY

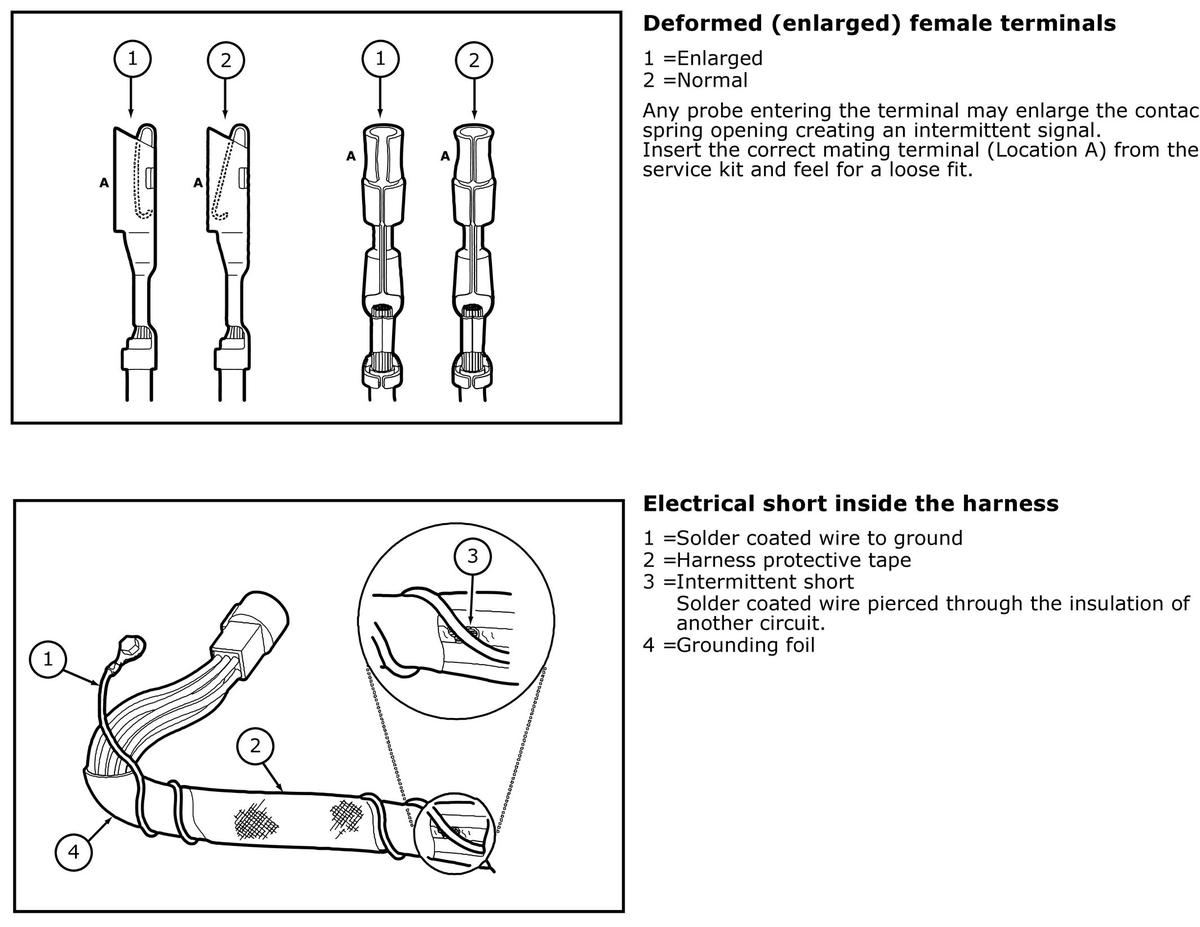

GFDWR213430Courtesy of FORD MOTOR COMPANY

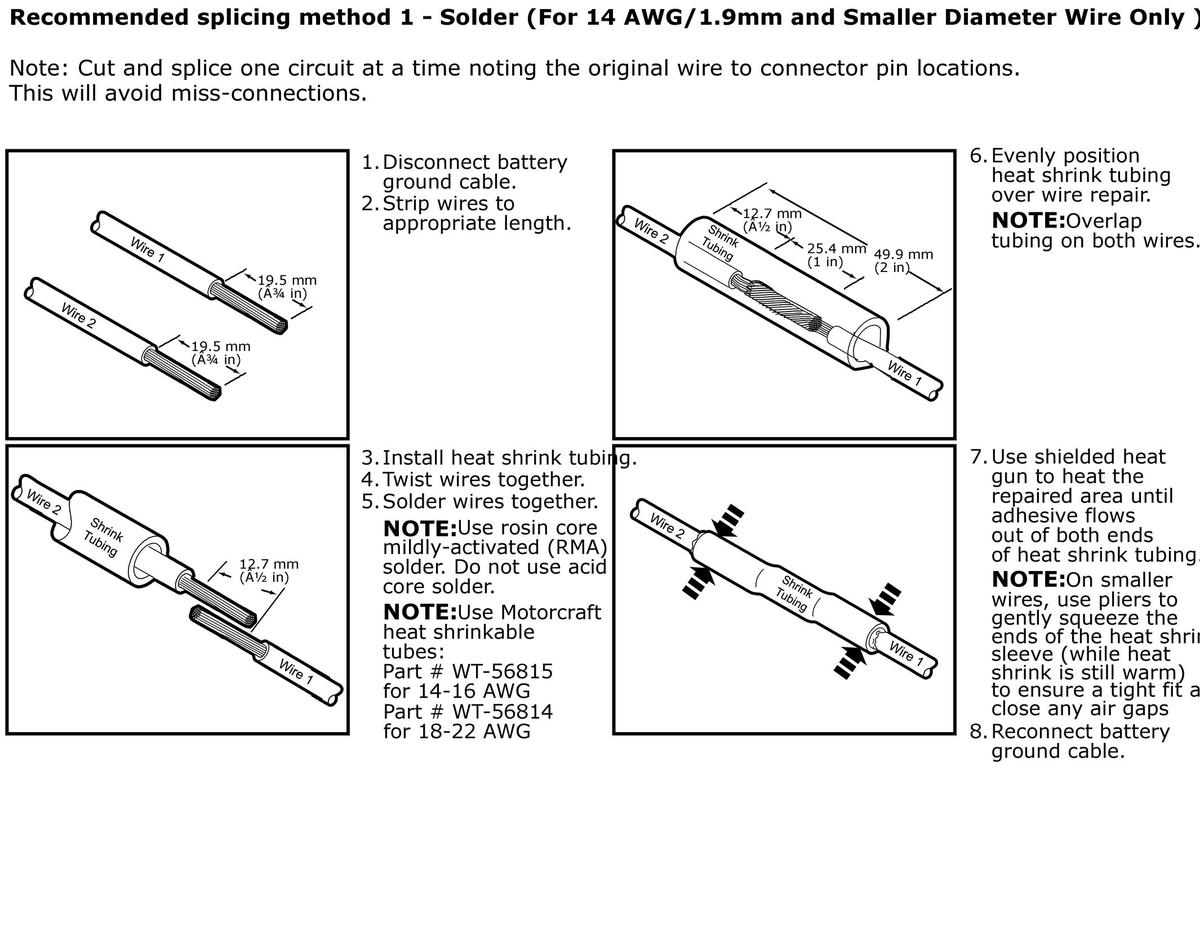

GFDWR213431Courtesy of FORD MOTOR COMPANY

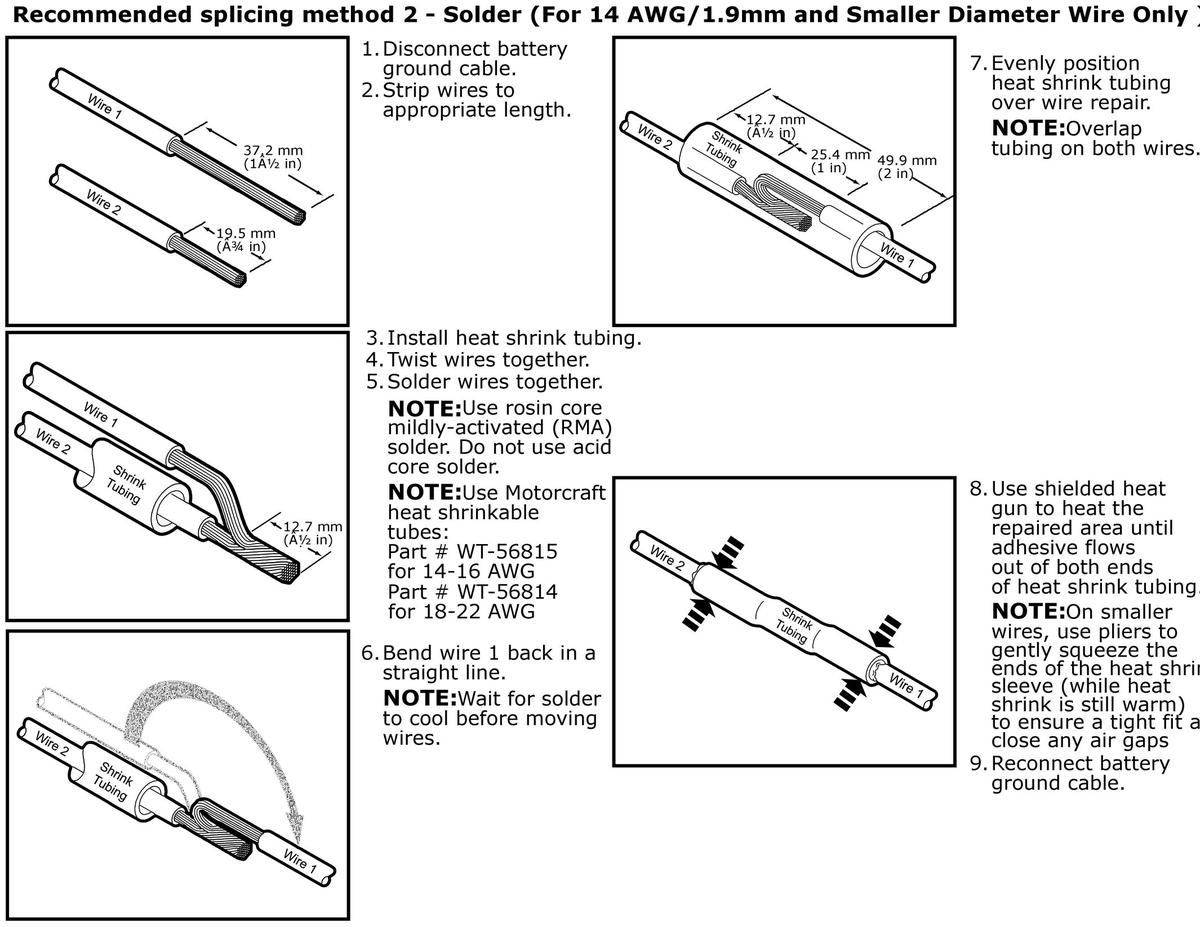

GFDWR213432Courtesy of FORD MOTOR COMPANY

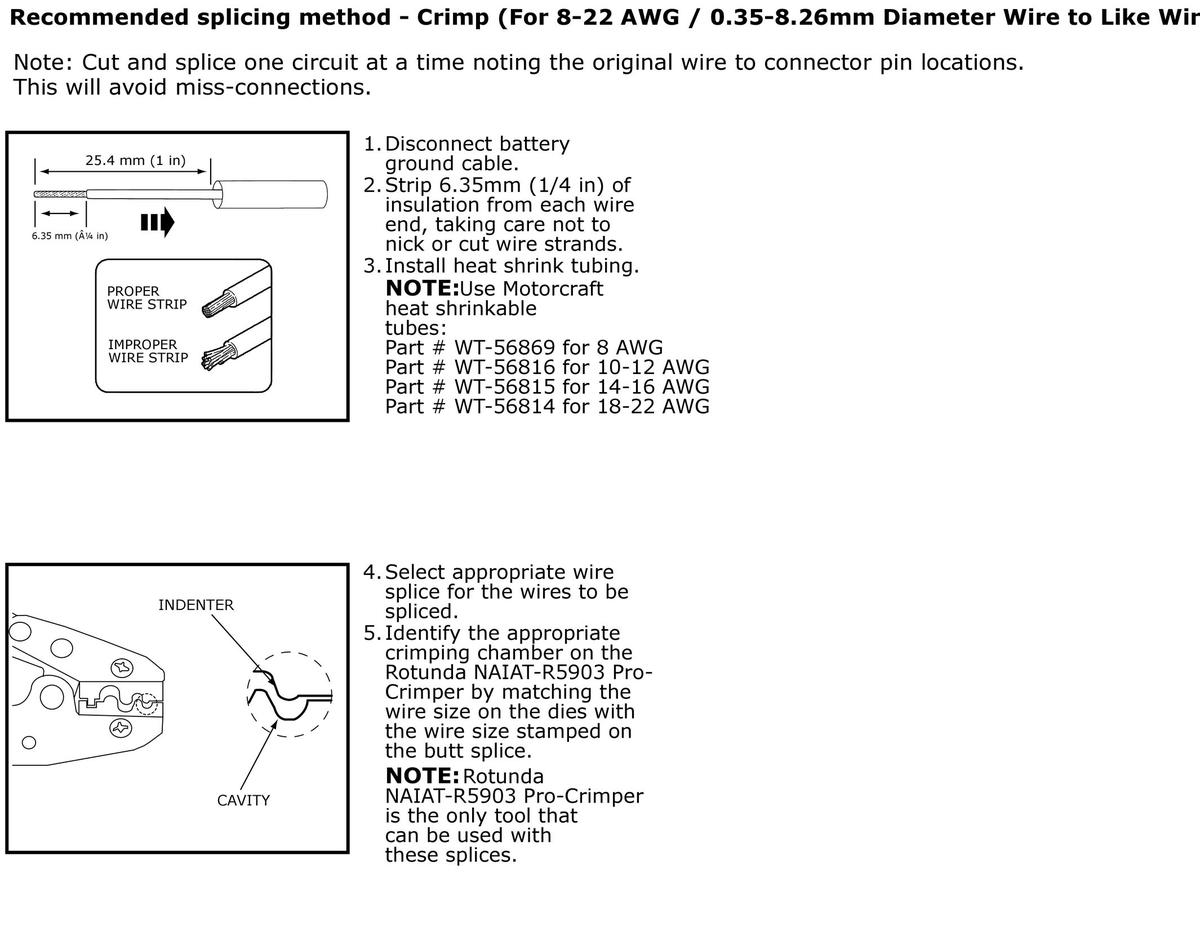

GFDWR213433Courtesy of FORD MOTOR COMPANY

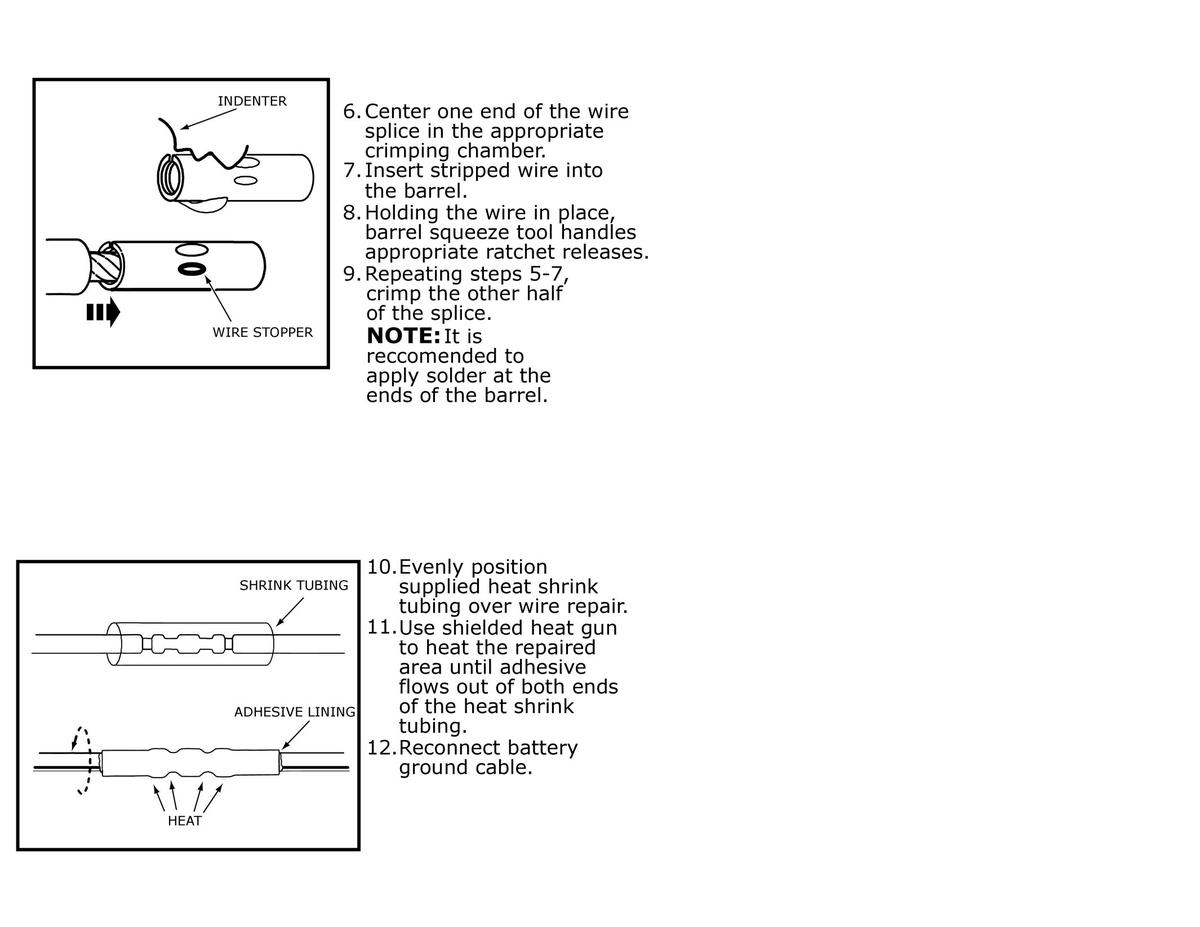

GFDWR213434Courtesy of FORD MOTOR COMPANY

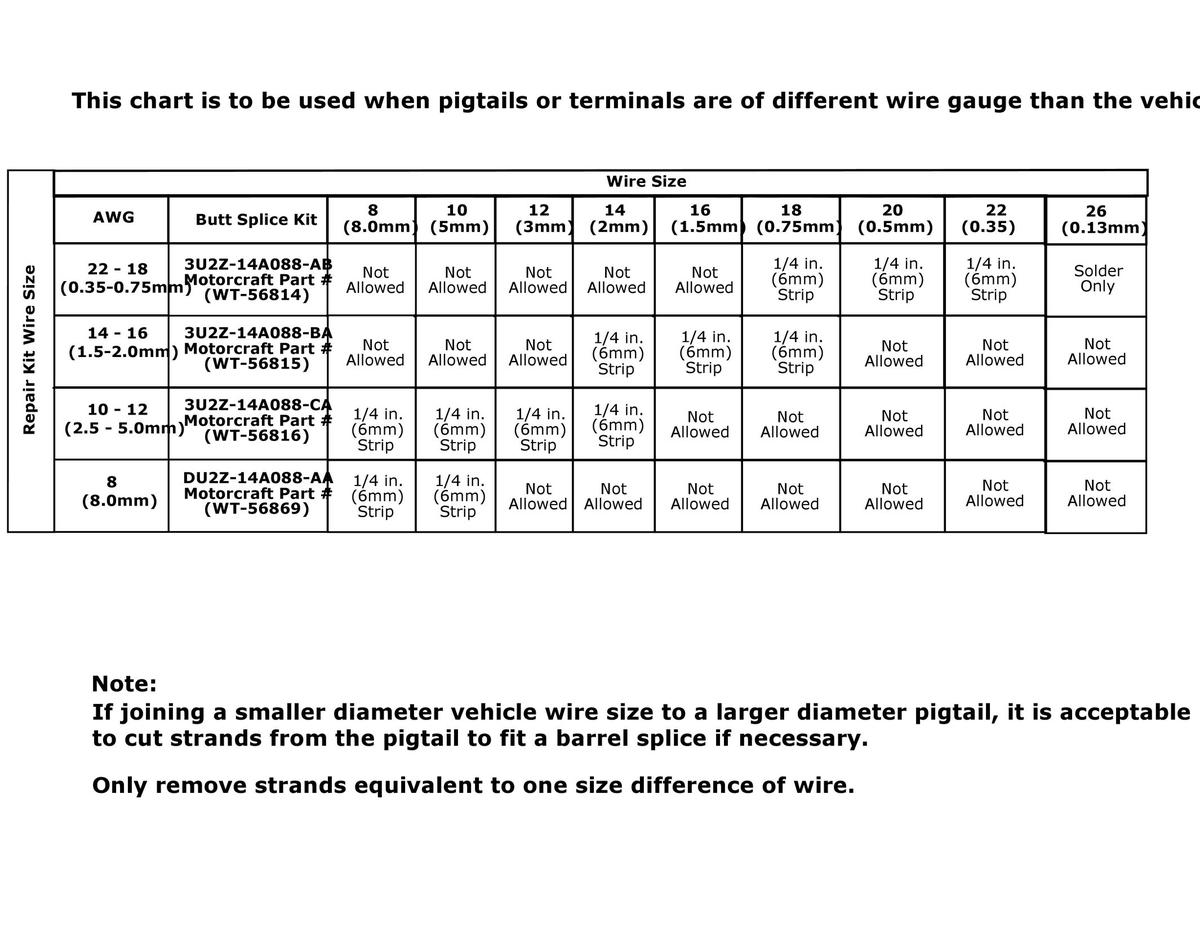

GFDWR213435Courtesy of FORD MOTOR COMPANY
