Bearing Inspection

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

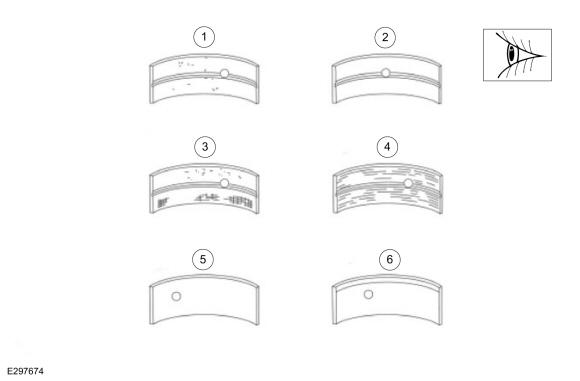

    1. Cratering - fatigue failure
    2. Spot glazing - incorrect seating
    3. Scratching - dirty engine oil
    4. Base exposed - poor lubrication
    5. Both edges worn - journal damaged
    6. One edge worn - journal tapered or bearing not seated
GFD705547Courtesy of FORD MOTOR COMPANY
