Gear Shift Module (GSM): Installation
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-

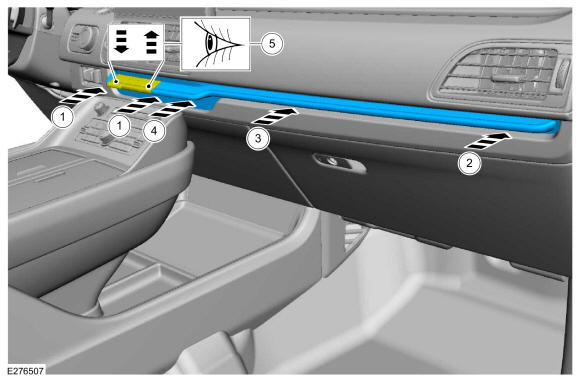

- Seat both sides of the ambient light bar around the GSM.
- Seat the passenger side of the ambient light bar.
- Seat the center right of the ambient light bar.
- Seat the center left of the ambient light bar.
- Verify the P and D buttons move up and down freely.
 Courtesy of FORD MOTOR COMPANY
|
