Body Control Module (BCM): Removal
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- If installing a new BCM, connect a battery charger to the battery to make sure it is charged to maintain proper battery voltage. Refer to: Battery Charging .
-
NOTE: Before replacing the BCM (body control module), ensure that two correct keys are present as they will be needed to complete the PMI (programmable module installation) with the FDRS scan tool. The vehicle will not start unless two keys are present.NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced.
Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

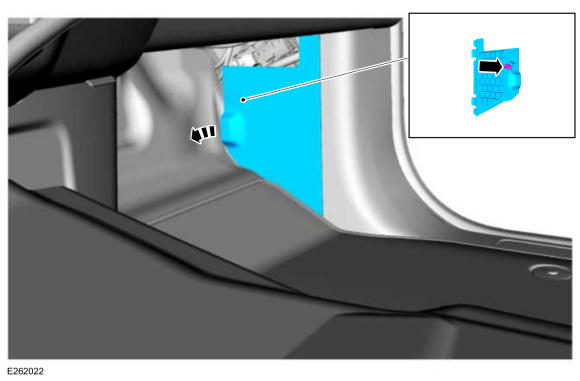

- Remove the BCM access cover.
-

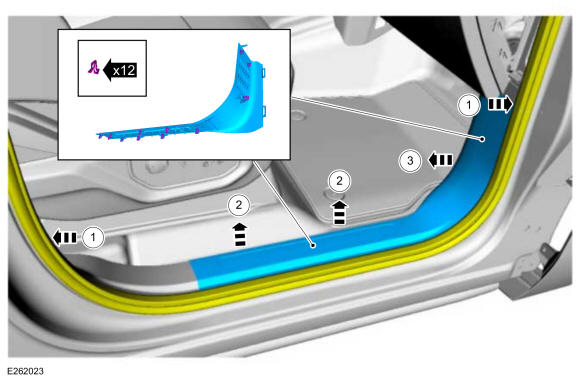

- Position aside the RH side front lower weatherstrip.
- Release the rearward clips on RH side front scuff plate.
- Release the forward clips and remove the RH side front scuff plate.

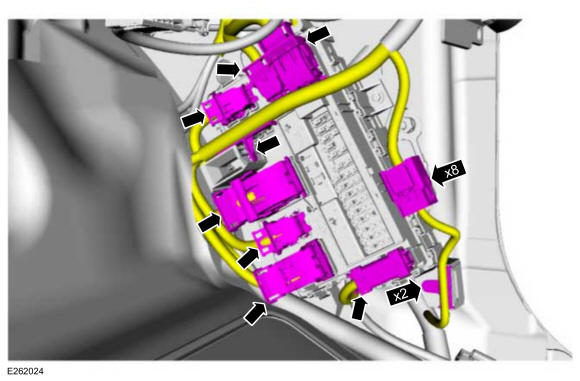

- Disconnect the electrical connectors and release the wire harness retainers.

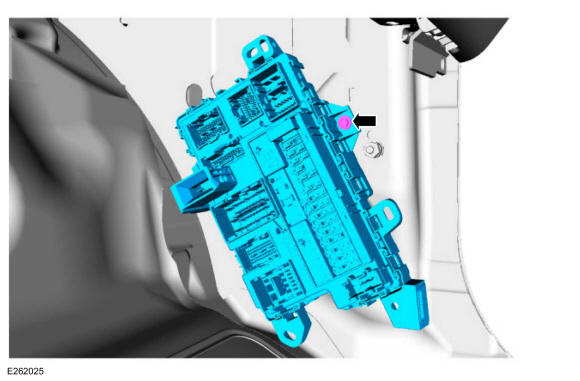

- Remove the screw and the BCM.
