Body Control Module C (BCMC): Removal
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If the BCMC (body control module C) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCMC (body control module C) is being replaced.
Using a diagnostic scan tool, begin the PMI process for the BCMC following the on-screen instructions.
- Disconnect the battery. Refer to: Battery Disconnect and Connect .

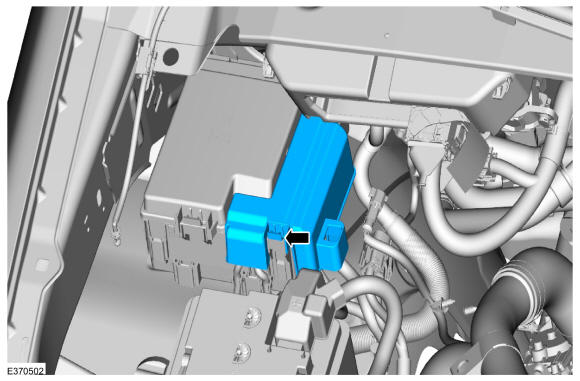

- Remove the BCMC side cover.
-
NOTE: By vehicle trim levels, there may be more or less wiring connectors.
Remove the nuts and the wire connectors.
Torque: 93 lb.in (10.5 Nm)

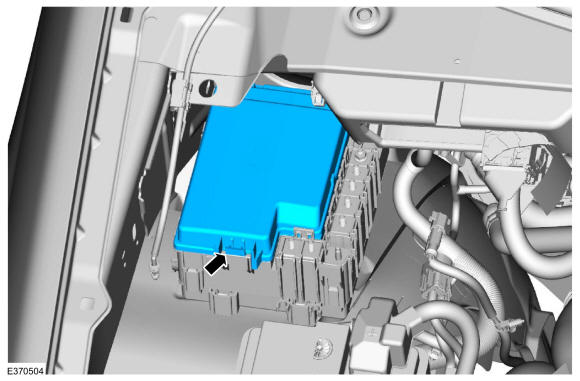

- Remove the BCMC top cover.

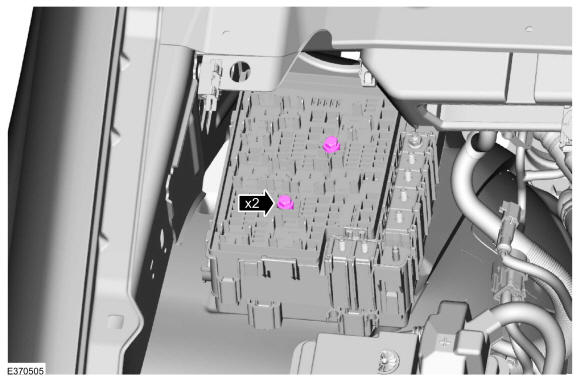

- Fully loosen the BCMC bolts.

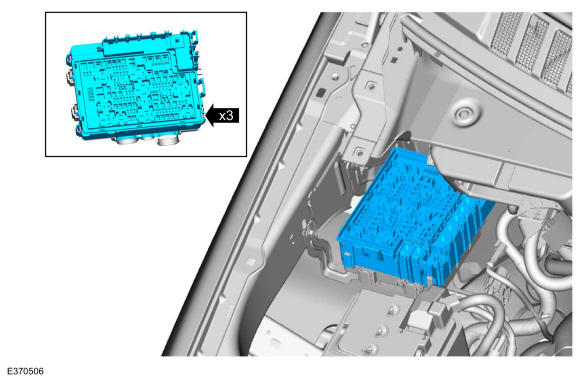

- Release the clips and lift up the BCMC to access the connectors.

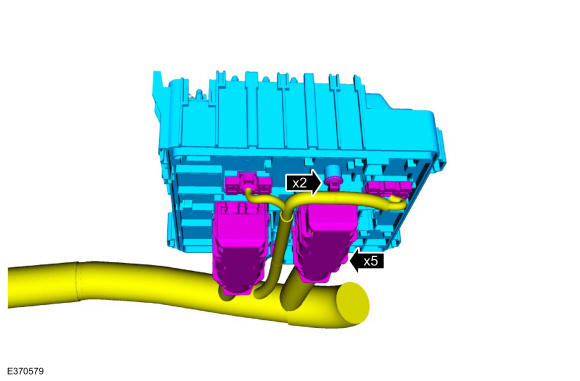

- Disconnect the connectors and remove the BCMC.
