Image Processing Module A (IPMA) Camera: Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

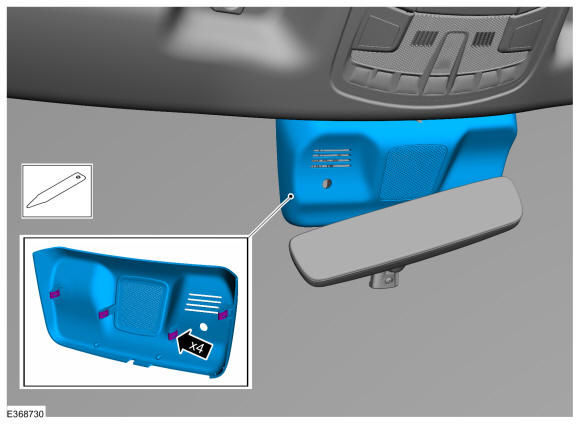

  1. Remove the rain sensor cover.
    GFD708333Courtesy of FORD MOTOR COMPANY

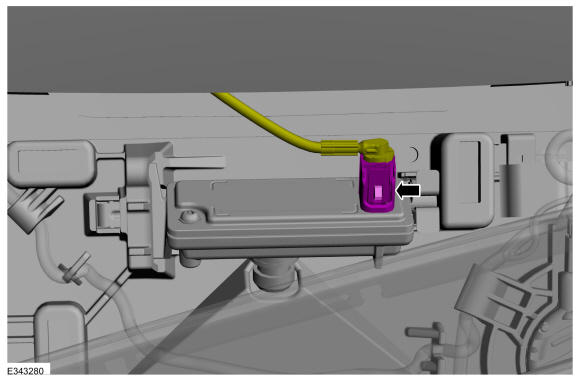

  2. Disconnect the IPMA camera electrical connector.
    GFD708334Courtesy of FORD MOTOR COMPANY

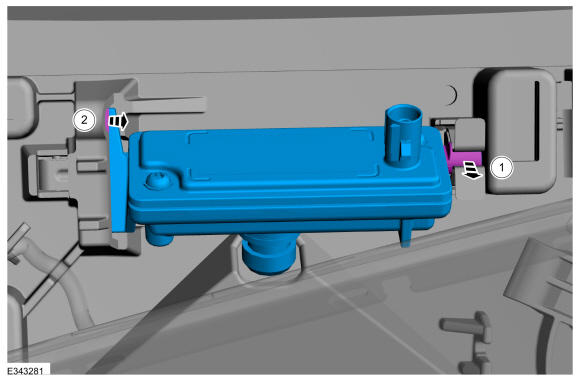

    1. Release the tab.
    2. Release the tab and remove the IPMA camera.
GFD708335Courtesy of FORD MOTOR COMPANY
