Side Obstacle Detection Control Module D (SODCMD): Removal
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: Front Bumper Cover .

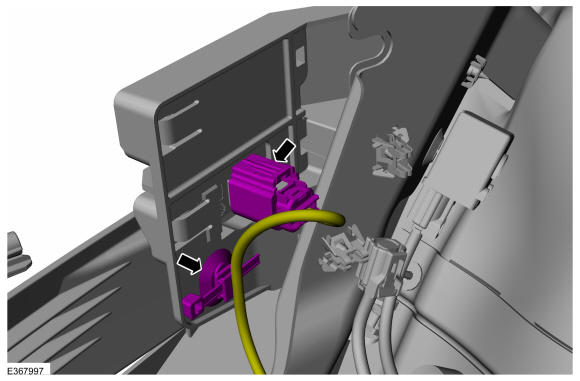

- Disconnect the electrical connector, retainer and position aside the wiring harness.

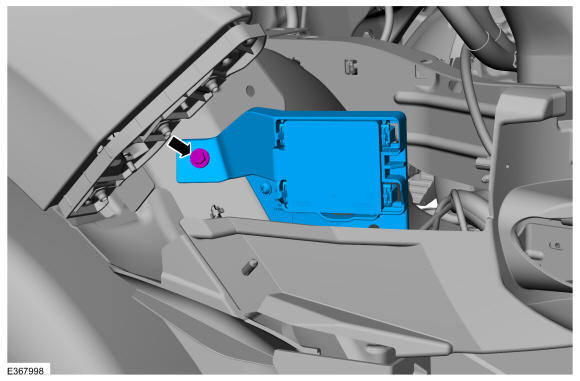

- Remove the screw and SODCMD bracket.
Torque: 13 lb.in (1.5 Nm)

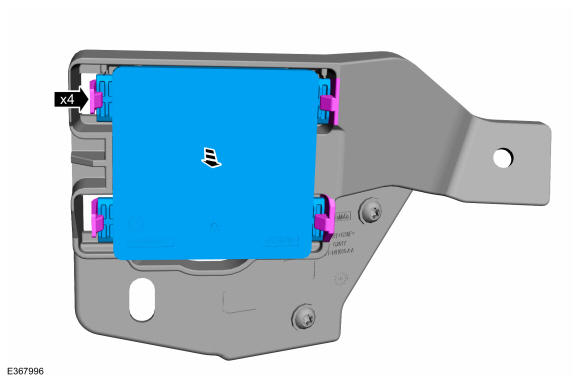

- Release the tabs and remove the SODCMD.
