Piston Selection
WARNING: This page is about a different car, the 2022 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Check
NOTE:
Refer to the appropriate Engine article
for the specifications.
-
NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

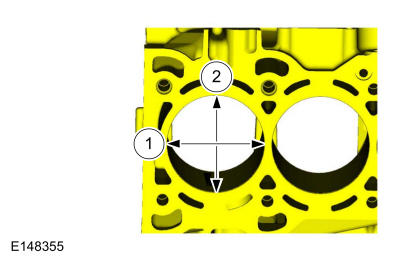

- Measure the cylinder bore in 2 directions.
- Select a piston based on the cylinder bore.
