Fuel Pump Driver Module (FPDM): Installation

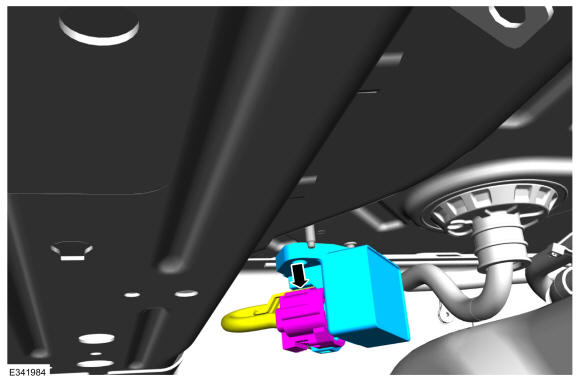

  1. Connect the fuel pump driver module electrical connector.
    GFD644367Courtesy of FORD MOTOR COMPANY

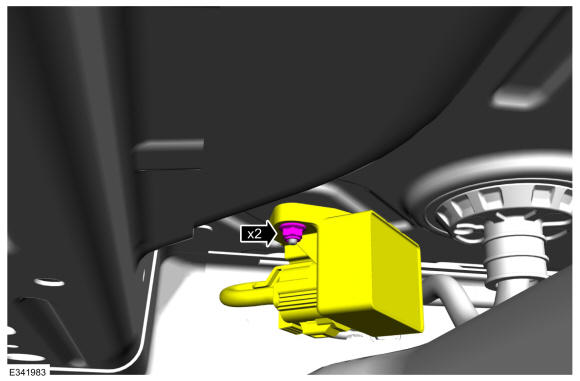

  2. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.

    Torque: 36 lb.in (4.1 Nm)

    GFD644366Courtesy of FORD MOTOR COMPANY

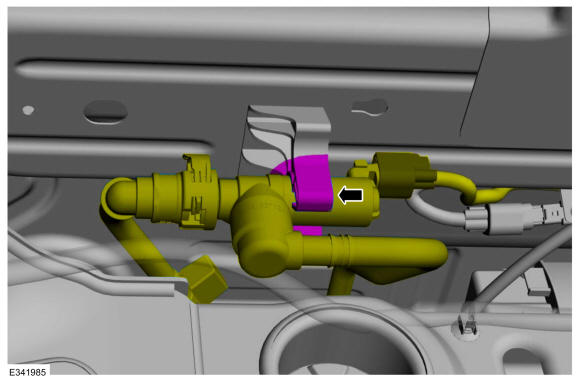

  3. Position back the EVAP blocking valve and hoses.
GFD644365Courtesy of FORD MOTOR COMPANY
