System Diagram

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

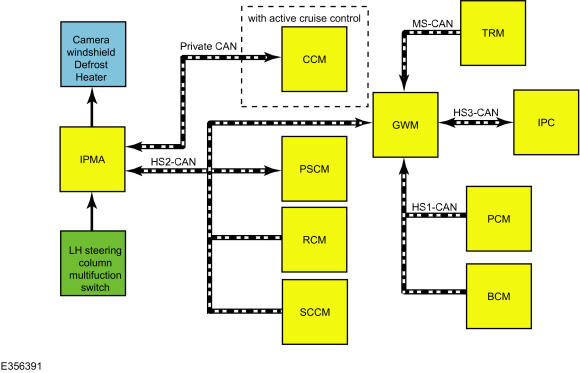

GFD674724Courtesy of FORD MOTOR COMPANY
