Side Obstacle Detection Control Module (SODCM): Removal

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Side obstacle detection control module

NOTE: This step is only necessary if the SODL or SODR is being replaced.

NOTE: This procedure can be used for all locations of the component.

Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.
Remove the rear bumper cover. Refer to: Rear Bumper Cover .

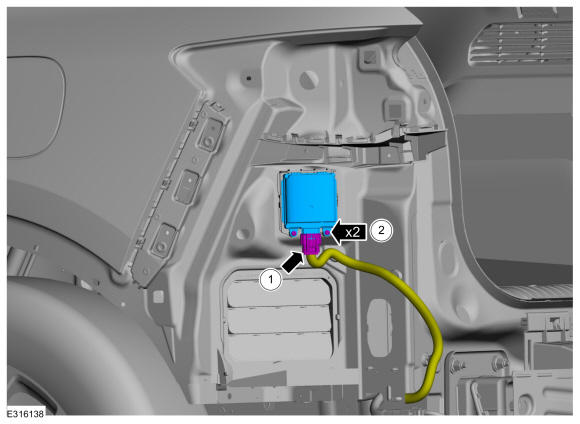

Remove the SODL or SODR.
1. Disconnect the SODL or SODR electrical connector.
2. Remove the SODL or SODR screws.
Courtesy of FORD MOTOR COMPANY

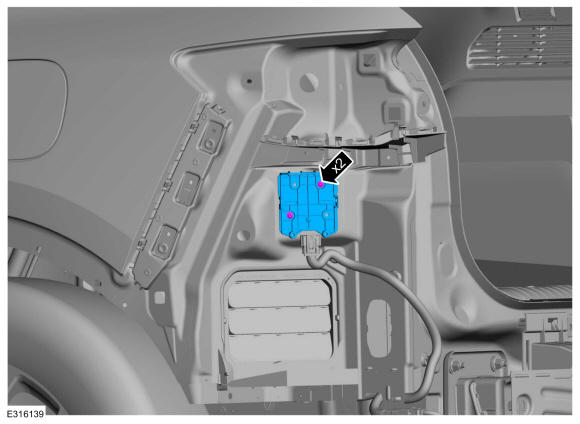

Side obstacle detection control module bracket
Remove the SODL or SODR.
If required. Remove the screws and the SODL or SODR bracket.

Courtesy of FORD MOTOR COMPANY
