Connector End View C1551B - Powertrain Control Module (PCM)

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1551B POWERTRAIN CONTROL MODULE (PCM)   14290 part# N/A Not Available

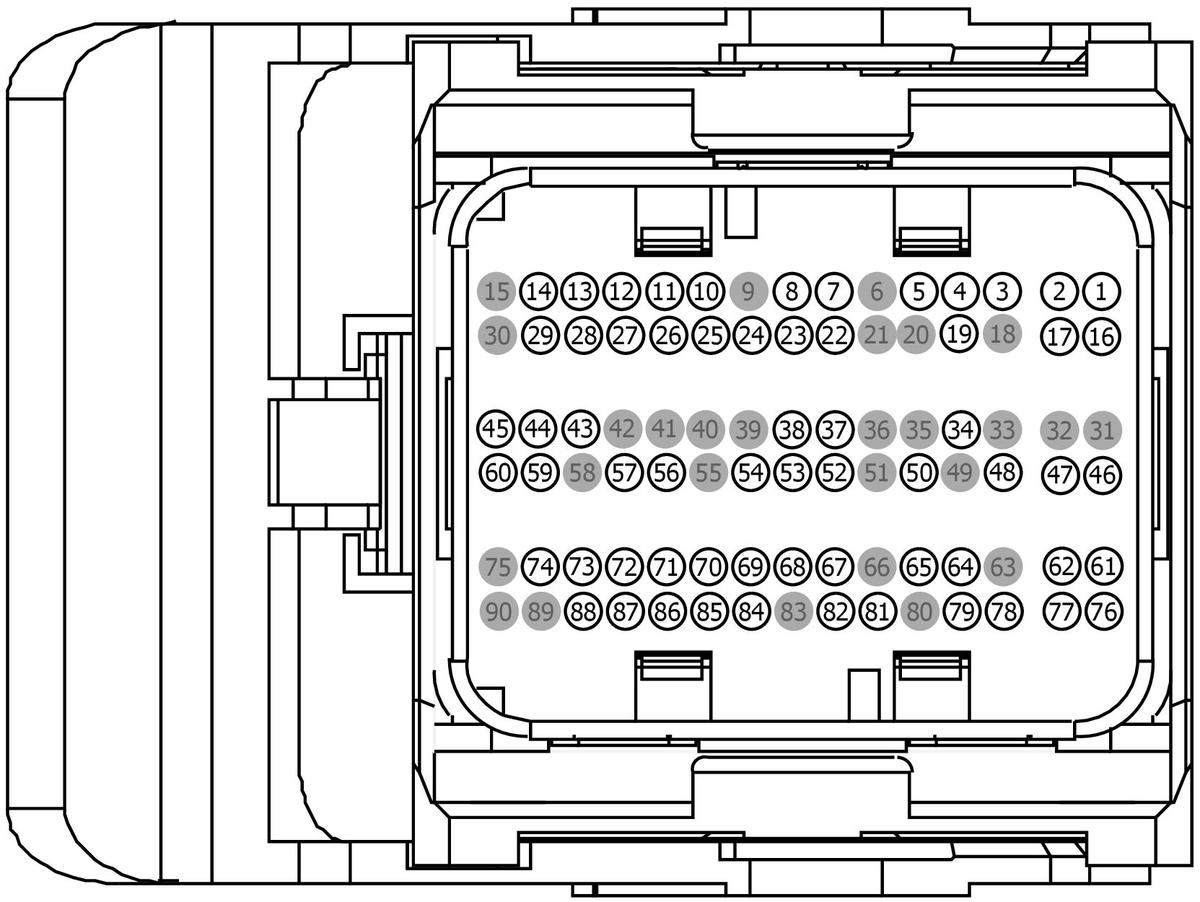

GFDWR168120Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
GU5T-14474-DA Not Available
BU5T-14474-AB DU2Z-14474-CA 0.64
BU5T-14474-BC DU2Z-14474-CA 0.64
BU5T-14474-BB DU2Z-14474-CA 0.64
GU5T-14474-CA DU2Z-14474-BA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CBB06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER   GU5T-14474-DA
2 CBB06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER   GU5T-14474-DA
3 VE225 (YE-OG) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)   BU5T-14474-AB
4 CE420 (GY-OG) 18 CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC)   BU5T-14474-BB
5 CPLB5 (BU-GY) 22 CTRL MOD. - FUEL DOOR REF   BU5T-14474-AB
6 * * Not Used   N/A
7 CE436 (VT-RD) 22 CTRL MOD. -WAKE UP PCM   BU5T-14474-AB
7 CYD14 (GN) 22 CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP)   BU5T-14474-AB
8 CCB08 (VT-WH) 22 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN   BU5T-14474-AB
9 * * Not Used   N/A
10 VE761 (BN-YE) 20 SENSOR - FUEL LOW PRESSURE (FLPS)   BU5T-14474-AB
11 VE181 (WH-GN) 22 CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1   BU5T-14474-AB
11 VE181 (WH-VT) 22 CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1   BU5T-14474-AB
12 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW   BU5T-14474-AB
13 CBB24 (VT-GN) 22 FUSE - 24 OR CIRCUIT BREAKER   BU5T-14474-AB
14 CE226 (GY-RD) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +   BU5T-14474-AB
15 * * Not Used   N/A
16 CBB06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER   GU5T-14474-DA
17 SBB05 (GY-OG) 18 FUSE - 5 OR CIRCUIT BREAKER   GU5T-14474-CA
18 * * Not Used   N/A
19 CH302 (WH-BN) 22 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)   BU5T-14474-AB
20 * * Not Used   N/A
21 * * Not Used   N/A
22 CPK34 (GN-OG) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +   BU5T-14474-AB
23 CES09 (VT-OG) 22 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +   BU5T-14474-AB
24 VE716 (YE) 20 SENSOR - ENGINE COOLANT TEMPERATURE (ECT)   BU5T-14474-AB
24 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT)   BU5T-14474-AB
25 VE759 (GN-BN) 20 SENSOR - ENGINE COOLANT TEMPERATURE 2 (ECT2)   BU5T-14474-AB
26 RE407 (YE-GY) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)   BU5T-14474-AB
27 VDB04 (BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH   BU5T-14474-AB
28 RE407 (YE-RD) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)   BU5T-14474-AB
29 RE226 (GN-WH) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -   BU5T-14474-AB
30 * * Not Used   N/A
31 * * Not Used   N/A
32 * * Not Used   N/A
33 * * Not Used   N/A
34 CE114 (GN-BU) 18 CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)   BU5T-14474-BC
35 * * Not Used   N/A
36 * * Not Used   N/A
37 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)   BU5T-14474-AB
38 CET34 (BN-GN) 22 SWITCH - TOW MODE CONTROL (TOWS)   BU5T-14474-AB
39 * * Not Used   N/A
40 * * Not Used   N/A
41 * * Not Used   N/A
42 * * Not Used   N/A
43 RE407 (YE-VT) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)   BU5T-14474-AB|BU5T-14474-BC
43 RE407 (YE) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)   BU5T-14474-AB|BU5T-14474-BC
44 CDC54 (WH-GN) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)   BU5T-14474-AB
45 VE274 (BU-BN) 18 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE CONTROL VALVE (TPCV)   BU5T-14474-BB
46 GD124 (BK-VT) 18 GROUND - FENDER FRONT RIGHT # 2ND POINT   GU5T-14474-CA
47 GD124 (BK-VT) 18 GROUND - FENDER FRONT RIGHT # 2ND POINT   GU5T-14474-CA
48 CE622 (BU-RD) 18 RELAY - REFUELING CONTROL   BU5T-14474-BC
49 * * Not Used   N/A
50 CE204 (WH-BU) 22 CTRL MOD. - POWERTRAIN # FUEL CAP OFF INDICATOR LAMP (FCIL)   BU5T-14474-AB
51 * * Not Used   N/A
52 VE518 (BN-WH) 22 MONITOR - FUEL PUMP (FPM)   BU5T-14474-AB
53 CET43 (GY) 22 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)   BU5T-14474-AB
54 CPL24 (YE-BU) 22 SWITCH - FUEL FILLER DOOR # RELEASE   BU5T-14474-AB
55 * * Not Used   N/A
56 VE701 (BN-BU) 22 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)   BU5T-14474-AB
57 VE922 (VT-GN) 22 TRANSDUCER - FUEL TANK PRESSURE (FTPT)   BU5T-14474-AB
58 * * Not Used   N/A
59 VEC03 (WH-RD) 22 CTRL MOD. - COOLING FAN CONTROL VARIABLE (FC-V)   BU5T-14474-AB
60 CE237 (BN-RD) 20 CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM)   BU5T-14474-AB
61 GD124 (BK-VT) 18 GROUND - FENDER FRONT RIGHT # 2ND POINT   GU5T-14474-CA
62 GD124 (BK-VT) 18 GROUND - FENDER FRONT RIGHT # 2ND POINT   GU5T-14474-CA
63 * * Not Used   N/A
64 CE464 (VT-BN) 18 CTRL MOD. - POWERTRAIN # VACUUM PUMP CONTROL (OBD_PMP)   BU5T-14474-BB
65 CET42 (GN-VT) 22 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)   BU5T-14474-AB
66 * * Not Used   N/A
67 LE424 (GY-YE) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)   BU5T-14474-AB
68 VE702 (BU-WH) 22 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)   BU5T-14474-AB
69 VH433 (VT-OG) 22 TRANSDUCER - A/C PRESSURE (ACPT) +   BU5T-14474-AB
70 LE230 (BN-BU) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)   BU5T-14474-AB
71 LE137 (BU-GY) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)   BU5T-14474-AB
72 RE137 (YE-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)   BU5T-14474-AB
73 RE407 (GY-BN) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)   BU5T-14474-AB
74 CYE07 (WH-OG) 22 BATTERY ISOLATION PWM   BU5T-14474-AB
75 * * Not Used   N/A
76 GD124 (BK-VT) 18 GROUND - FENDER FRONT RIGHT # 2ND POINT   GU5T-14474-CA
77 GD124 (BK-VT) 18 GROUND - FENDER FRONT RIGHT # 2ND POINT   GU5T-14474-CA
78 CDC12 (YE) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)   BU5T-14474-AB
79 VE462 (WH-BN) 18 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE   BU5T-14474-BB
80 * * Not Used   N/A
81 LE424 (YE-OG) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)   BU5T-14474-AB
82 LE424 (YE-GN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)   BU5T-14474-AB
83 * * Not Used   N/A
84 VE750 (GN-RD) 22 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)   BU5T-14474-AB
85 LE424 (BN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)   BU5T-14474-AB
86 LE136 (GN-BN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)   BU5T-14474-AB
87 RE136 (VT-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)   BU5T-14474-AB
88 RE407 (YE-VT) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)   BU5T-14474-AB
89 * * Not Used   N/A
90 * * Not Used   N/A
