Power Transfer Unit (PTU) External Components

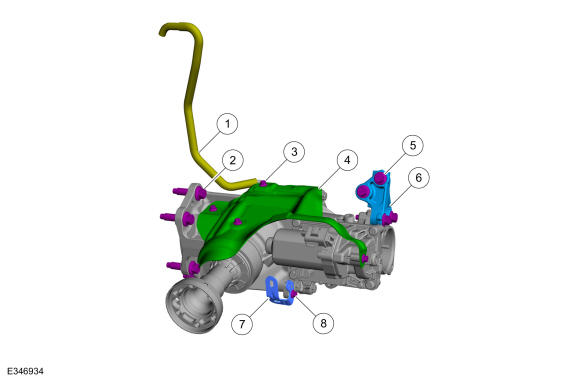

GFD752276Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 70347034 Vent tube.
2 W719766W719766 PTU to transmission bolt. One-time use.
3 W500210W500210 Heat shield bolt
4 7F4697F469 Heat shield
5 W719768W719768 PTU to engine bracket bolts.
6 7B6647B664 PTU to engine bracket.
7 7B6967B696 Wiring harness bracket.
8 W500210W500210 Wiring harness bracket bolt.
