Image Processing Module A (IPMA): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Remove the RH side loadspace trim panel. Refer to: Loadspace Trim Panel .

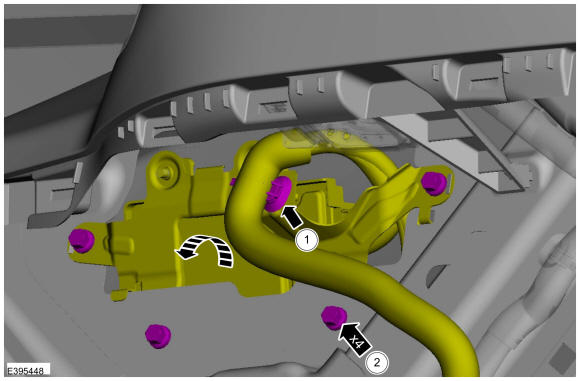

1. Release the retainer.
2. Remove the bolts and IPMA brackets and position aside the bracket.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

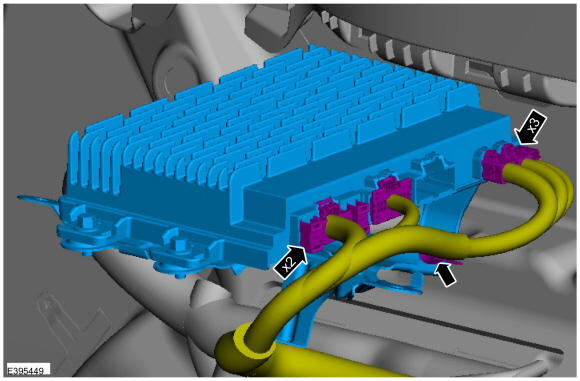

Release the retainer and disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

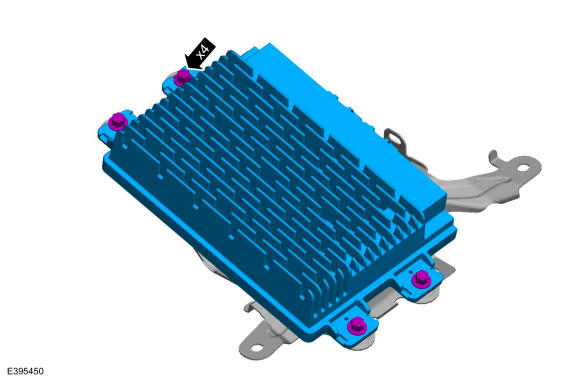

Remove the bolts and separate the IPMA from bracket.
Torque: 44 lb.in (5 Nm)
