Pedestrian Alert Control Module (PACM): Removal

NOTE: Removal steps in this procedure may contain installation details.

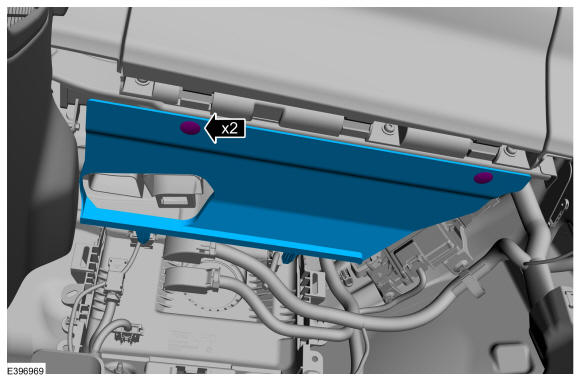

  1. Remove the pin-type retainers and the RH lower instrument panel closeout trim panel.
    GFD752903Courtesy of FORD MOTOR COMPANY

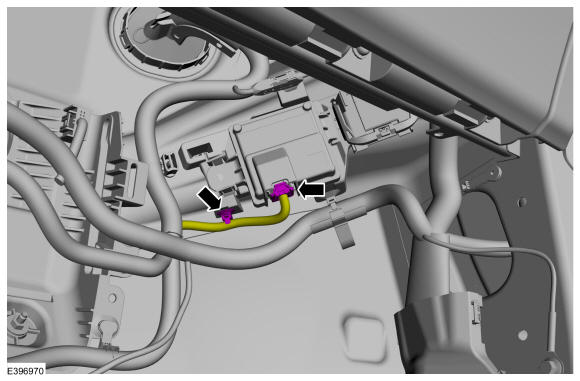

  2. Disconnect the electrical connector and release the wiring guide from the bracket.
    GFD752904Courtesy of FORD MOTOR COMPANY

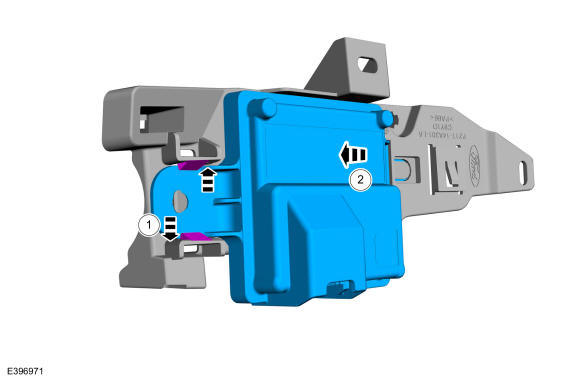

    1. Release the tabs.
    2. Move forward and remove the PACM.
GFD752905Courtesy of FORD MOTOR COMPANY
