Driver Door Window Control Switch: Removal

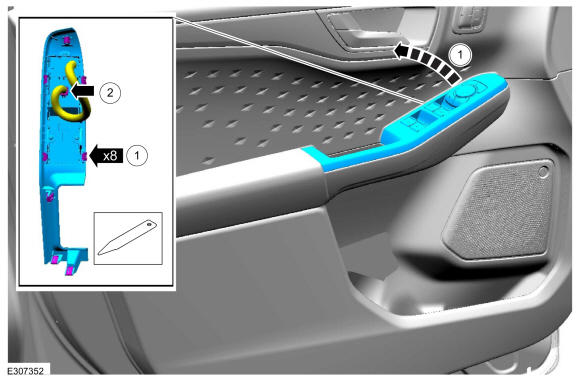

Remove the driver door window control switch and bezel as an assembly.
1. Starting from the front, release the locking tabs from the driver door window control switch bezel assembly.Use the General Equipment: Interior Trim Remover
2. Disconnect the electrical connector and remove the driver door window control switch and bezel as an assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

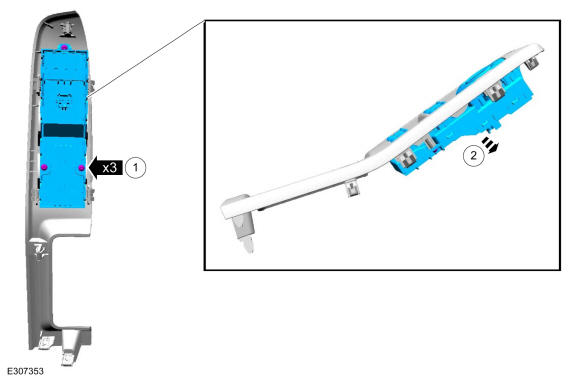

Remove the driver door window control switch.
1. Remove the screws from driver door window control switch.
2. Remove the driver door window control switch from the bezel assembly.

Courtesy of FORD MOTOR COMPANY
