Connector End View C1381B - Powertrain Control Module (PCM)

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1381B POWERTRAIN CONTROL MODULE (PCM)   14290 part# N/A Not Available

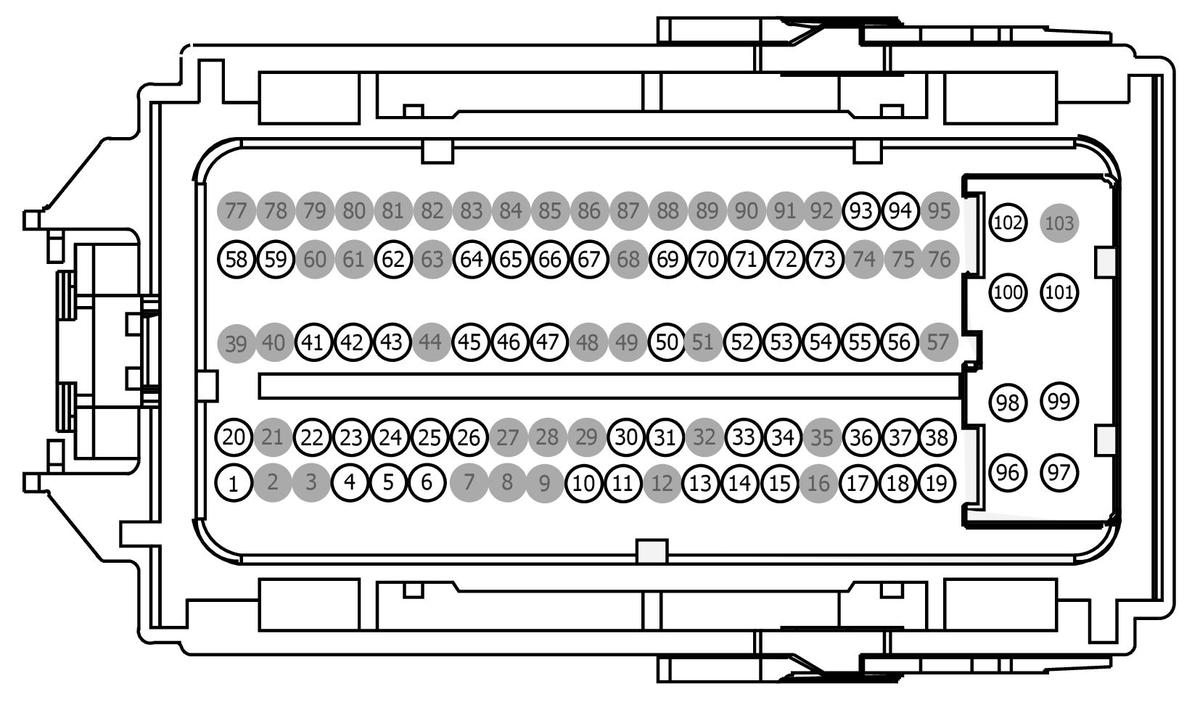

GFDWR168079Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BB DU2Z-14474-CA 0.64
BU5T-14474-AB DU2Z-14474-CA 0.64
BU5T-14474-UA DU2Z-14474-DA 1.50
7C3T-14474-EA DU2Z-14474-DA 1.50
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE113 (WH-BN) 18 CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)   BU5T-14474-BB
2 * * Not Used   N/A
3 * * Not Used   N/A
4 RE407 (BU-GN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)   BU5T-14474-BB
5 CET42 (GN-VT) 22 SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)   BU5T-14474-AB
6 CET43 (GY) 22 SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)   BU5T-14474-AB
7 * * Not Used   N/A
8 * * Not Used   N/A
9 * * Not Used   N/A
10 CCB08 (VT-WH) 22 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN   BU5T-14474-AB
11 CES09 (VT-OG) 22 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +   BU5T-14474-AB
12 * * Not Used   N/A
13 LE424 (YE-GN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)   BU5T-14474-AB
14 LE230 (BN-BU) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)   BU5T-14474-AB
15 LE424 (BU-BN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)   BU5T-14474-AB
16 * * Not Used   N/A
17 VE824 (YE-GN) 20 SENSOR - BOOST PRESSURE   BU5T-14474-AB
18 RE136 (VT-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)   BU5T-14474-AB
19 RE137 (YE-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)   BU5T-14474-AB
20 VE530 (GY-BN) 20 CTRL MOD. - AUXILIARY WATER PUMP   BU5T-14474-AB
21 * * Not Used   N/A
22 CE114 (GN-BN) 18 CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)   BU5T-14474-BB
23 CE226 (YE-BU) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +   BU5T-14474-AB
24 VE922 (VT-RD) 22 TRANSDUCER - FUEL TANK PRESSURE (FTPT)   BU5T-14474-AB
25 CE237 (BN-WH) 20 CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM)   BU5T-14474-AB
26 RE407 (YE-VT) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)   BU5T-14474-AB
27 * * Not Used   N/A
28 * * Not Used   N/A
29 * * Not Used   N/A
30 VH433 (VT-OG) 22 TRANSDUCER - A/C PRESSURE (ACPT) +   BU5T-14474-AB
31 VE750 (GN-BU) 22 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)   BU5T-14474-AB
32 * * Not Used   N/A
33 VE701 (YE-OG) 22 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)   BU5T-14474-AB
34 VE702 (BU-WH) 22 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)   BU5T-14474-AB
35 * * Not Used   N/A
36 RE407 (BU-OG) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)   BU5T-14474-AB
37 LE136 (GN-BN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)   BU5T-14474-AB
38 LE137 (BU-GY) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)   BU5T-14474-AB
39 * * Not Used   N/A
40 * * Not Used   N/A
41 CET85 (GY-OG) 20 CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP CONTROL   BU5T-14474-AB
42 RE226 (GN) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -   BU5T-14474-AB
43 VEC03 (WH-BU) 22 CTRL MOD. - COOLING FAN CONTROL VARIABLE (FC-V)   BU5T-14474-AB
44 * * Not Used   N/A
45 CPK34 (GN-WH) 22 CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 +   BU5T-14474-AB
46 VYE05 (BU) 22 TRANSMISSION CAN +   BU5T-14474-AB
47 VE181 (WH-RD) 22 CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1   BU5T-14474-AB
48 * * Not Used   N/A
49 * * Not Used   N/A
50 VET86 (YE-GY) 20 MONITOR - AUTOMATIC TRANSMISSION FLUID PUMP   BU5T-14474-AB
51 * * Not Used   N/A
52 CE436 (VT-OG) 22 CTRL MOD. -WAKE UP PCM   BU5T-14474-AB
53 CR167 (YE-RD) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)   BU5T-14474-AB
54 VE518 (BN-WH) 22 MONITOR - FUEL PUMP (FPM)   BU5T-14474-AB
55 RE242 (GN-RD) 18 CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (HEGO_RTN)   BU5T-14474-BB
56 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT)   BU5T-14474-AB
57 * * Not Used   N/A
58 VE225 (BU-RD) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)   BU5T-14474-AB
59 VE462 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE   BU5T-14474-BB
60 * * Not Used   N/A
61 * * Not Used   N/A
62 CH302 (WH-BN) 22 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)   BU5T-14474-AB
63 * * Not Used   N/A
64 CBB24 (VT-GN) 22 FUSE - 24 OR CIRCUIT BREAKER   BU5T-14474-AB
65 VYE06 (VT-BN) 22 TRANSMISSION CAN -   BU5T-14474-AB
66 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW   BU5T-14474-AB
67 VDB04 (BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH   BU5T-14474-AB
68 * * Not Used   N/A
69 CDC54 (WH-GN) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)   BU5T-14474-AB
70 CE171 (YE-VT) 18 CTRL MOD. - POWERTRAIN # AUXILIARY TRANSMISSION WARMUP 1 (ATWU1)   BU5T-14474-BB
71 CDC12 (YE) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)   BU5T-14474-AB
72 VE779 (YE-GN) 20 SENSOR - CRANKCASE PRESSURE   BU5T-14474-AB
73 VE761 (BN-RD) 20 SENSOR - FUEL LOW PRESSURE (FLPS)   BU5T-14474-AB
74 * * Not Used   N/A
75 * * Not Used   N/A
76 * * Not Used   N/A
77 * * Not Used   N/A
78 * * Not Used   N/A
79 * * Not Used   N/A
80 * * Not Used   N/A
81 * * Not Used   N/A
82 * * Not Used   N/A
83 * * Not Used   N/A
84 * * Not Used   N/A
85 * * Not Used   N/A
86 * * Not Used   N/A
87 * * Not Used   N/A
88 * * Not Used   N/A
89 * * Not Used   N/A
90 * * Not Used   N/A
91 * * Not Used   N/A
92 * * Not Used   N/A
93 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)   BU5T-14474-AB
94 LE152 (BN-GN) 20 CTRL MOD. - POWERTRAIN # EXHAUST PRESSURE SENSOR +   BU5T-14474-AB
95 * * Not Used   N/A
96 GD124 (BK-VT) 20 GROUND - FENDER FRONT RIGHT # 2ND POINT   N/A
97 GD124 (BK-VT) 20 GROUND - FENDER FRONT RIGHT # 2ND POINT   BU5T-14474-UA
98 GD124 (BK-VT) 20 GROUND - FENDER FRONT RIGHT # 2ND POINT   BU5T-14474-UA
99 GD124 (BK-VT) 20 GROUND - FENDER FRONT RIGHT # 2ND POINT   BU5T-14474-UA
100 CBB06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER   7C3T-14474-EA
101 CBB06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER   7C3T-14474-EA
102 CBB06 (WH-BU) 16 FUSE - 6 OR CIRCUIT BREAKER   7C3T-14474-EA
103 * * Not Used   N/A
