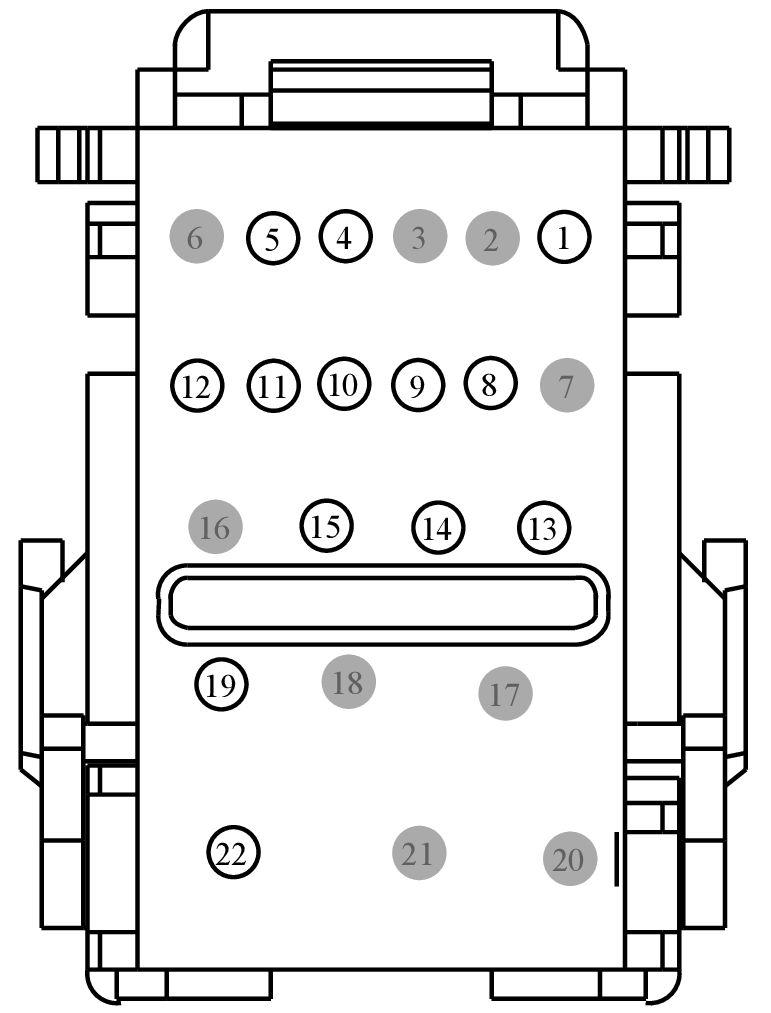

Connector End View C2280A - Body Control Module (BCM)
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280A |
BODY CONTROL MODULE (BCM) |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| EU5T-14474-BAA |
Not Available |
| CU5T-14474-RA |
Not Available |
| BU5T-14474-UA |
DU2Z-14474-DA |
1.50 |
| 7C3T-14474-EA |
DU2Z-14474-DA |
1.50 |
| EU5T-14474-EA |
EU2Z-14474-AB |
2.80 |
| EU5T-14474-FA |
EU2Z-14474-AB |
2.80 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
BU5T-14474-UA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
CBP35 (YE-GY) |
22 |
FUSE - 35 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 5 |
CBP17 (BN-GN) |
22 |
FUSE - 17 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
SBP13 (GY-RD) |
18 |
FUSE - 13 OR CIRCUIT BREAKER |
7C3T-14474-DA |
| 9 |
SBP31 (WH) |
22 |
FUSE - 31 OR CIRCUIT BREAKER |
LATE PRODUCTION |
BU5T-14474-UA |
| 9 |
SBP31 (WH-RD) |
22 |
FUSE - 31 OR CIRCUIT BREAKER |
EARLY PRODUCTION |
BU5T-14474-UA |
| 10 |
SBP12 (GN-WH) |
18 |
FUSE - 12 OR CIRCUIT BREAKER |
7C3T-14474-DA | 7C3T-14474-EA |
| 10 |
SBP12 (GN-WH) |
22 |
FUSE - 12 OR CIRCUIT BREAKER |
7C3T-14474-DA | 7C3T-14474-EA |
| 11 |
SBP19 (BU-RD) |
22 |
FUSE - 19 OR CIRCUIT BREAKER |
BU5T-14474-UA |
| 12 |
SBP20 (GN) |
26 |
FUSE - 20 OR CIRCUIT BREAKER |
7C3T-14474-DA | 7C3T-14474-EA |
| 12 |
SBP20 (GN-RD) |
22 |
FUSE - 20 OR CIRCUIT BREAKER |
7C3T-14474-DA | 7C3T-14474-EA |
| 12 |
SBP20 (GN-RD) |
14 |
FUSE - 20 OR CIRCUIT BREAKER |
7C3T-14474-DA | 7C3T-14474-EA |
| 13 |
CBP30 (YE-BU) |
22 |
FUSE - 30 OR CIRCUIT BREAKER |
EU5T-14474-EA | EU5T-14474-BAA |
| 14 |
CDC35 (BU-OG) |
22 |
SWITCH - IGNITION # RUN; START |
LATE PRODUCTION |
EU5T-14474-EA |
| 14 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # RUN; START |
EARLY PRODUCTION |
EU5T-14474-EA |
| 14 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # RUN; START |
All |
EU5T-14474-EA |
| 15 |
CBP36 (BU-WH) |
18 |
FUSE - 36 OR CIRCUIT BREAKER |
LATE PRODUCTION |
EU5T-14474-FA |
| 15 |
CBP36 (BU-BN) |
18 |
FUSE - 36 OR CIRCUIT BREAKER |
EARLY PRODUCTION |
EU5T-14474-FA |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
SBP15 (WH-RD) |
22 |
FUSE - 15 OR CIRCUIT BREAKER |
EU5T-14474-BAA | EU5T-14474-FA |
| 19 |
SBP15 (WH-RD) |
14 |
FUSE - 15 OR CIRCUIT BREAKER |
EU5T-14474-BAA | EU5T-14474-FA |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
SBP32 (VT-RD) |
12 |
FUSE - 32 OR CIRCUIT BREAKER |
CU5T-14474-RA |
