Gateway Module A (GWM): Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the GWM following the on-screen instructions.

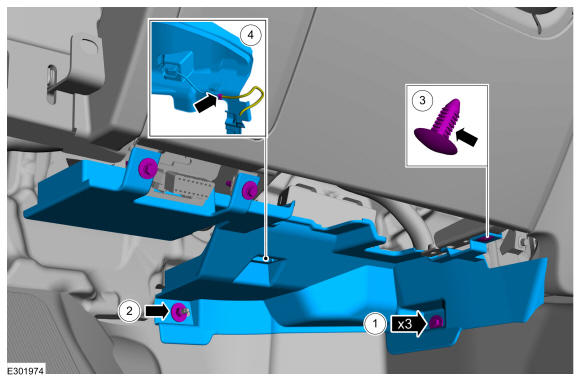

Remove the retainers and the drivers side lower insulation panel.
- Remove the bolts.
  Torque: 28 lb.in (3.2 Nm)
- Remove the nut and the push pin.
  Torque: 22 lb.in (2.5 Nm)
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

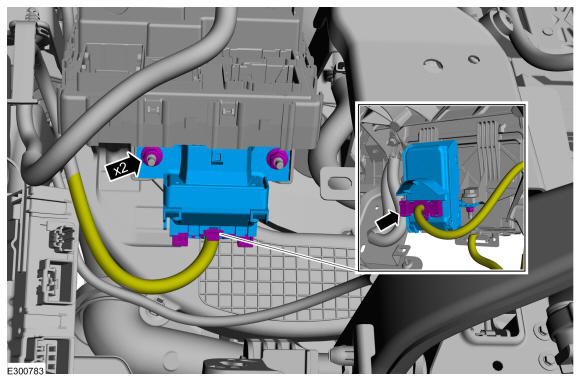

Remove the nuts and the GWM.
- Disconnect the electrical connector.
  Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY
