Radio Transceiver Module (RTM): Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

CARRY OUT the PMI procedure for the RTM. Refer to: Module Configuration - System Operation and Component Description .
Remove the LH C-Pillar Trim Panel. Refer to: C-Pillar Trim Panel .

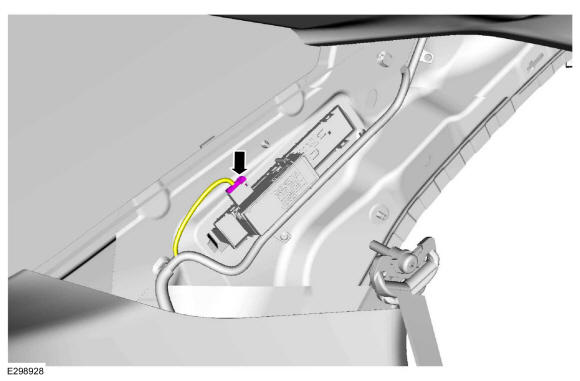

Disconnect the RTM electrical connector.

Courtesy of FORD MOTOR COMPANY

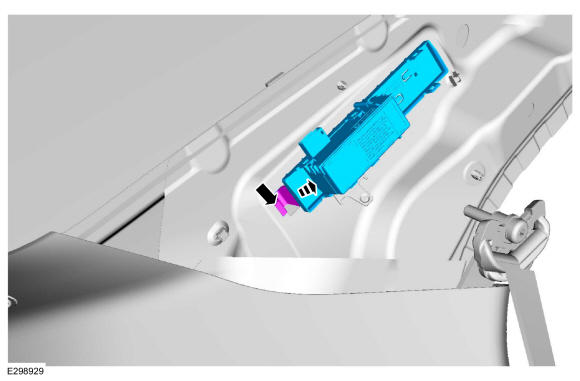

Release the tab and remove the RTM and bracket.

Courtesy of FORD MOTOR COMPANY

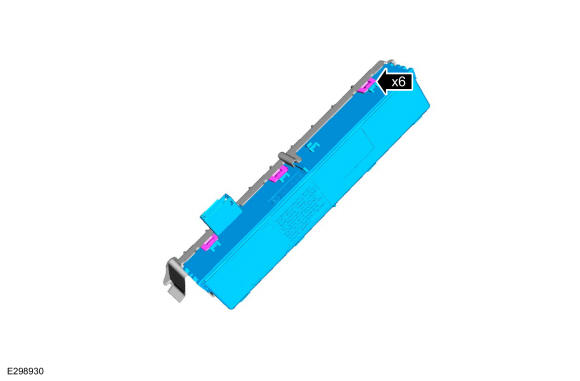

Release the tabs and remove the RTM from the bracket.

Courtesy of FORD MOTOR COMPANY
