Steering Column Control Switch: Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds

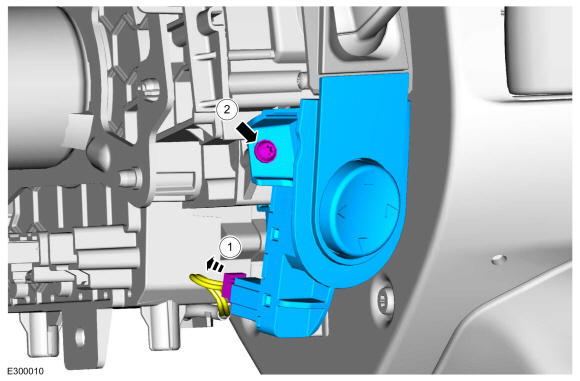

  2. Remove the steering column control switch.

    1. Disconnect the electrical connector.
    2. Remove the retainer and remove the steering column control switch.

GFD655558Courtesy of FORD MOTOR COMPANY
