Pedestrian Alert Control Module (PACM): Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

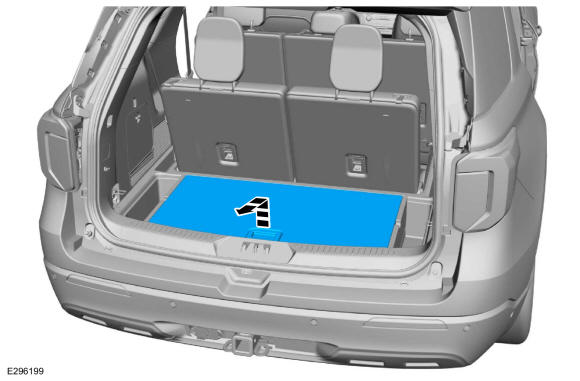

Remove the luggage compartment floor cover.

Courtesy of FORD MOTOR COMPANY

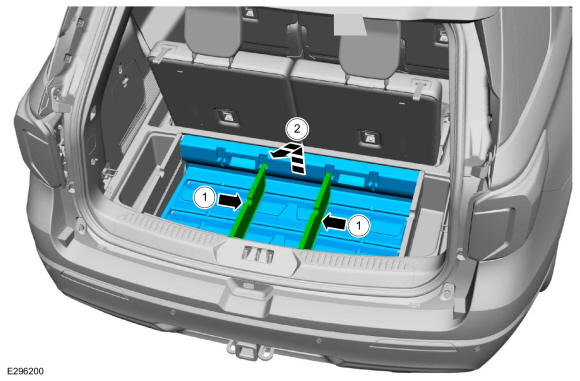

Remove the luggage compartment storage bin.
- If equipped. Remove the luggage compartment storage bin dividers.
- Remove the luggage compartment storage bin.
Courtesy of FORD MOTOR COMPANY

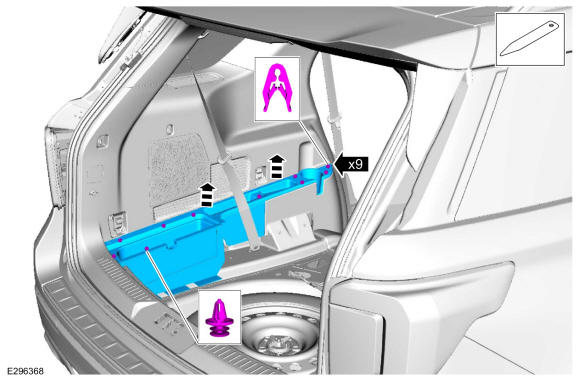

NOTE: Third row seats removed for clarity.

NOTE: Pin-type retainers are located in the rear bin floor of the loadspace armrest trim panel.

Release the clips and pin-type retainers and remove the loadspace armrest trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

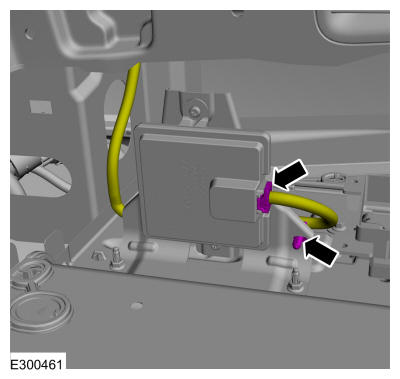

Disconnect the electrical connectors and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

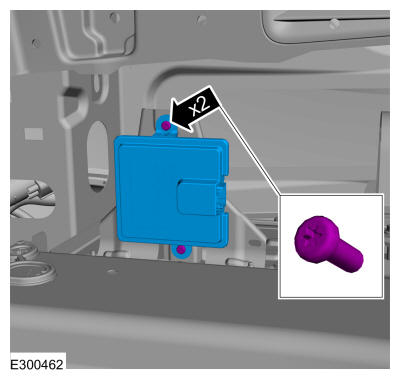

Remove the screws and the PACM.

Courtesy of FORD MOTOR COMPANY
