Image Processing Module A (IPMA): Installation

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

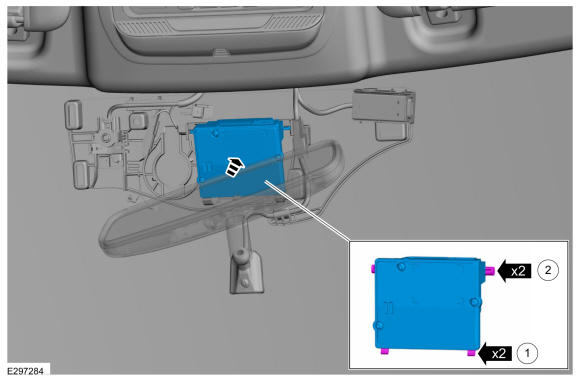

  1. Install the IPMA

    1. Install the lower tabs.
    2. Install the upper tabs.

    GFD661671Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
    • If a new IPMA has been installed, using a diagnostic scan tool, complete the PMI process for the IPMA following the on-screen instructions.

    • If a new IPMA has been installed, CARRY OUT the camera alignment using a scan tool.
