Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

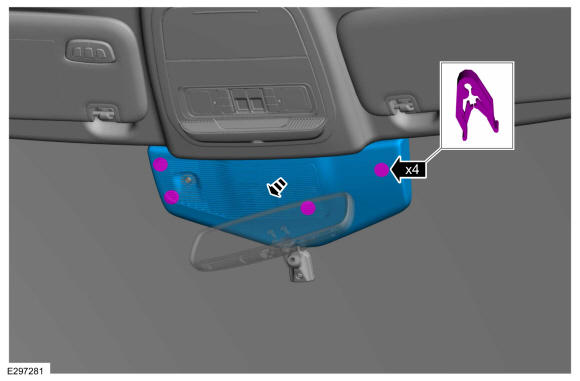

  1. Release the clips and remove the IPMA cover.
    GFD661668Courtesy of FORD MOTOR COMPANY

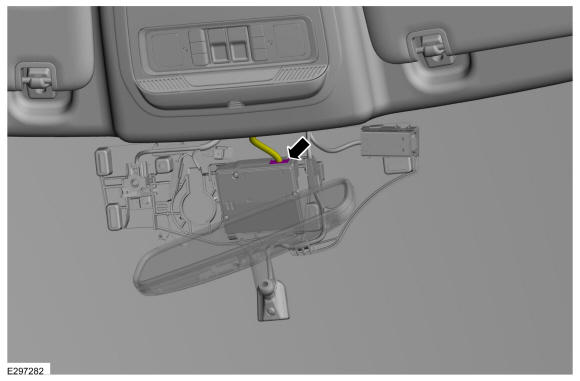

  2. Disconnect the electrical connector.
    GFD661669Courtesy of FORD MOTOR COMPANY

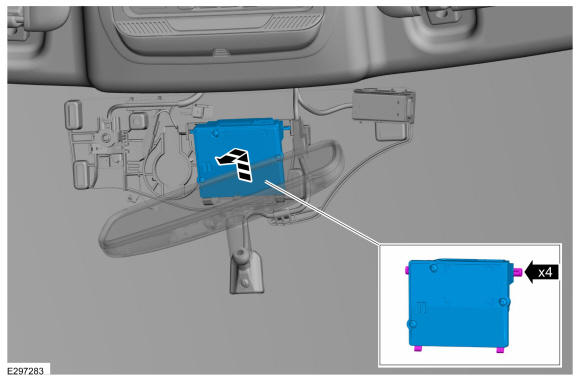

  3. Release the tabs and remove the IPMA.
GFD661670Courtesy of FORD MOTOR COMPANY
