Side Obstacle Detection Control Module (SODCM): Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown below, RH side is similar.

Remove the rear bumper cover. Refer to: Rear Bumper Cover
NOTE: This step is only necessary if the SODL or SODR is being replaced.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

NOTE: If the SODL or SODR did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.

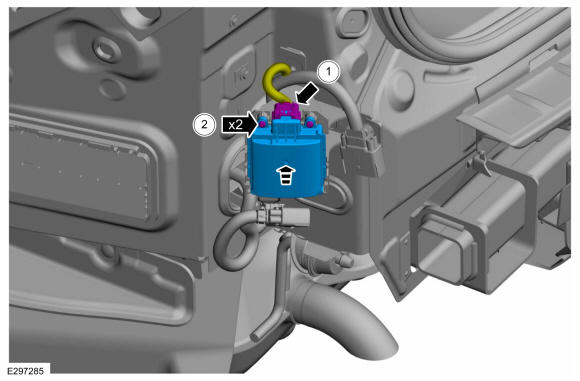

Remove the SODL.
1. Disconnect the SODL electrical connector.
2. Remove the SODL screws.
Courtesy of FORD MOTOR COMPANY
NOTE: The location and number of electrical connectors may vary based on vehicle application.

If required. Disconnect the SODL wiring harness retainers and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

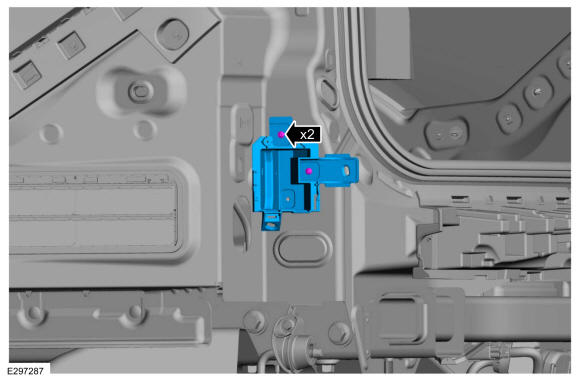

If required. Remove the screws and the SODL bracket.

Courtesy of FORD MOTOR COMPANY
