Connector Repair Procedures

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

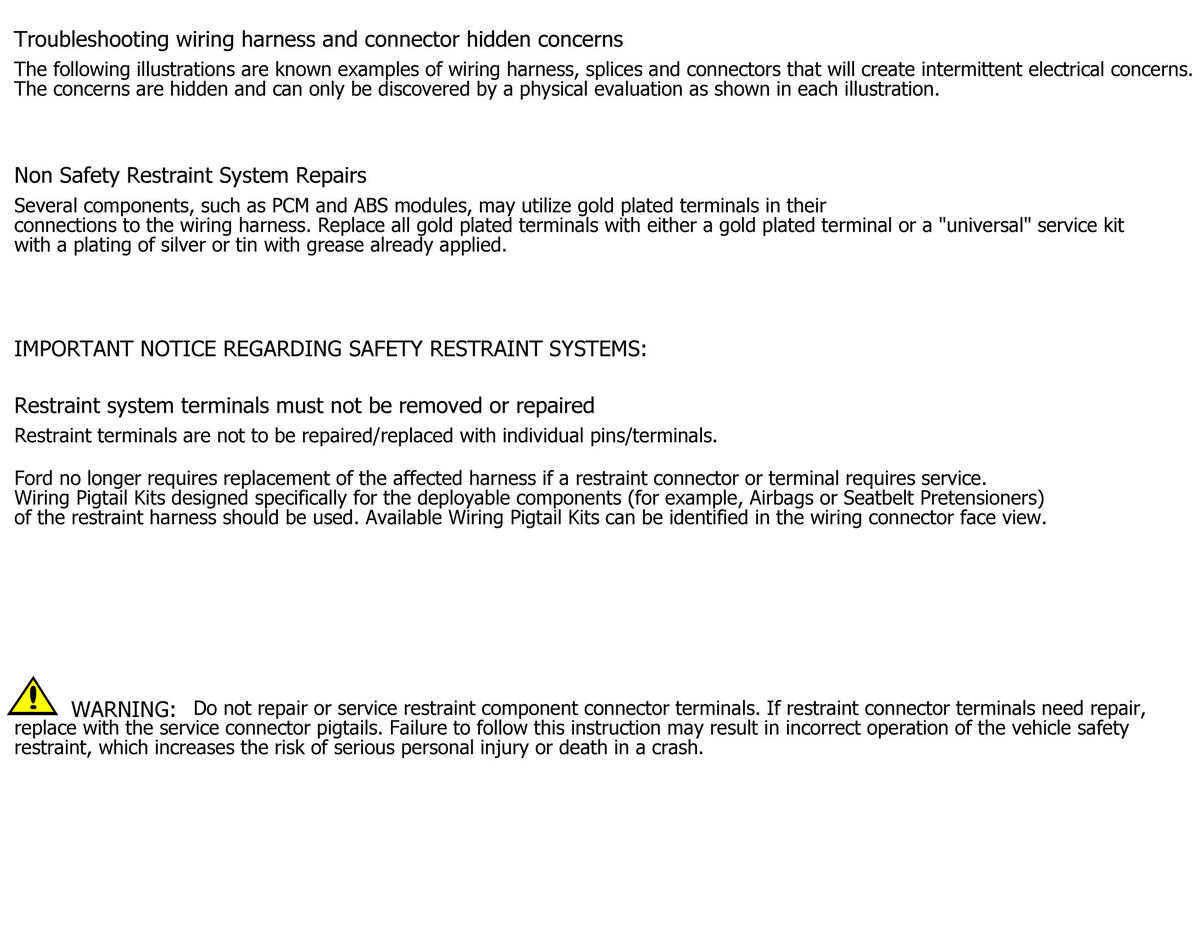

GFDWR173450Courtesy of FORD MOTOR COMPANY

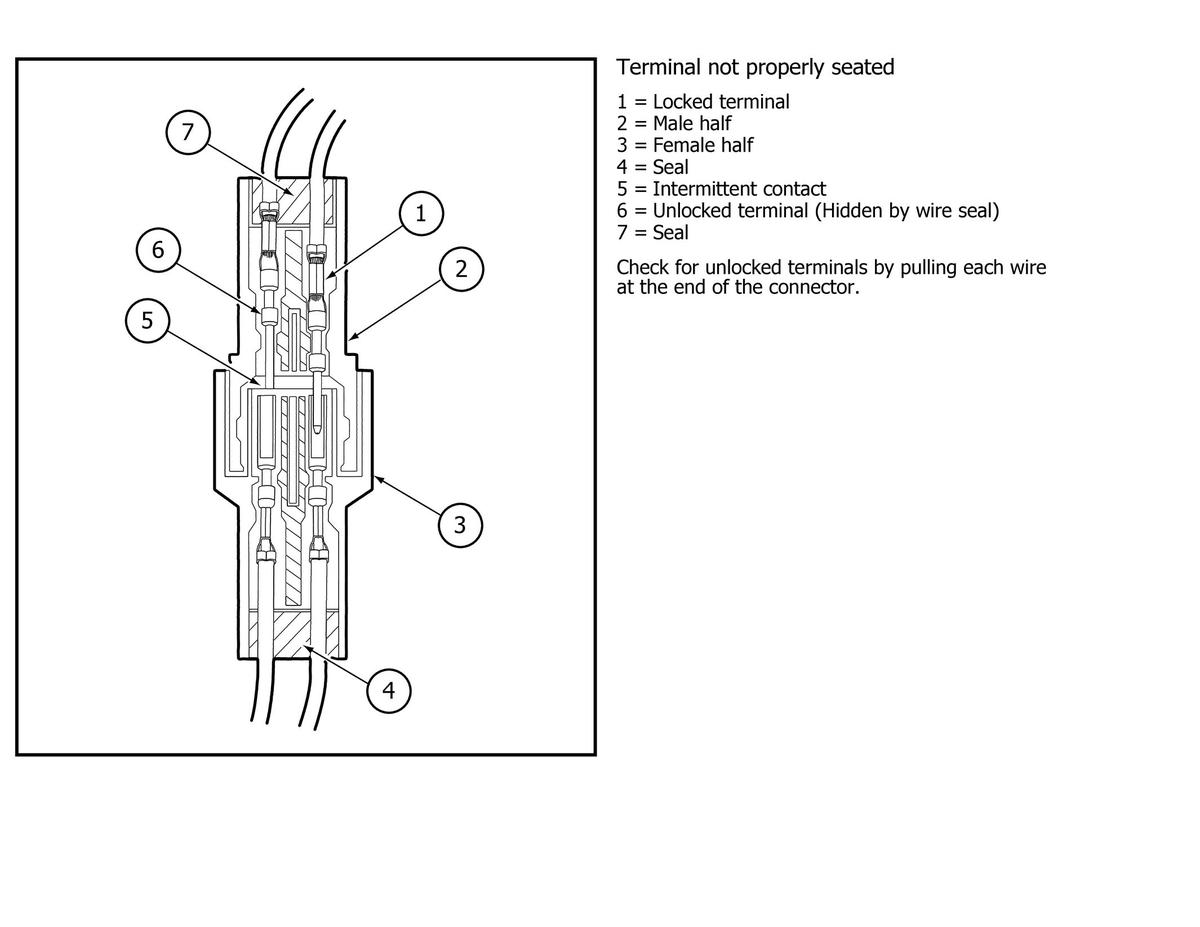

GFDWR173451Courtesy of FORD MOTOR COMPANY

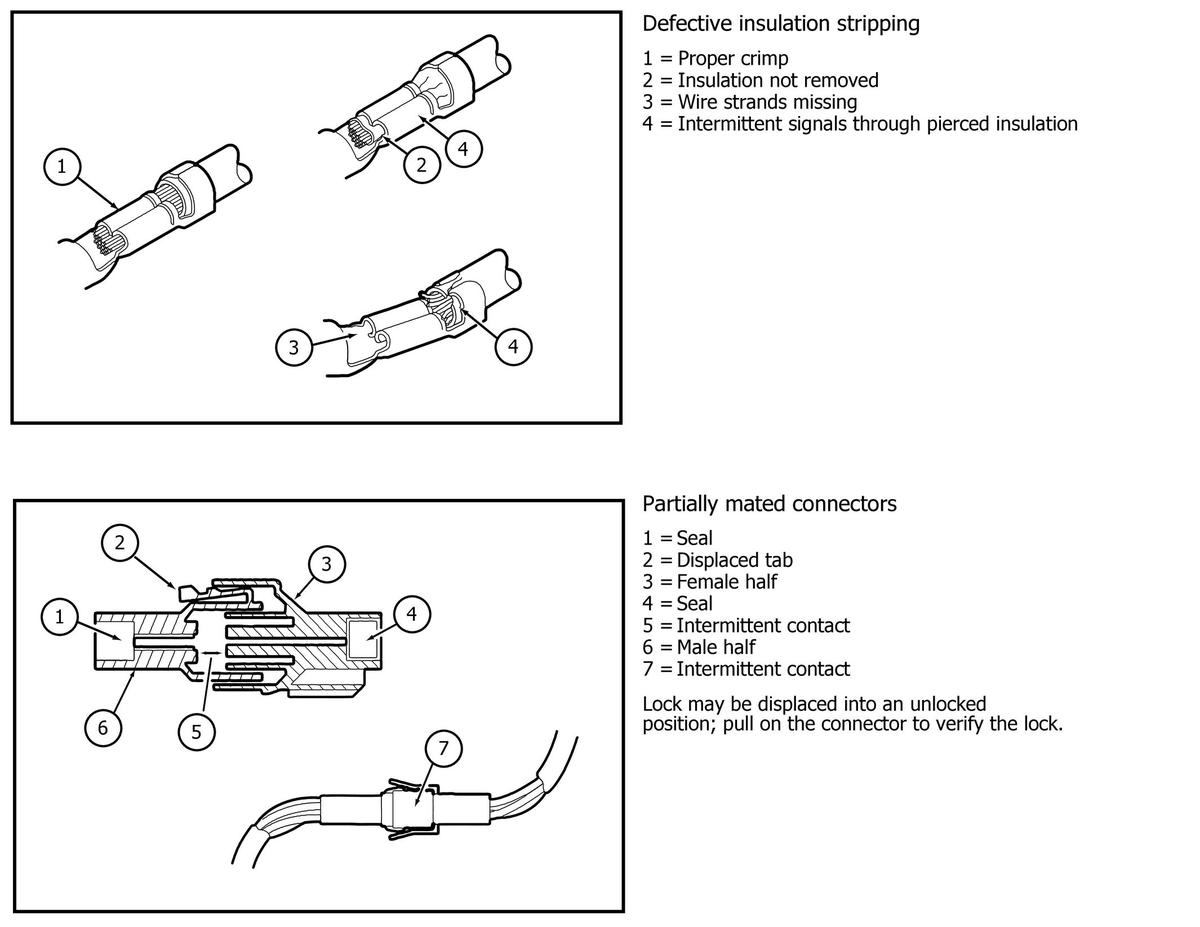

GFDWR173452Courtesy of FORD MOTOR COMPANY

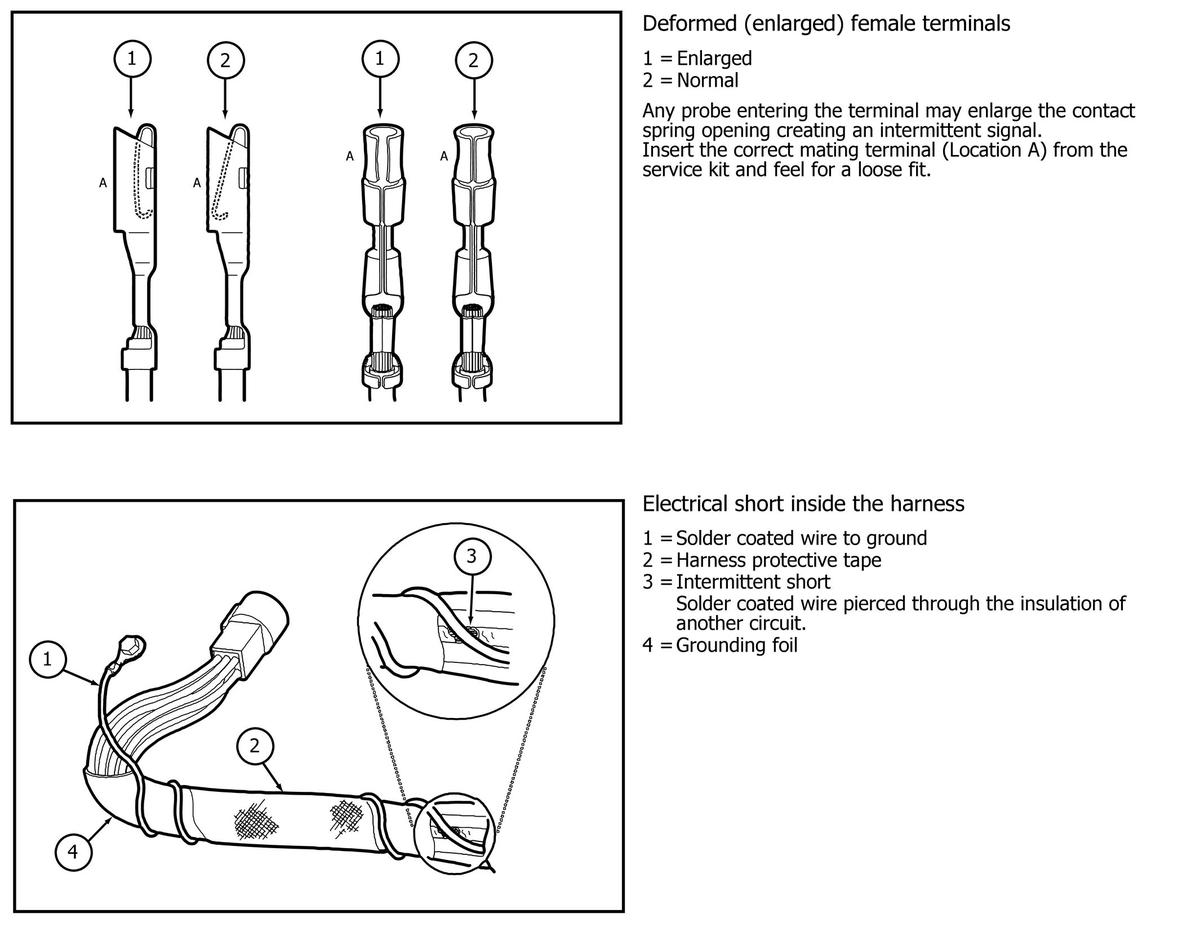

GFDWR173453Courtesy of FORD MOTOR COMPANY

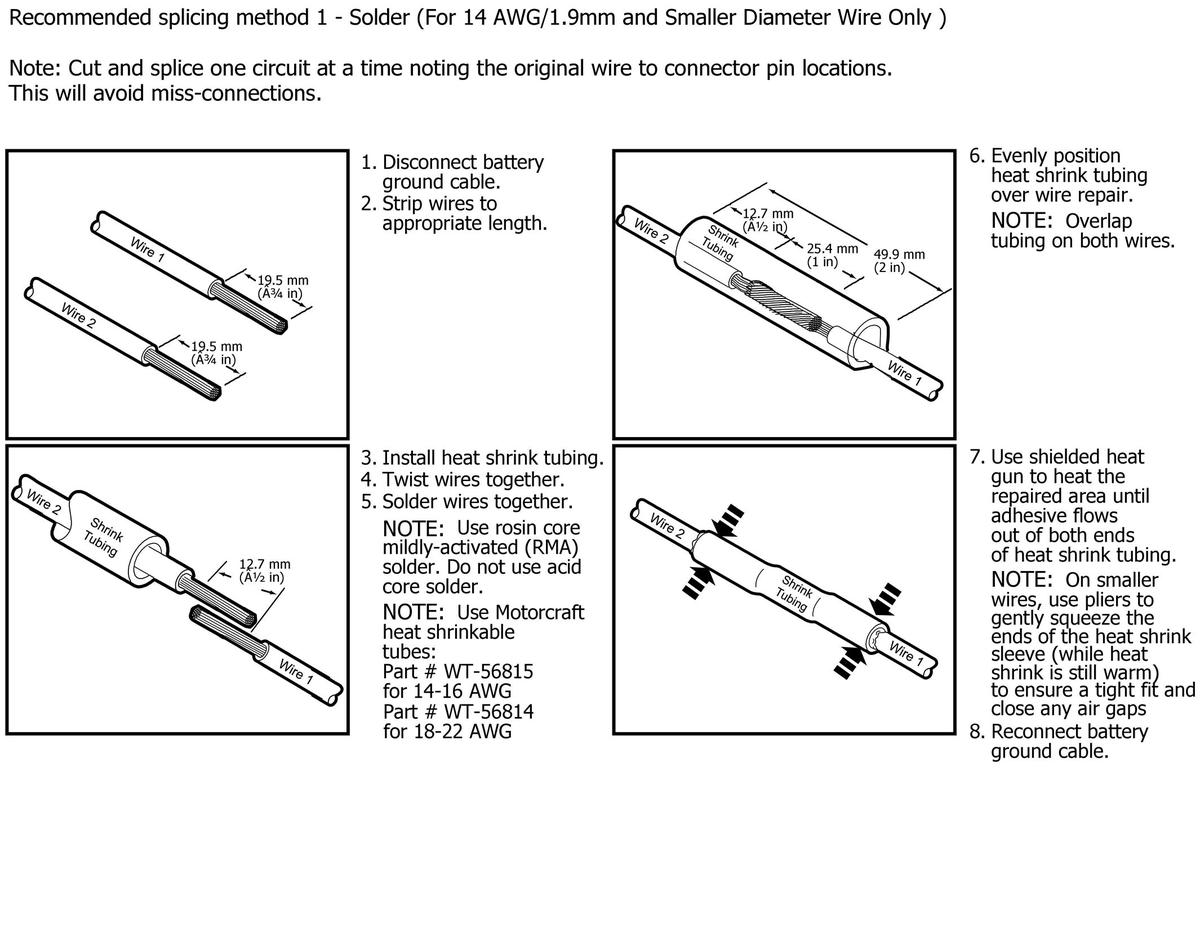

GFDWR173454Courtesy of FORD MOTOR COMPANY

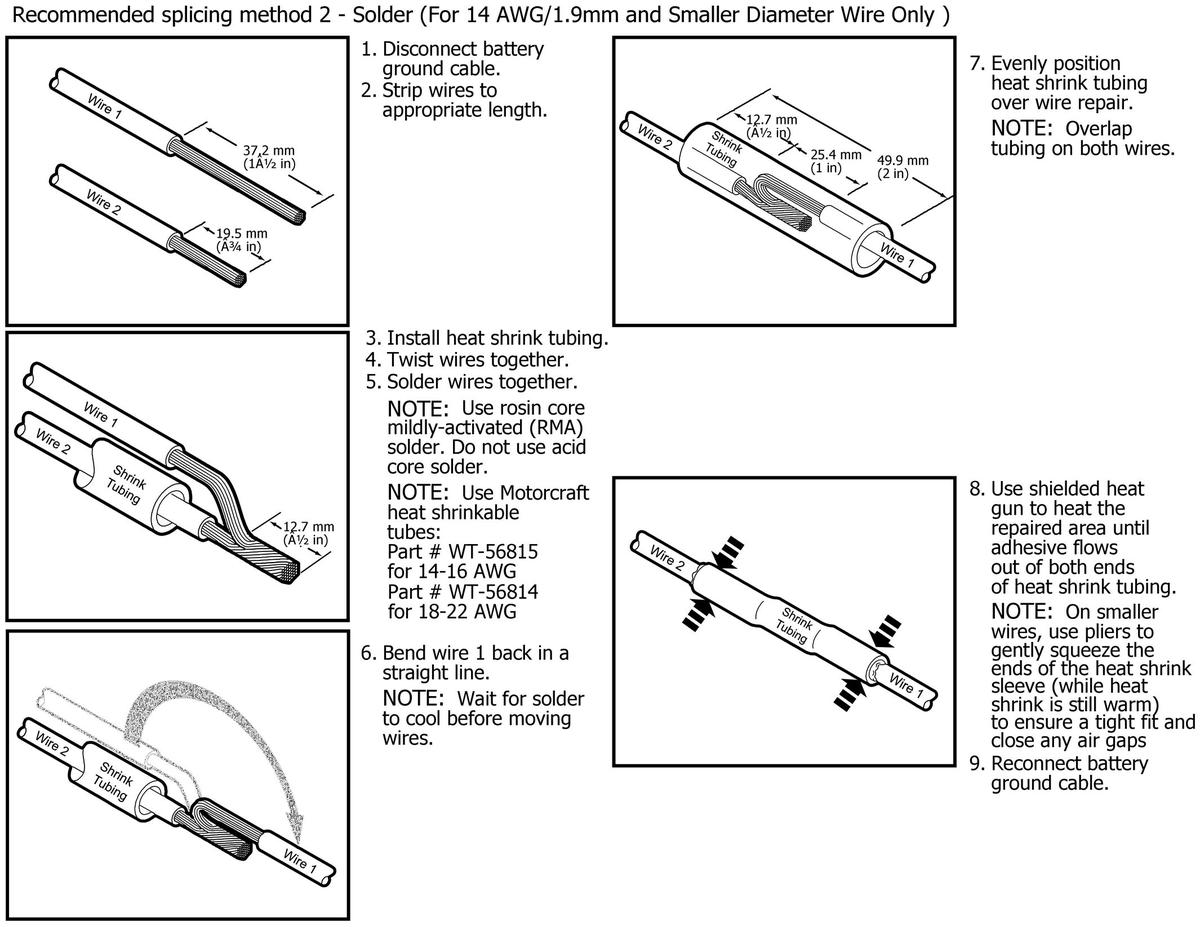

GFDWR173455Courtesy of FORD MOTOR COMPANY

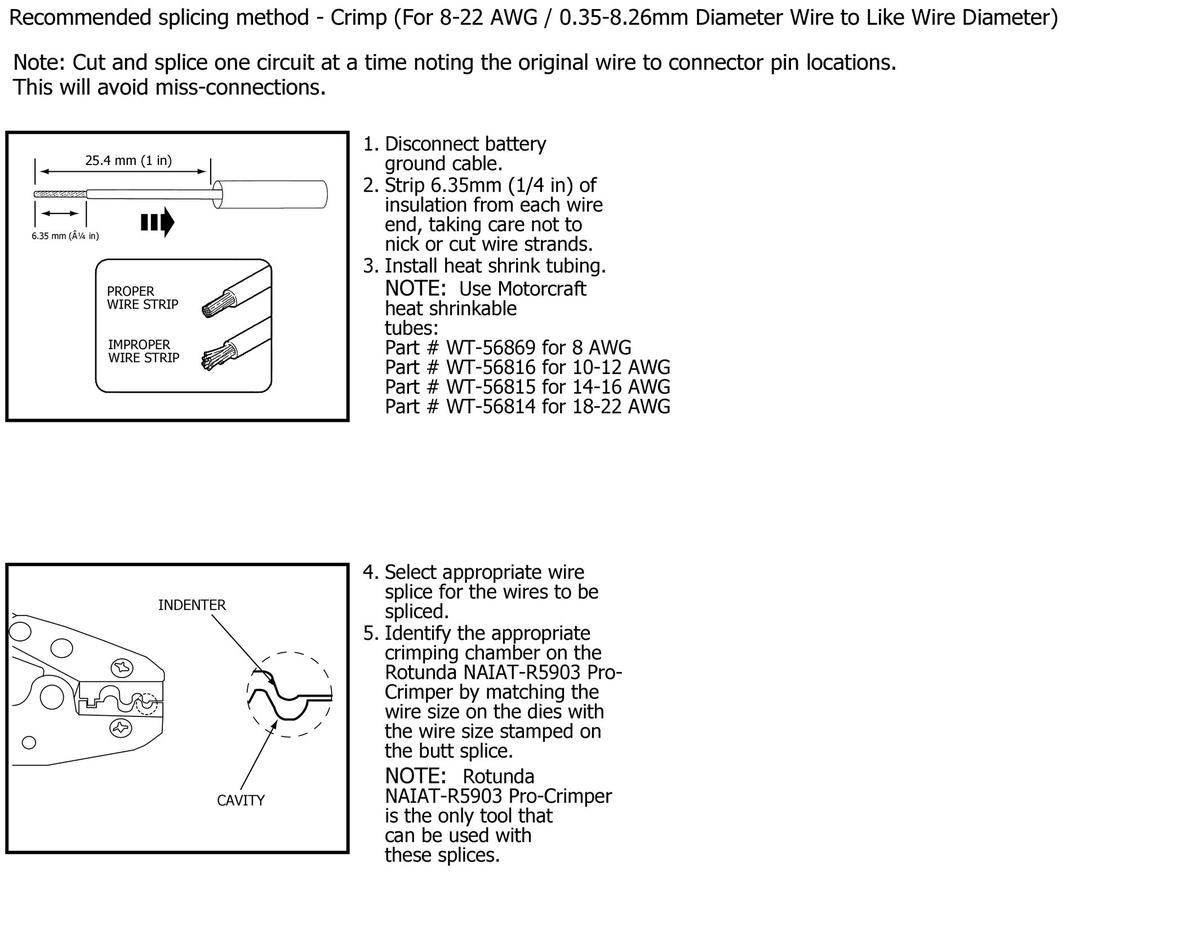

GFDWR173456Courtesy of FORD MOTOR COMPANY

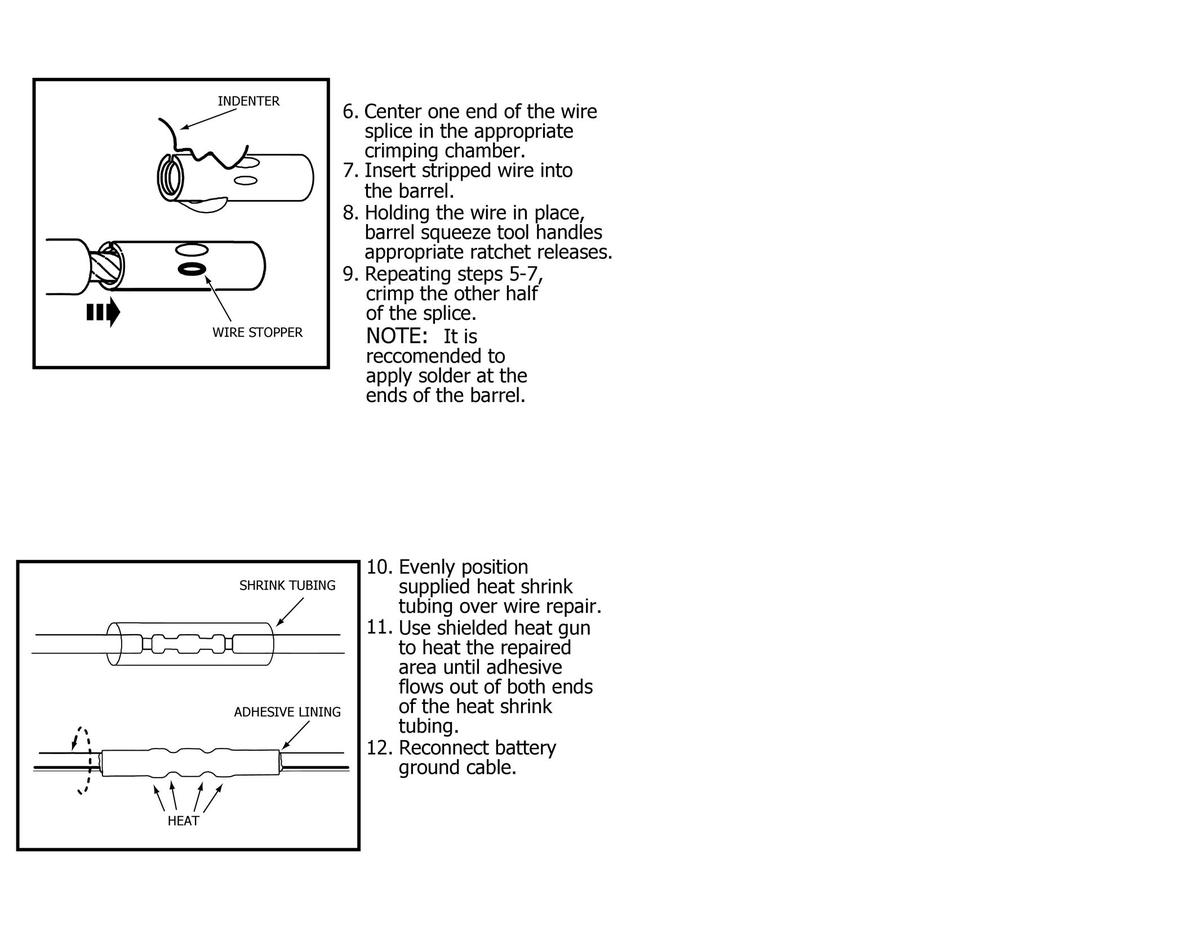

GFDWR173457Courtesy of FORD MOTOR COMPANY

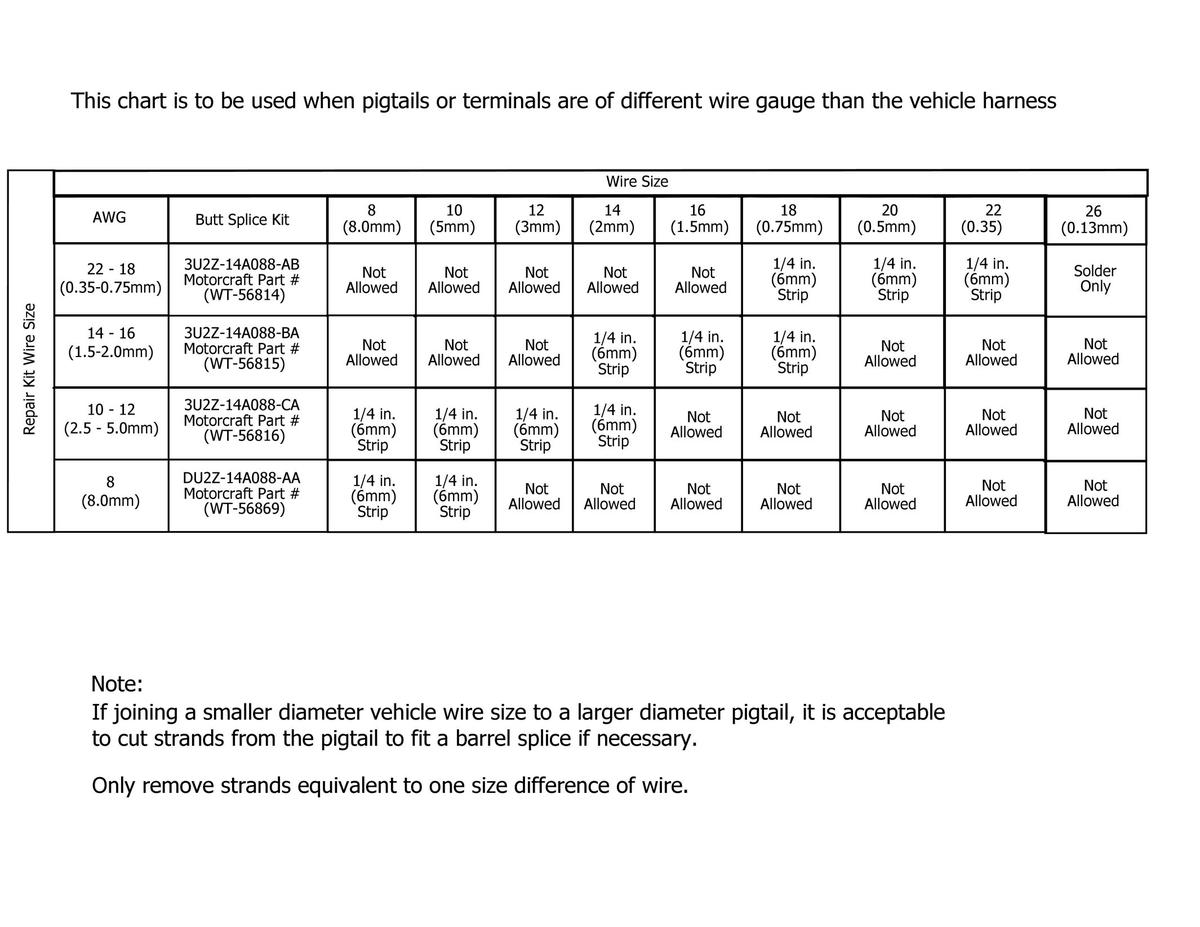

GFDWR173458Courtesy of FORD MOTOR COMPANY
