Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

If installing a new BCM, connect a battery charger to the battery to make sure it is charged to maintain proper battery voltage. REFER to: Battery Charging .
NOTE: Before replacing the BCM (body control module), ensure that two correct keys are present as they will be needed to complete the PMI (programmable module installation) with the FDRS scan tool. The vehicle will not start unless two keys are present.

NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM is being replaced.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

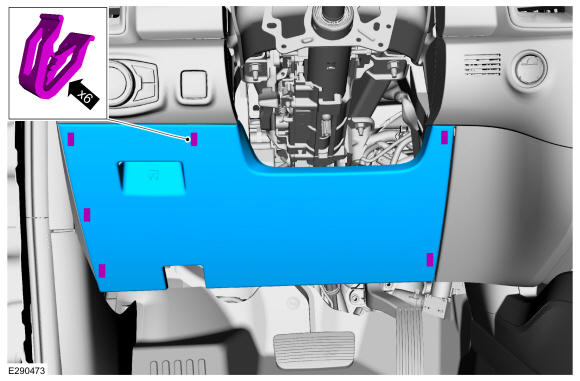

Remove the BCM access cover.

Courtesy of FORD MOTOR COMPANY

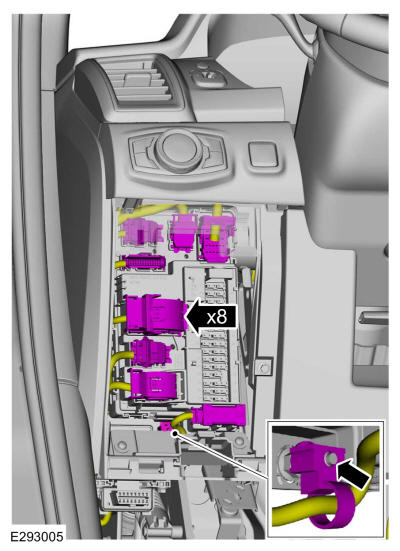

Disconnect the electrical connectors and release the wire harness retainer from the BCM.

Courtesy of FORD MOTOR COMPANY

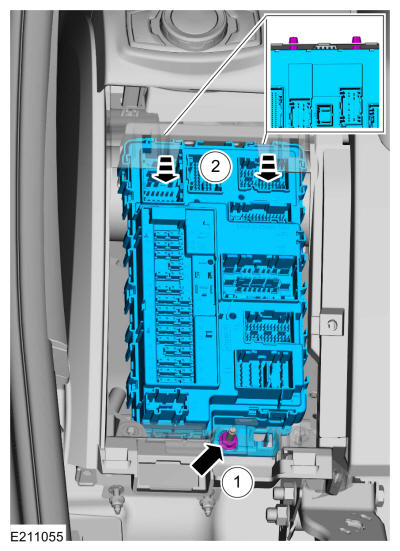

Remove the BCM and bracket.
1. Remove the nut.
  Torque: 48 lb.in (5.4 Nm)
2. Remove the BCM.

Courtesy of FORD MOTOR COMPANY
