Radio Transceiver Module (RTM): Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Carry out the PMI procedure for the RTM.
Lower the headliner. REFER to: Headliner - Lowering - SuperCab . REFER to: Headliner - Lowering - Crew Cab .

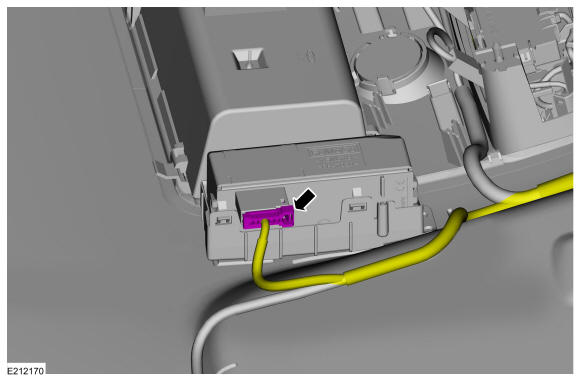

Disconnect the electrical connector from the RTM.

Courtesy of FORD MOTOR COMPANY

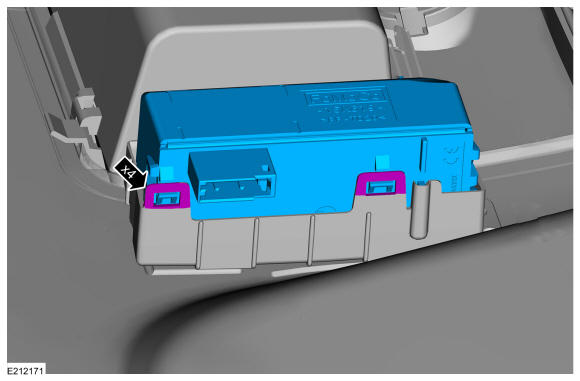

Release the tabs and remove the RTM.

Courtesy of FORD MOTOR COMPANY
