Piston Inspection
WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection
-
NOTE: Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur.

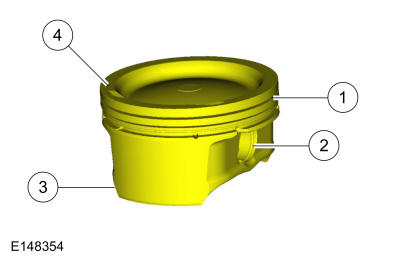

Clean and inspect the (1) ring lands, (2) pin bosses, (3) skirts and the (4) tops of the pistons. If wear marks, scores or glazing is found on the piston skirt, check for a bent or twisted connecting rod.
-
NOTE: Make sure the oil ring holes are clean.

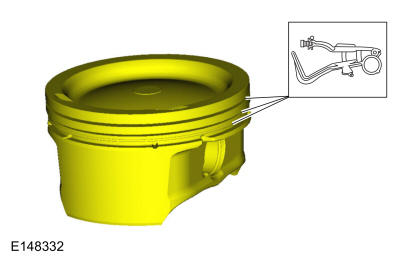

Using a Piston Ring Groove Scraper, clean the piston ring grooves.
