Console Multifunction Switch: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

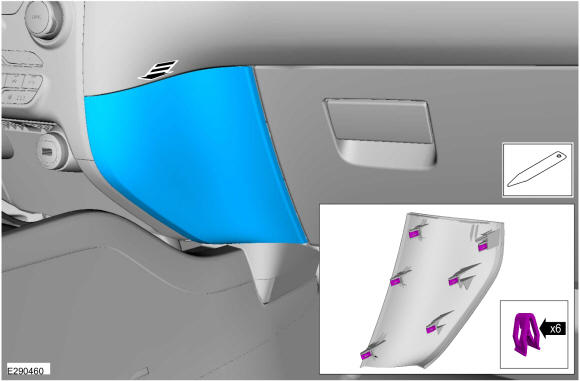

  1. Release the retainers and remove the lower RH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD674016Courtesy of FORD MOTOR COMPANY

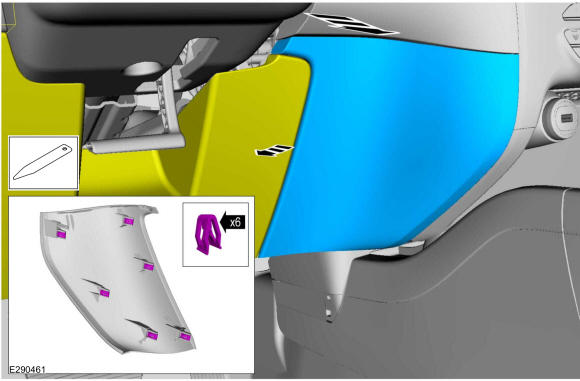

  2. Position aside the lower steering column trim panel, release the retainers and remove the lower LH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD674017Courtesy of FORD MOTOR COMPANY

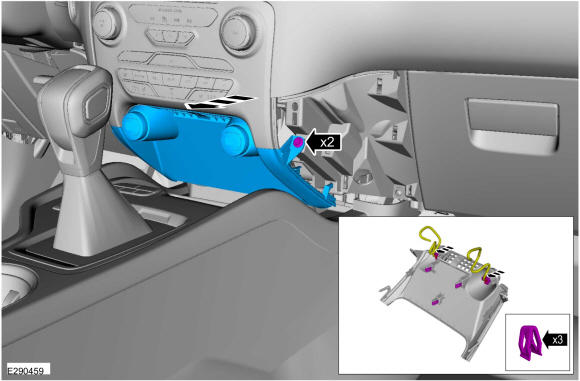

  3. Remove the bolts and the lower center stack trim panel.

    • Disconnect the electrical connectors.

    GFD674018Courtesy of FORD MOTOR COMPANY

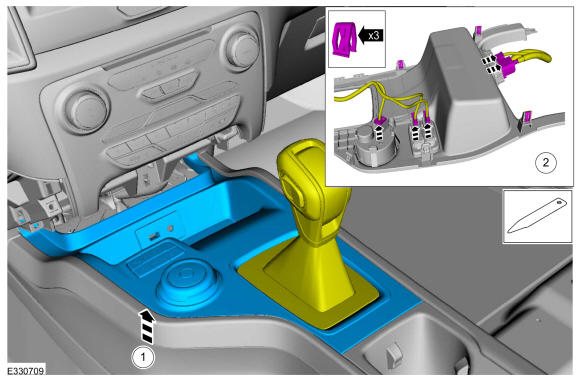

    1. Release the retainers remove the floor console upper trim panel.
    2. Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
    GFD674028Courtesy of FORD MOTOR COMPANY

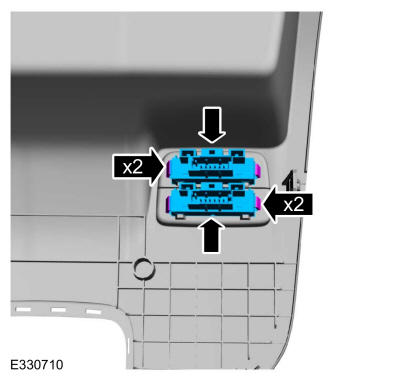

  5. Release the tabs and replace the necessary switch.
GFD674029Courtesy of FORD MOTOR COMPANY
