Connector Repair Procedures

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

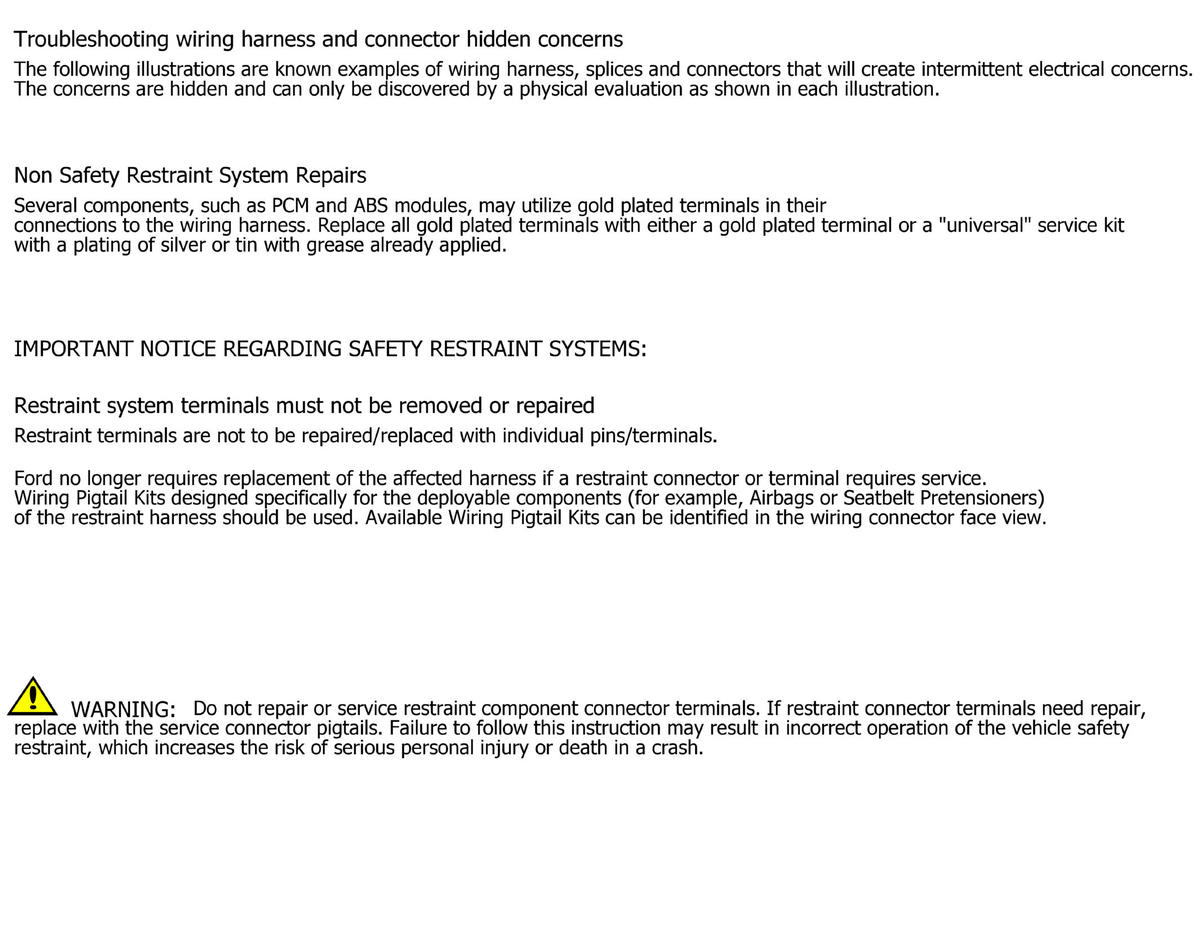

GFDWR175072Courtesy of FORD MOTOR COMPANY

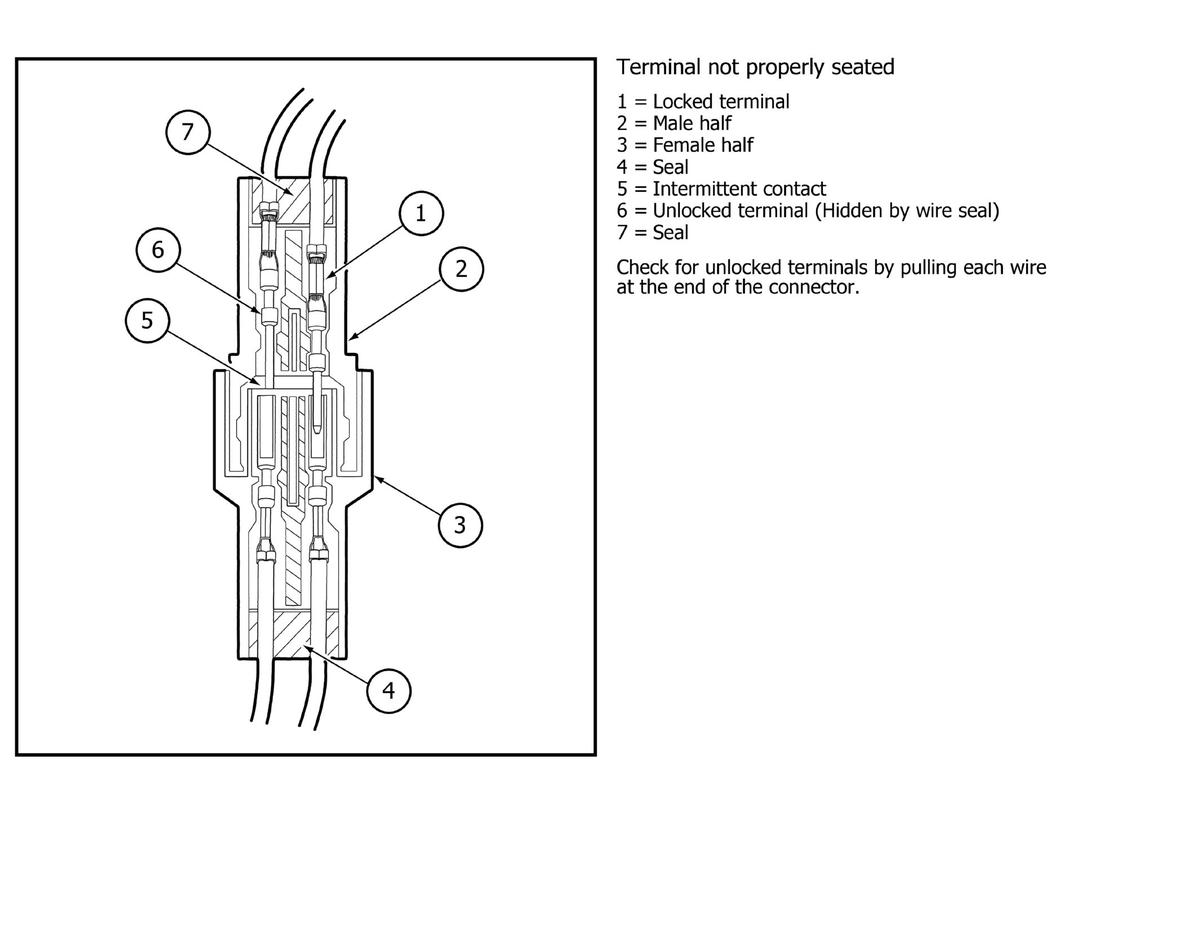

GFDWR175073Courtesy of FORD MOTOR COMPANY

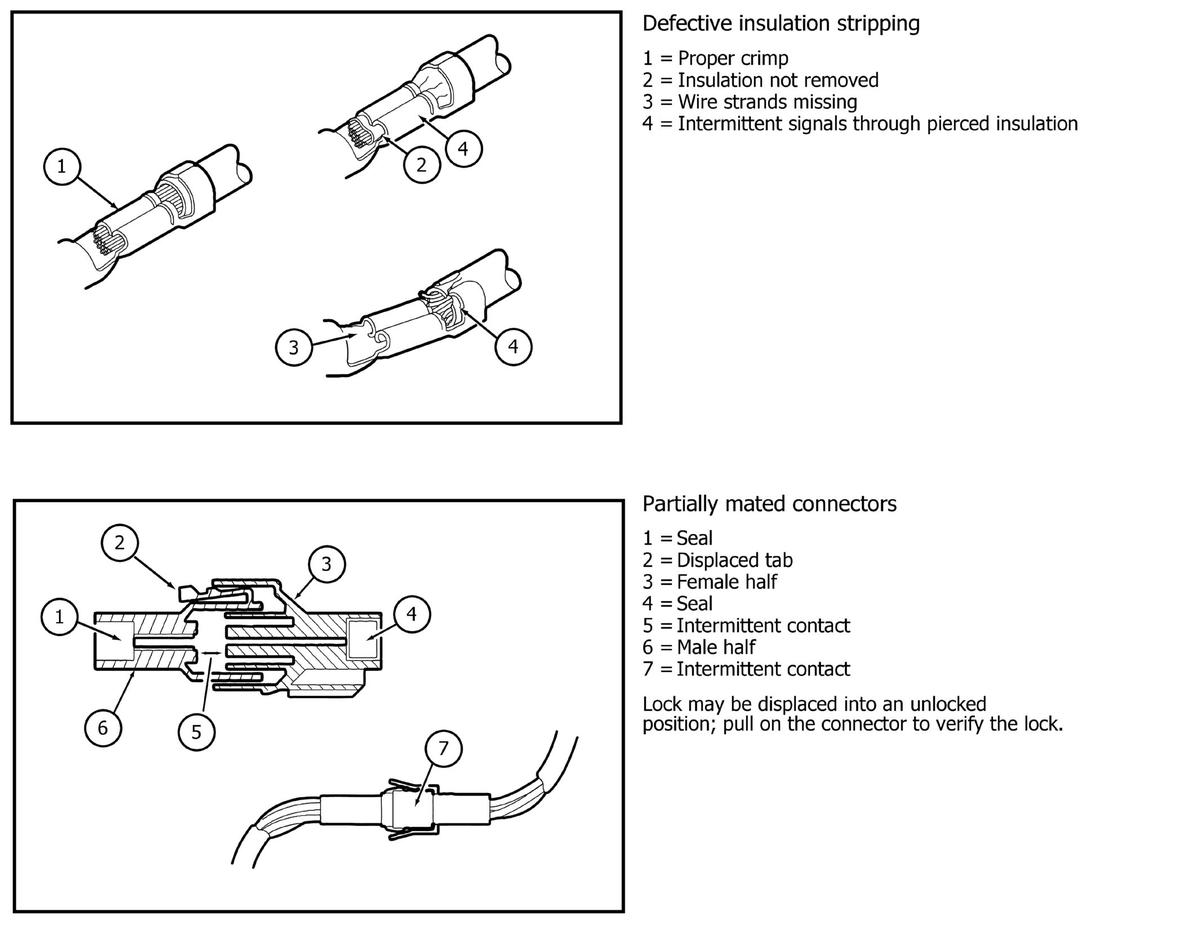

GFDWR175074Courtesy of FORD MOTOR COMPANY

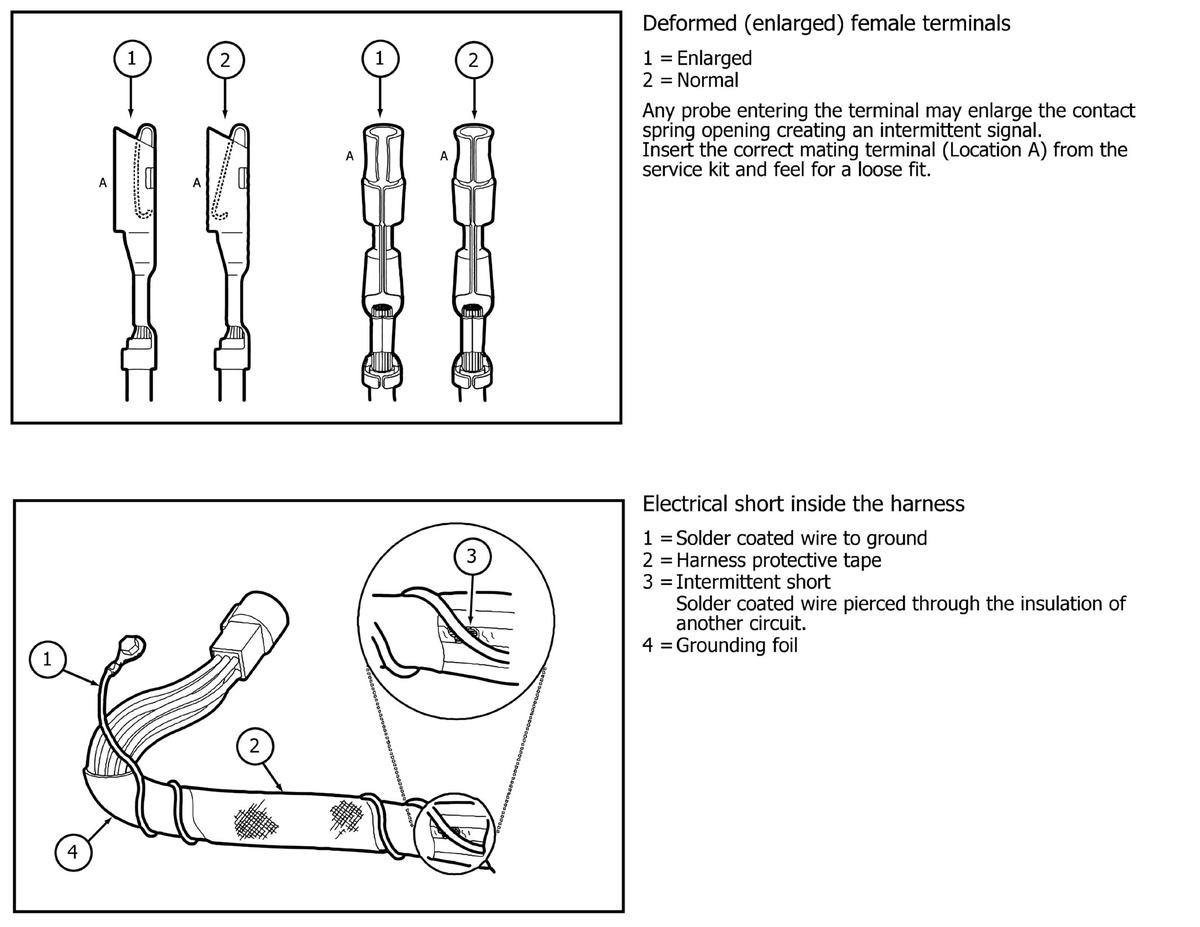

GFDWR175075Courtesy of FORD MOTOR COMPANY

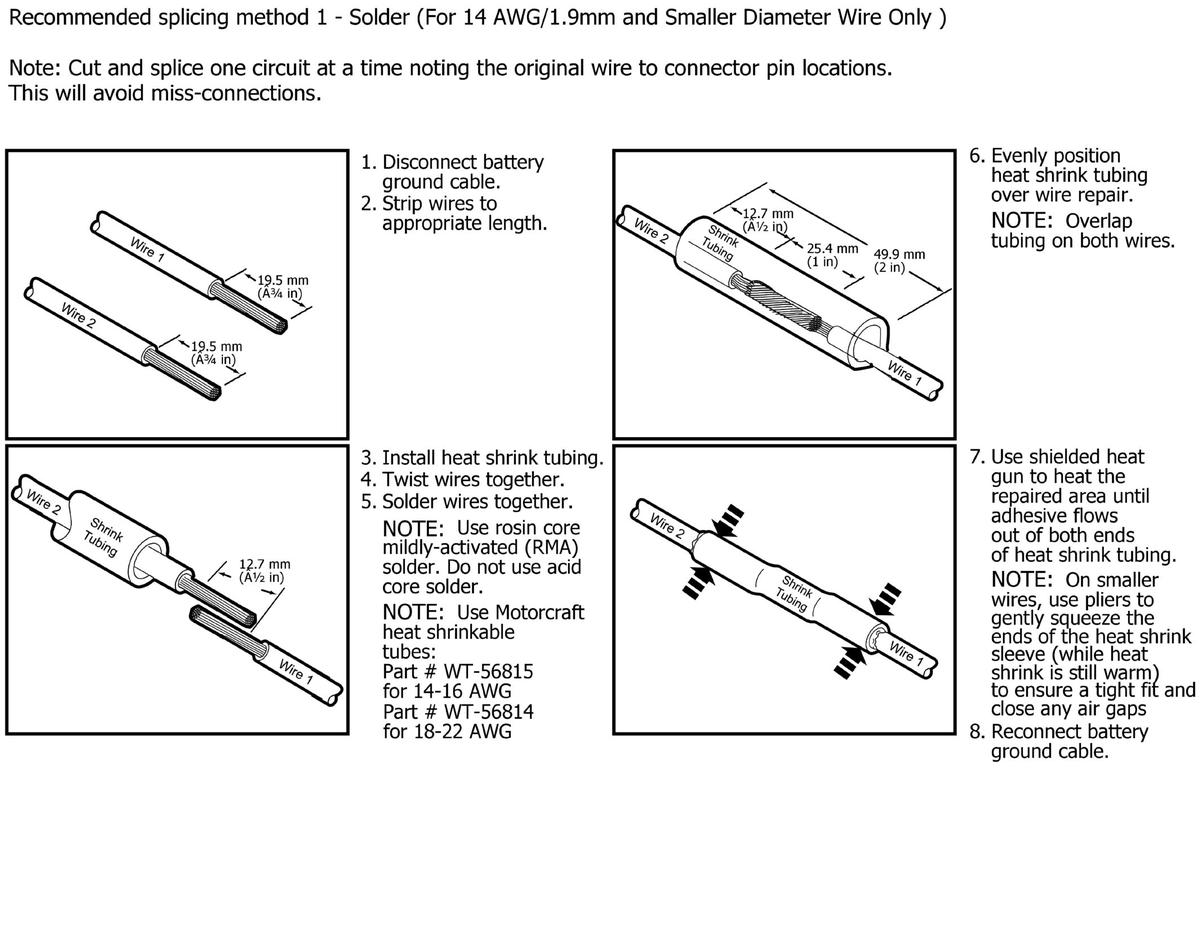

GFDWR175076Courtesy of FORD MOTOR COMPANY

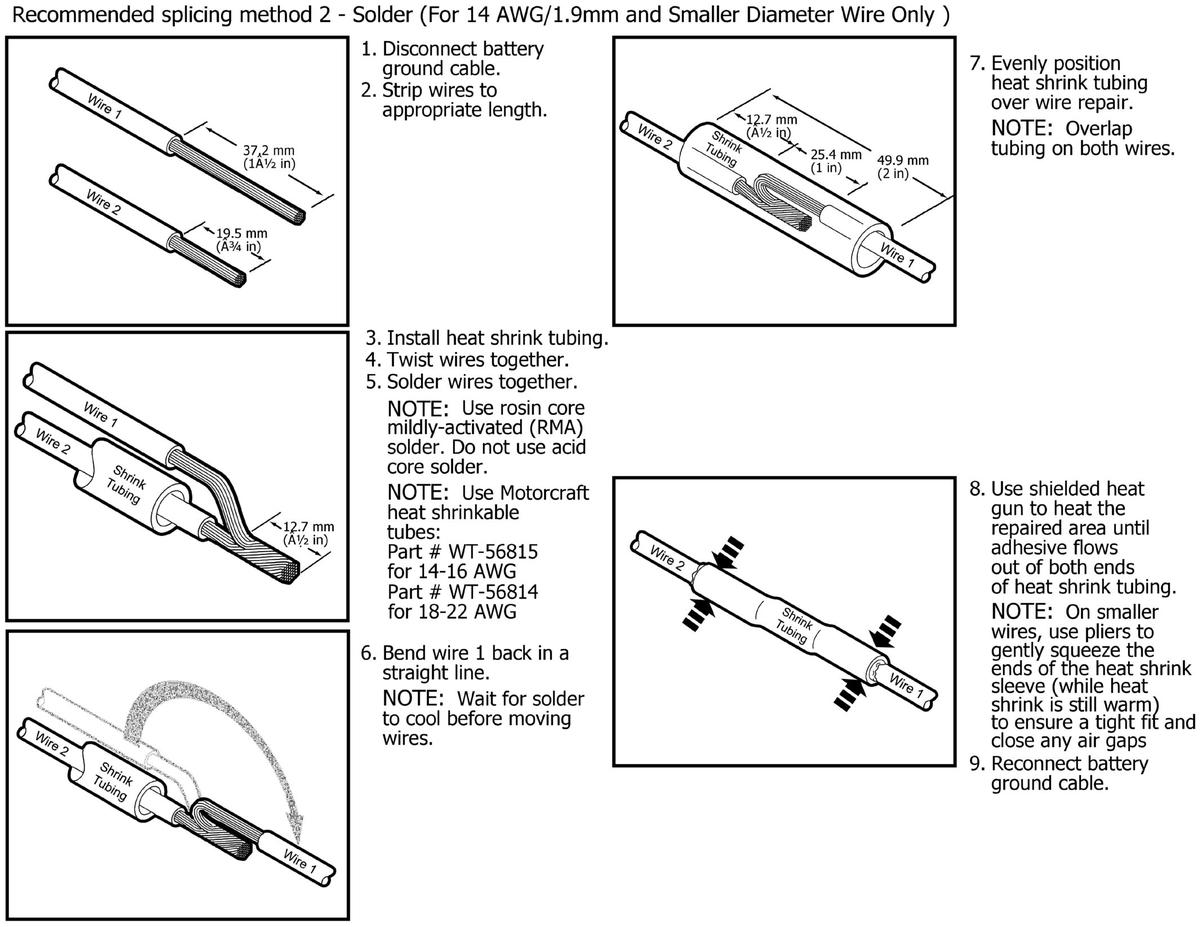

GFDWR175077Courtesy of FORD MOTOR COMPANY

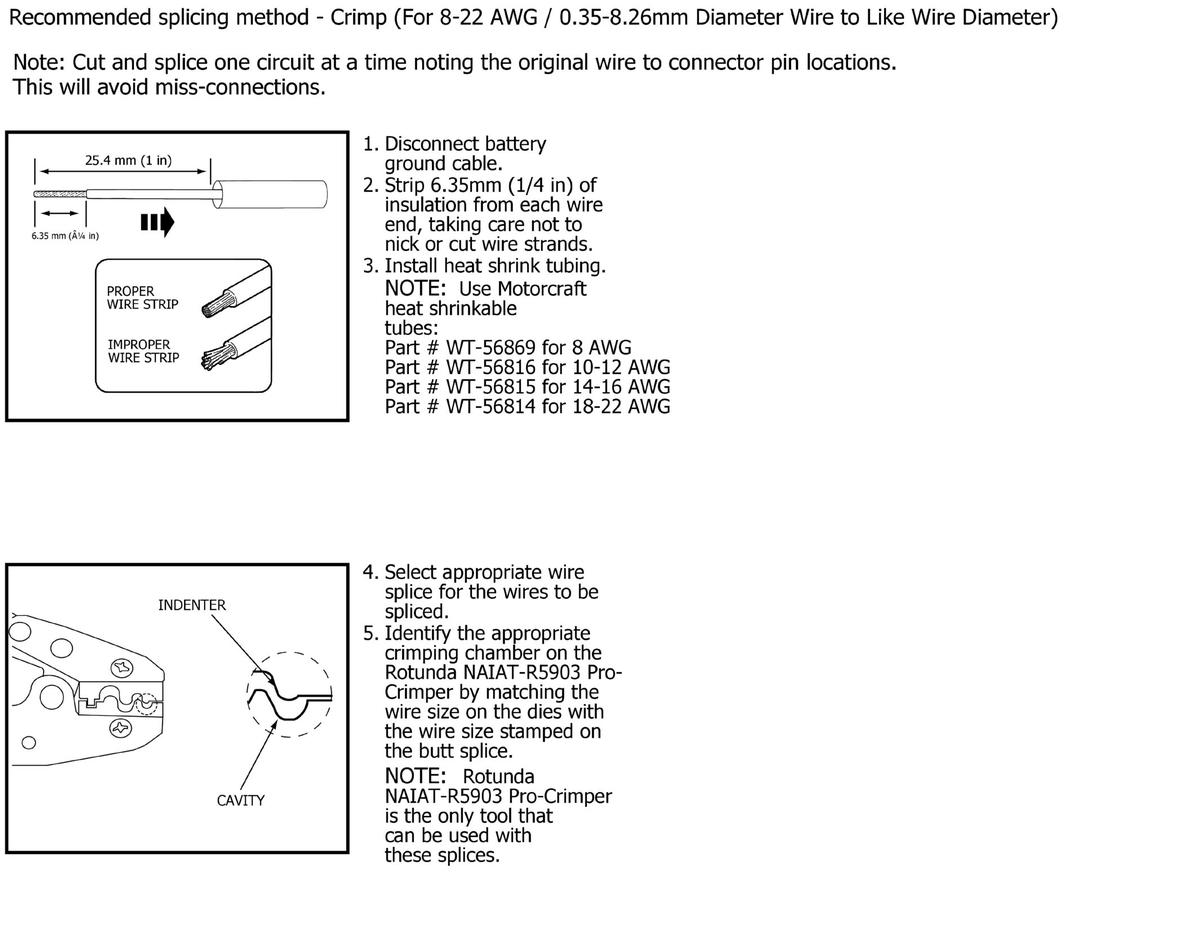

GFDWR175078Courtesy of FORD MOTOR COMPANY

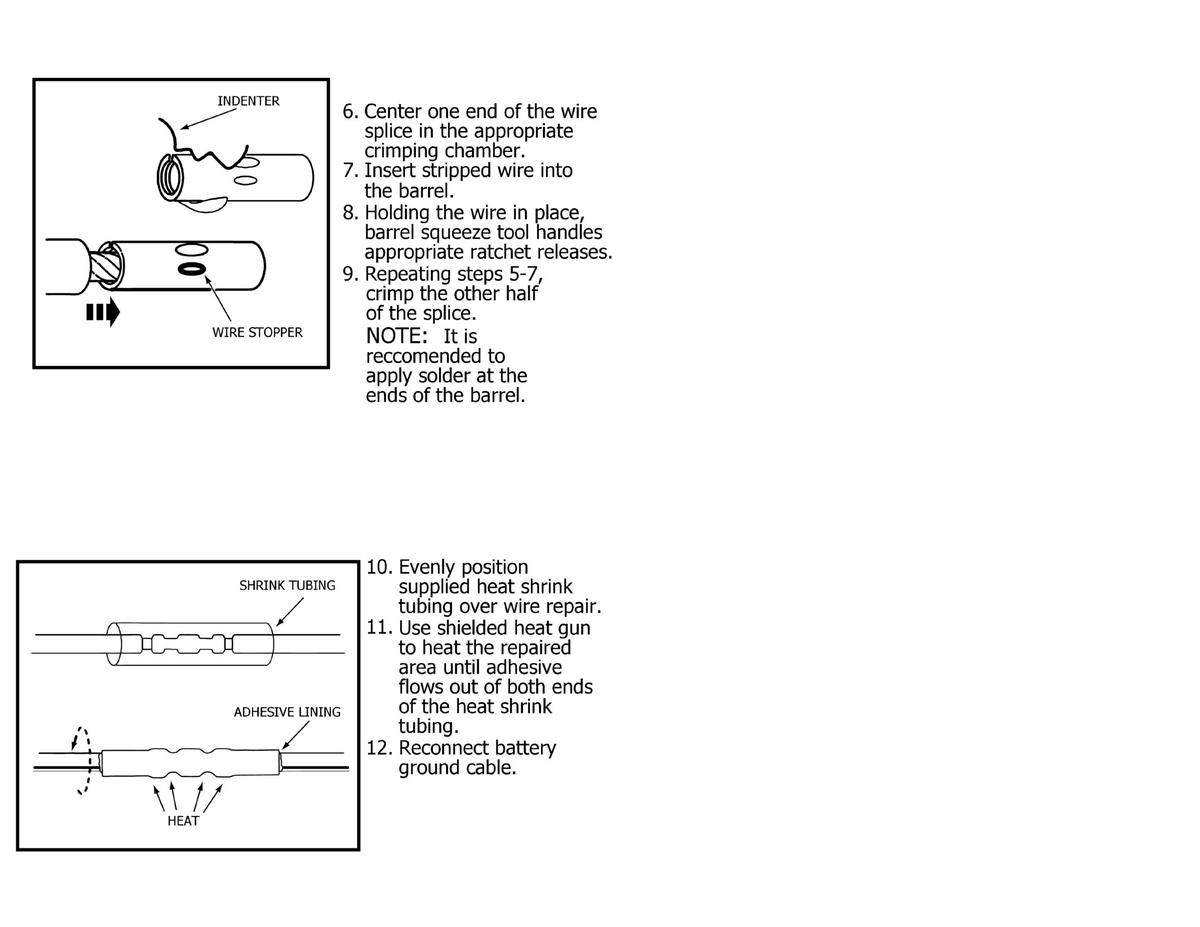

GFDWR175079Courtesy of FORD MOTOR COMPANY

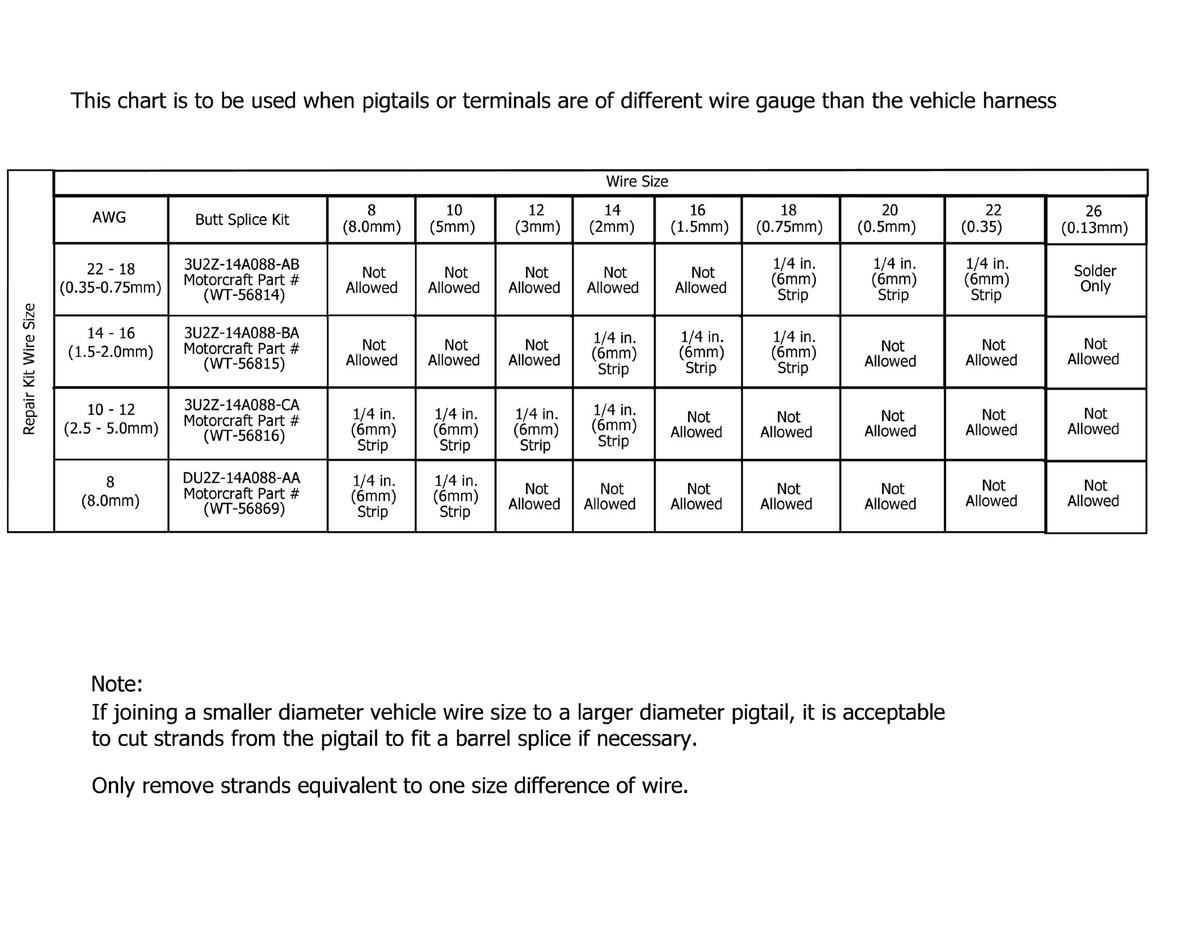

GFDWR175080Courtesy of FORD MOTOR COMPANY
