System Diagram

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

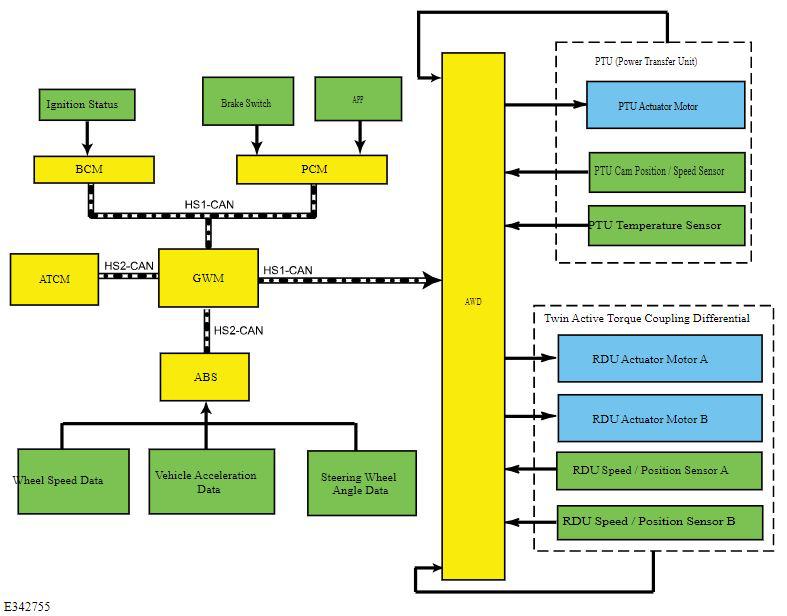

G00613995Courtesy of FORD MOTOR COMPANY
