Trailer Module (TRM): Removal
WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: This step is only necessary if the TRM (trailer module) is being replaced.
Using a diagnostic scan tool, begin the PMI process for the TRM following the on-screen instructions. Refer to: Module Configuration - System Operation and Component Description .
- Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel .

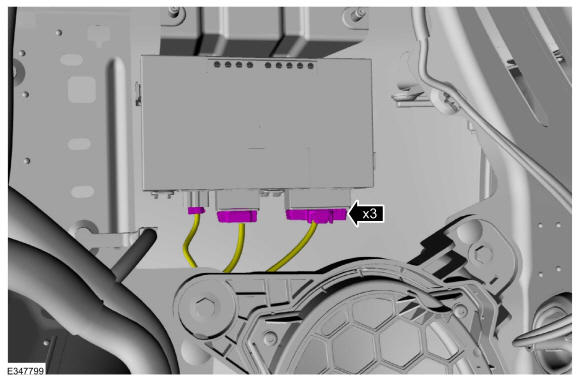

- Disconnect the trailer module electrical connectors.

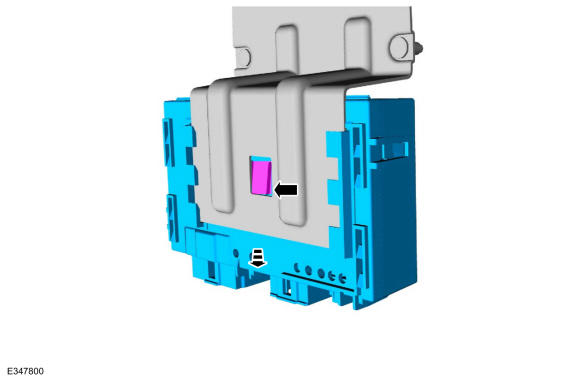

- Release the tab on the backside of the TRM and slide the TRM down and off the bracket.
