Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IPMA cover.

    1. Release the IPMA clips and the tether clip from the IPMA cover. Use the General Equipment: Interior Trim Remover
    2. Rotate the tether clip line to align the end with the opening in the IPMA cover.
    3. Slide the tether clip end out of the IPMA cover.

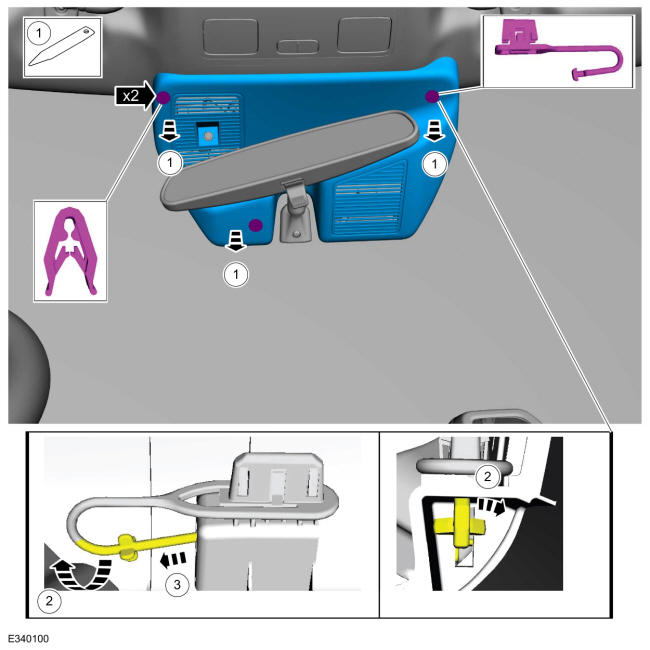

    GFD692503Courtesy of FORD MOTOR COMPANY
  2. Disconnect the electrical connector.

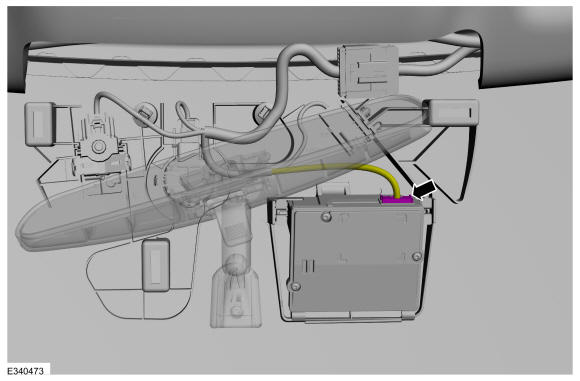

    GFD692504Courtesy of FORD MOTOR COMPANY
  3. Remove the IPMA.

    1. Remove the upper tabs.
    2. Remove the lower tabs.

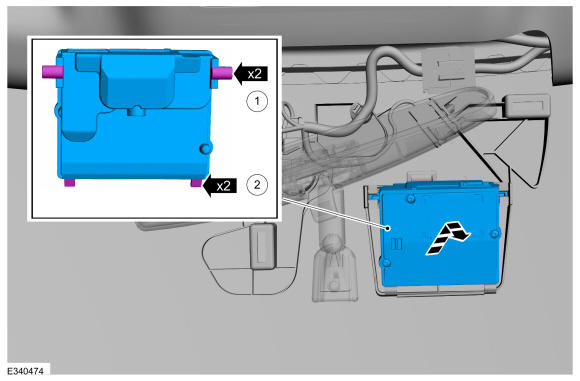

GFD692505Courtesy of FORD MOTOR COMPANY
