Steering Column: Installation
WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.

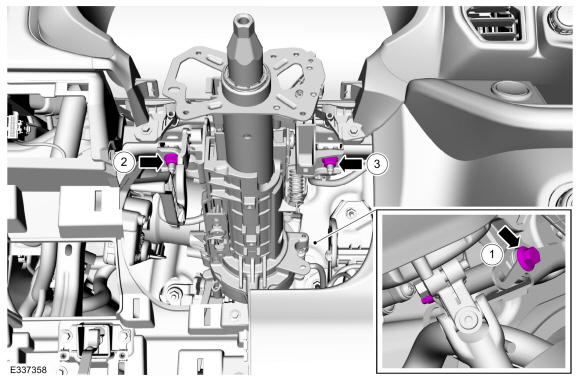

- Tighten the fasteners following the sequence shown below.
Torque: 1: 18 lb.ft (25 Nm) 2: 18 lb.ft (25 Nm) 3: 18 lb.ft (25 Nm)
- Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
-
NOTE: This step is only necessary when installing a new component.
If a new steering column was installed, download the PSCM configuration from the scan tool to the new PSCM. Refer to: Module Configuration - System Operation and Component Description .
- To relearn steering angles, drive the vehicle above 64 km/h (40 mph) for a minimum of 1 mile while maintaining the steering wheel in a straight ahead position with minimal steering input for at least 30 seconds.
