Ignition Switch - Vehicles With: Keyless Entry and Push Button Start: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the center registers. Refer to: Center Registers .

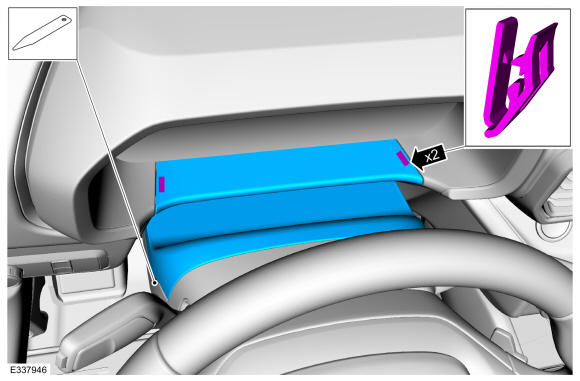

Release the clips and remove the gap hider.

Courtesy of FORD MOTOR COMPANY

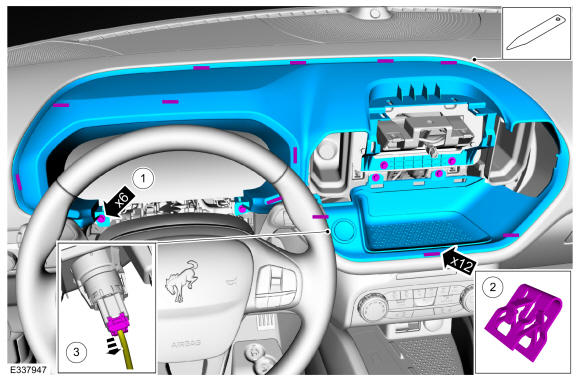

Remove the instrument panel cluster opening finish panel.
1. Remove the retainers.
  Torque: 22 lb.in (2.5 Nm)
2. Release the clips and remove the instrument panel cluster opening finish panel.
3. Disconnect the ignition switch electrical connector.
Courtesy of FORD MOTOR COMPANY

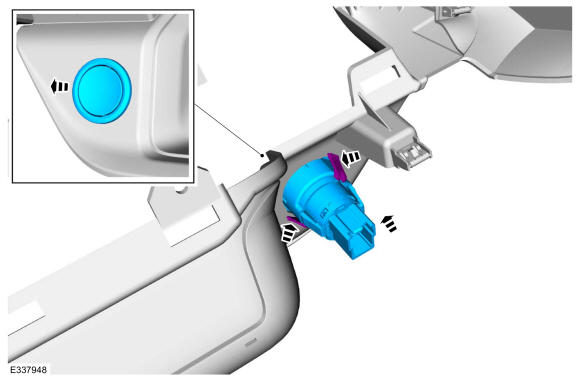

Release the locking tabs and remove the ignition switch.

Courtesy of FORD MOTOR COMPANY
