System Diagrams

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

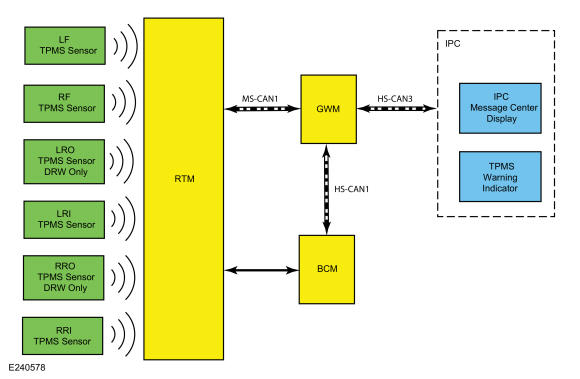

Vehicle Tire Pressure Monitoring System (TPMS)

GFD200487Courtesy of FORD MOTOR COMPANY

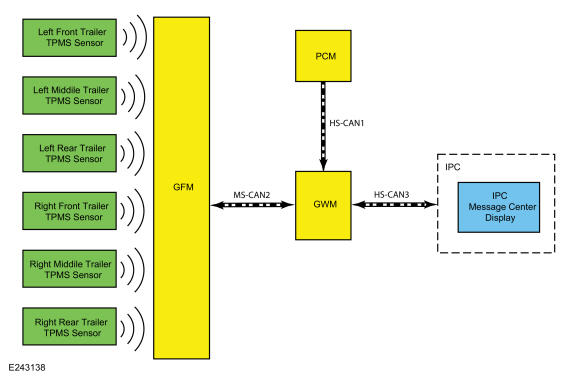

Trailer Tire Pressure Monitoring System (TPMS)

GFD200488Courtesy of FORD MOTOR COMPANY
