Side Obstacle Detection Control Module (SODCM): Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

Side obstacle detection control module

NOTE: This step is only necessary if the SODL or SODR is being replaced.

Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.
Remove the rear bumper cover. Refer to: Rear Bumper Cover .

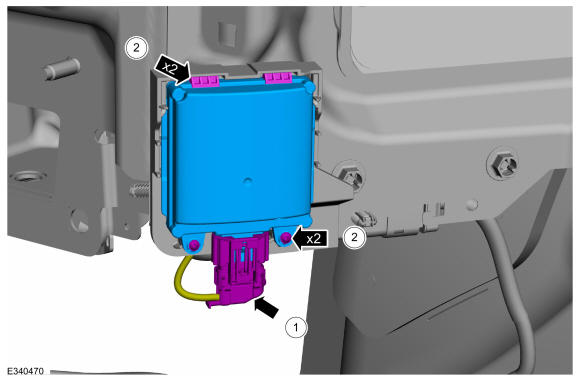

Remove the SODL or SODR.
1. Disconnect the SODL or SODR electrical connector.
2. Remove the SODL or SODR screws and release the tabs.
Courtesy of FORD MOTOR COMPANY

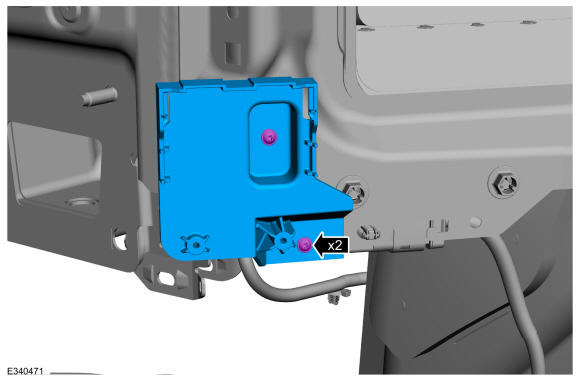

Side obstacle detection control module bracket
Remove the SODL or SODR.
Remove the screws and the SODL or SODR bracket.

Courtesy of FORD MOTOR COMPANY
