Liftgate Alignment
WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Inspection
NOTE:
Removal steps in this procedure may contain installation details.

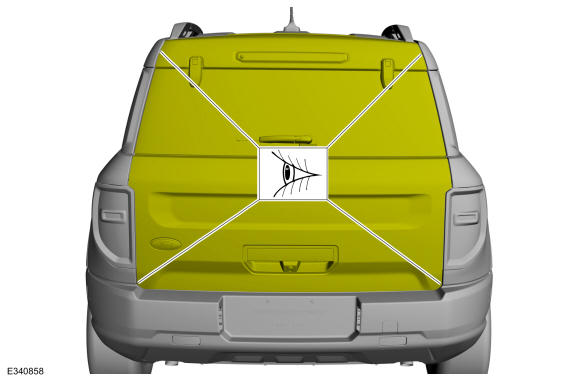

- Check liftgate-to-body dimensions.
Adjustment
All alignments

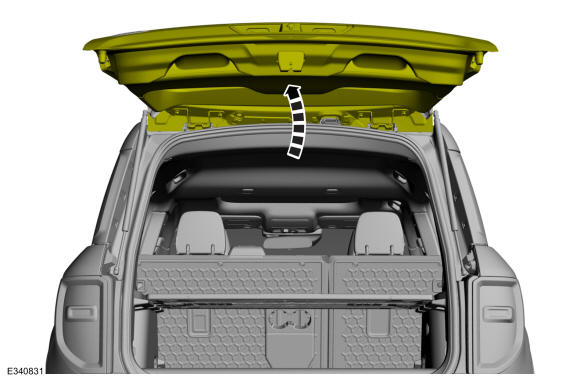

- Open the liftgate.

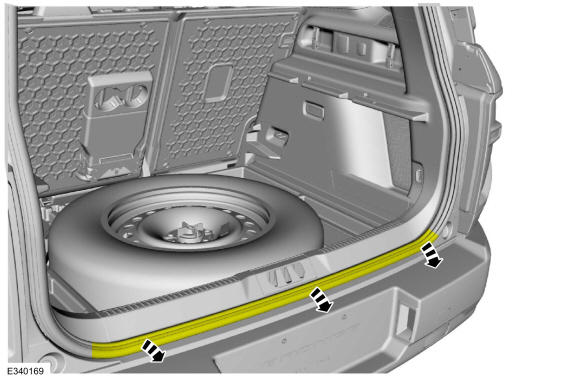

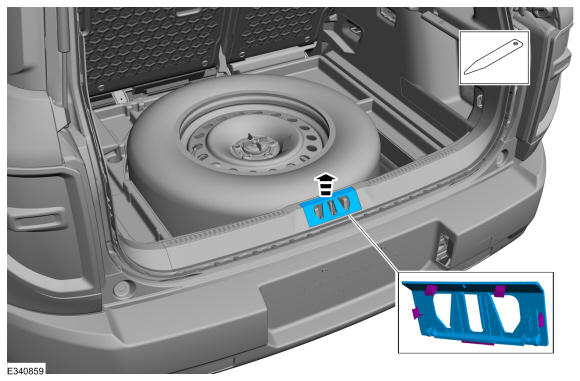

- Position the liftgate opening weather strip aside.
- Release the tabs and remove the liftgate striker cover.

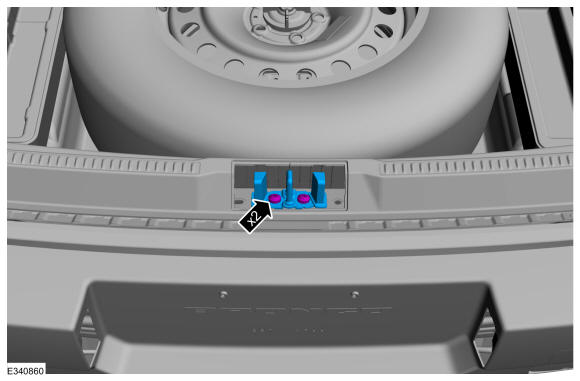

- Remove the fasteners and the liftgate striker.
Torque: 18 lb.ft (25 Nm)
Liftgate left and right, up and down alignment

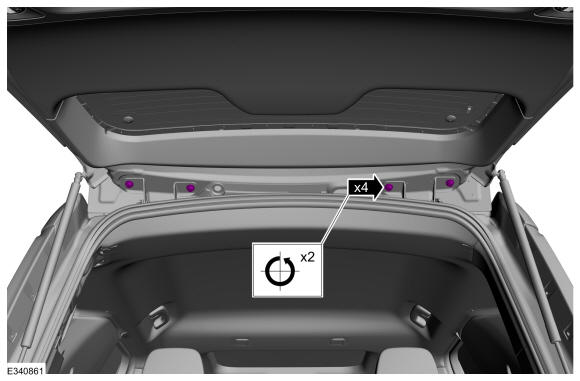

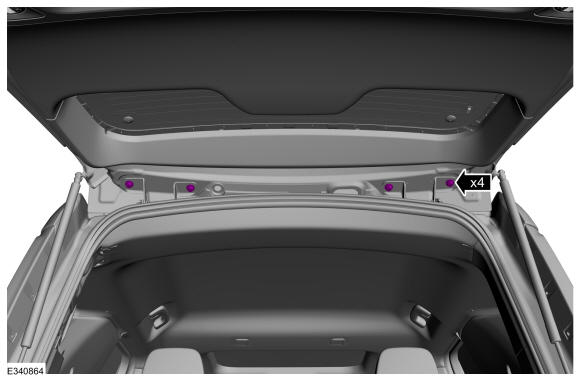

- Loosen the bolts. Loosen: : 2 turn(s)

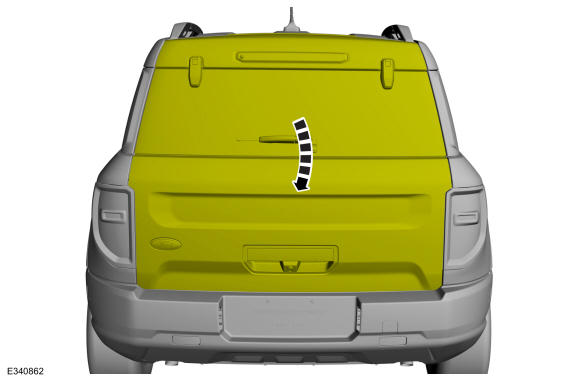

- Carefully close the liftgate.

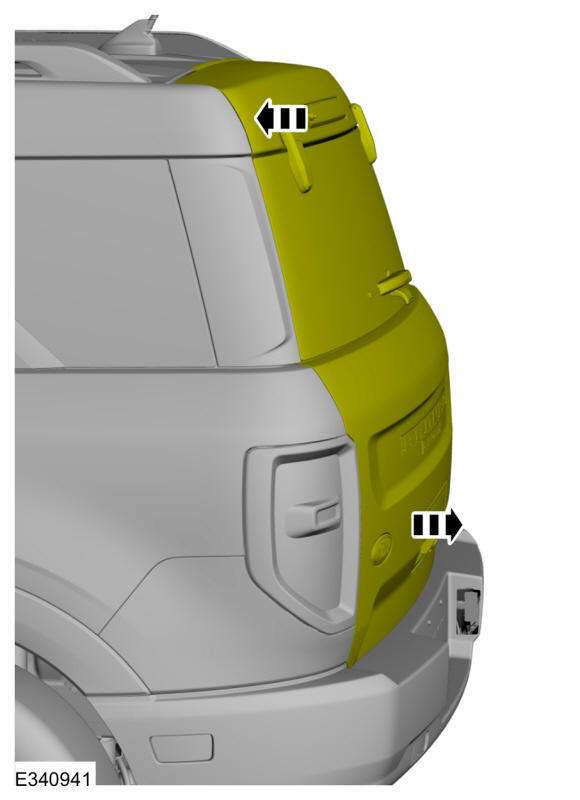

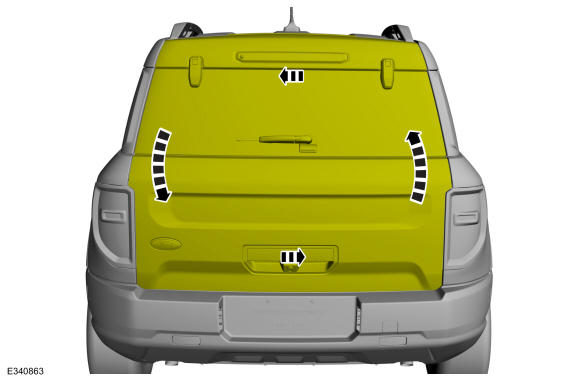

- Adjust the liftgate as required.
- Carefully open the liftgate.
- Tighten the bolts.
Torque: 22 lb.ft (30 Nm)
Liftgate in and out alignment

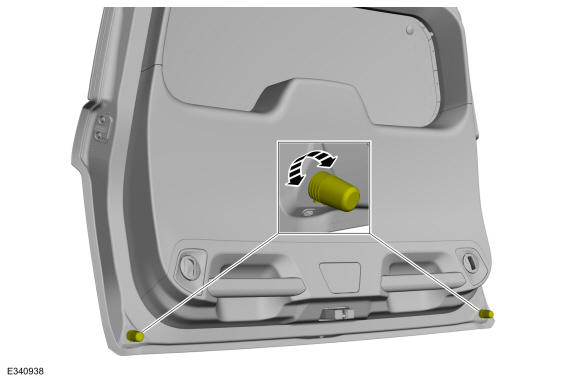

- Adjust the stops.
- On both sides Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .

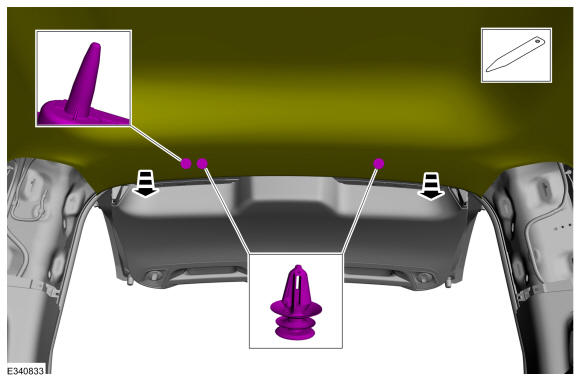

- Release the clips and lower the rear headliner.
-
NOTE: Take extra care not to damage the seal.

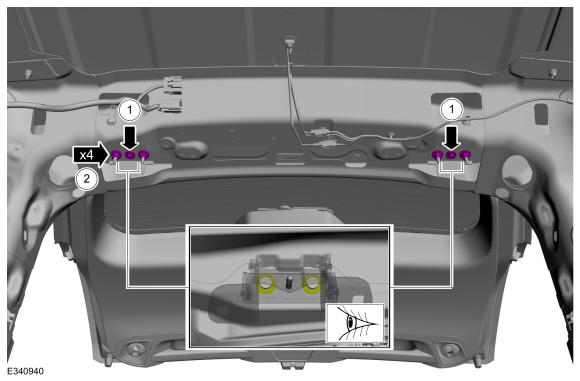

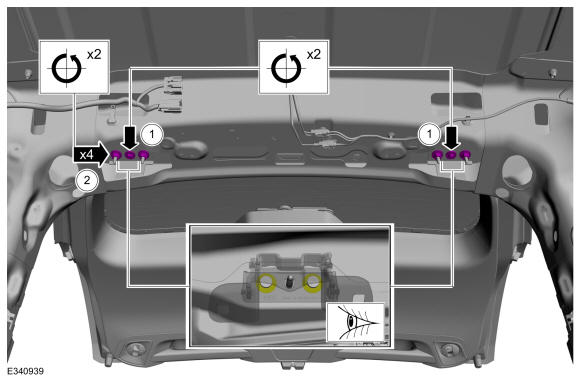

Loosen the bolts and nuts. Loosen: : 2 turn(s)
- Adjust the liftgate as required.
-
NOTE: Take extra care not to damage the seal.
Tighten the bolts and nuts.
Torque: bolt: 22 lb.ft (30 Nm) nut: 22 lb.ft (30 Nm)

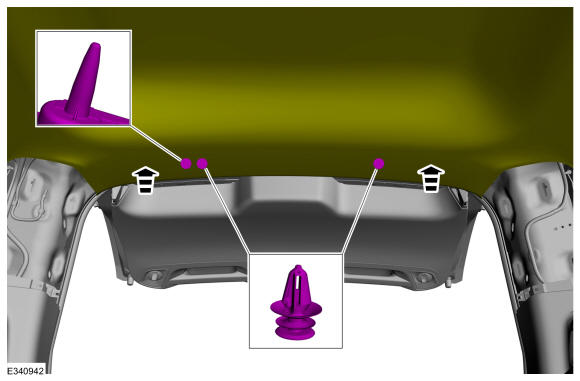

- Attach the clips and position back the rear headliner.
- On both sides Install the C-pillar trim panel. Refer to: C-Pillar Trim Panel
.
All alignments
- Inspect the body-to-liftgate door dimensions.
- Install the positioned aside and removed components.
