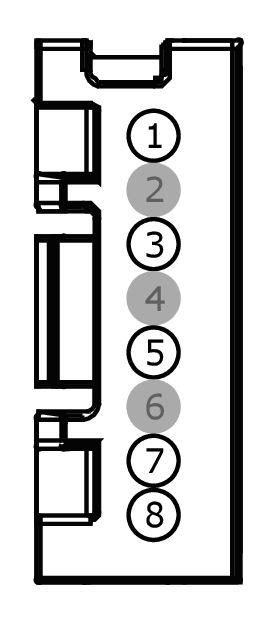

Connector End View C390 - WIRELESS ACCESSORY CHARGING MODULE
WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C390 |
WIRELESS ACCESSORY CHARGING MODULE |
15K857 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| GU5T-14474-KA |
LU2Z-14474-AA |
0.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP18 (YE-RD) |
22 |
FUSE - 18 |
GU5T-14474-KA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
CRT36 (BU-GY) |
22 |
CTRL MOD. - WIRELESS CHARGING |
GU5T-14474-KA |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
GD216 (BK-VT) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
GU5T-14474-KA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
VDB30 (WH-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW |
GU5T-14474-KA |
| 8 |
VDB29 (GN-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH |
GU5T-14474-KA |
