All-Wheel Drive (AWD) Module: Removal

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new all-wheel drive module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new all-wheel drive module after installation. Using a diagnostic scan tool, begin the PMI process for the all-wheel drive module following the onscreen instructions.

Remove the passenger seat. Refer to: Front Seat .
Remove the lower B-pillar trim panel only. Refer to: B-Pillar Trim Panel .

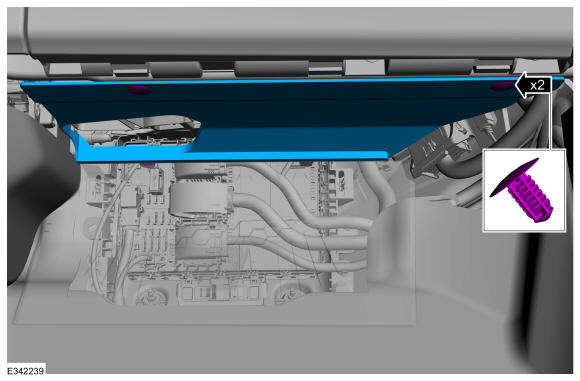

Release the push pins and remove the RH insulation panel.

Courtesy of FORD MOTOR COMPANY

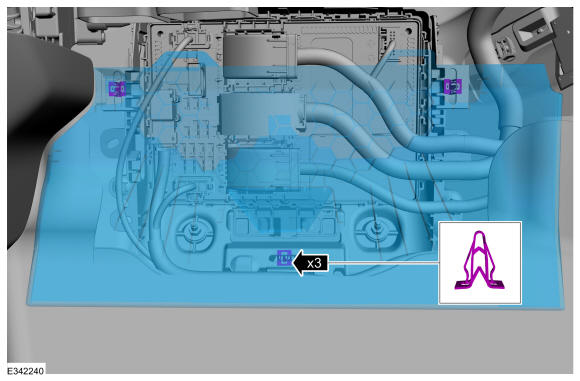

Release the clips and remove the access cover.

Courtesy of FORD MOTOR COMPANY

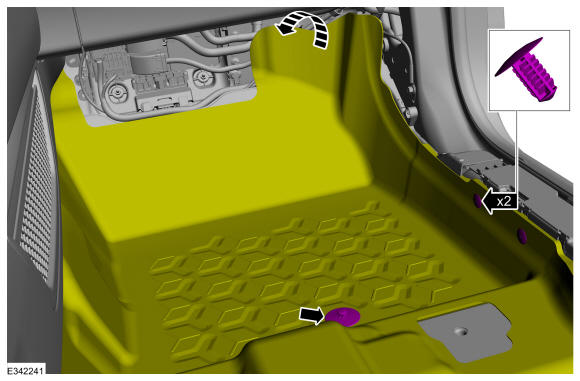

Remove the push pins and position aside the floor carpet aside.

Courtesy of FORD MOTOR COMPANY

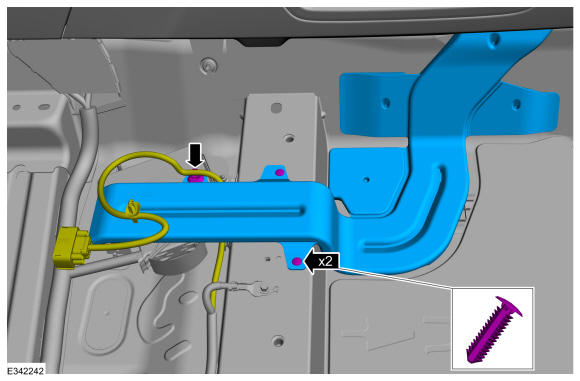

- Detach the wiring harness retainer from the HVAC duct.
- Remove the push pins and the HVAC duct.
Courtesy of FORD MOTOR COMPANY

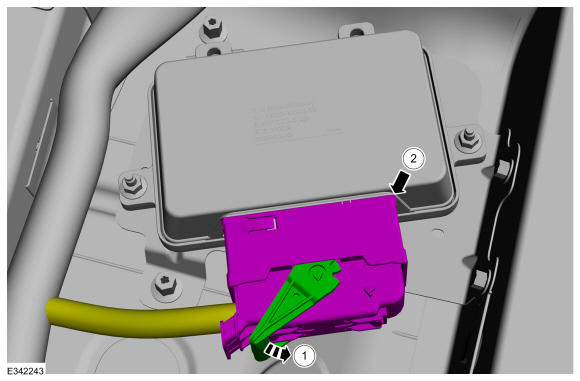

1. Release the tab from the connector.
2. Disconnect the electrical connector from the module.
Courtesy of FORD MOTOR COMPANY

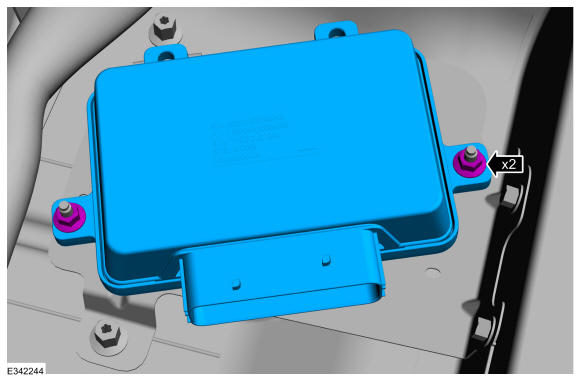

Remove the nuts and the AWD module.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
