Radio Transceiver Module (RTM): Removal
WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Carry out the PMI procedure for the RTM. Refer to: Module Configuration - System Operation and Component Description .
- Lower the headliner. Refer to: Headliner - Lowering .
-
NOTE: Typical application shown.

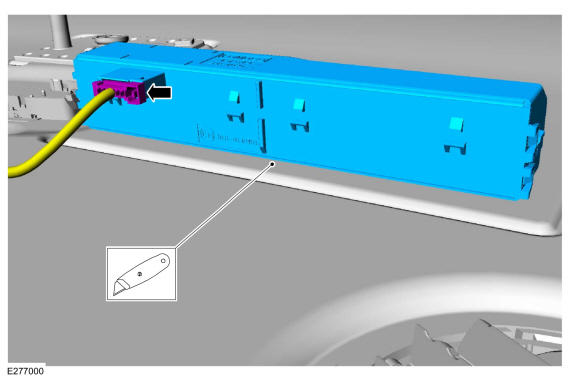

Using a knife, carefully cut the RTM -to-headliner adhesive and remove the RTM.
- Disconnect the electrical connector.Use the General Equipment: Interior Trim Remover
