WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

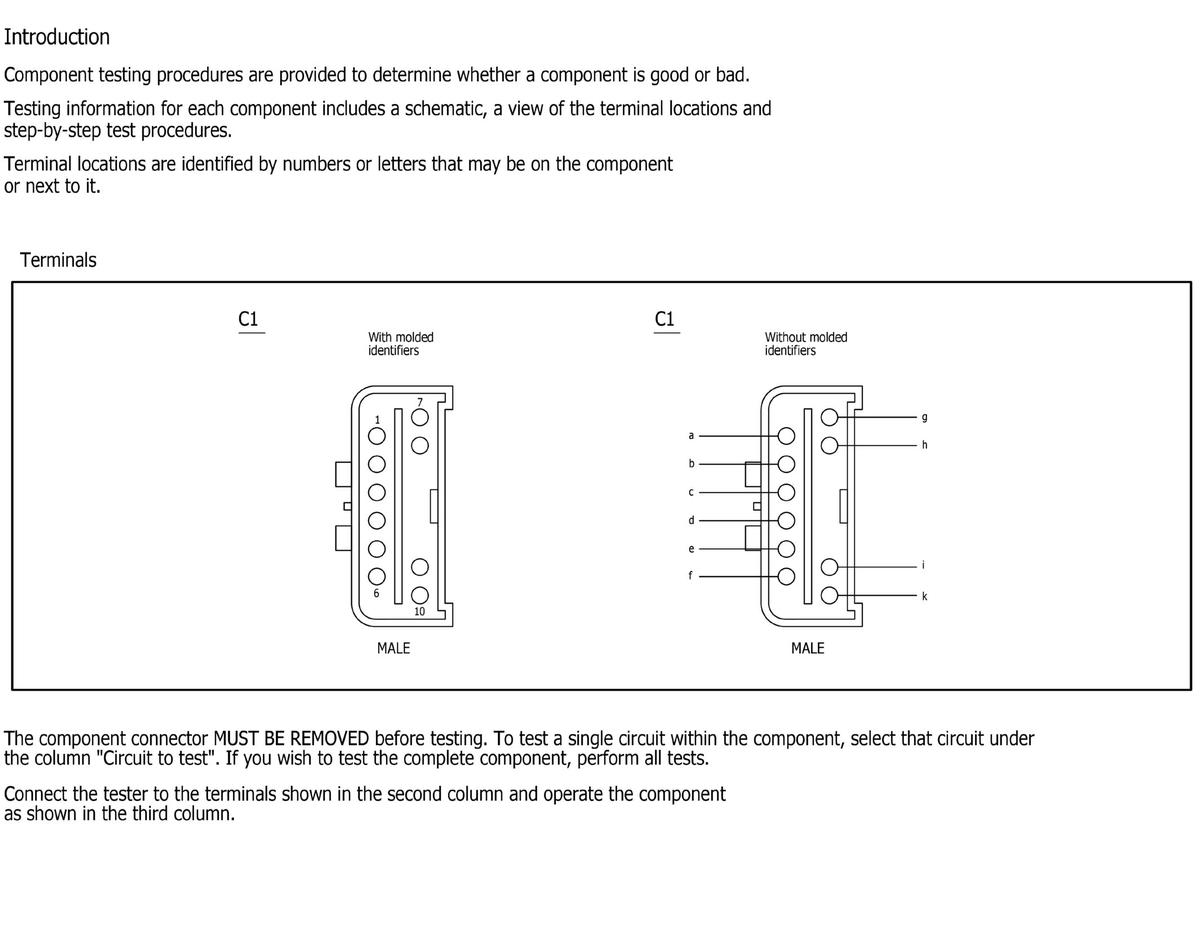

Fig 1: Introduction
Courtesy of FORD MOTOR COMPANY

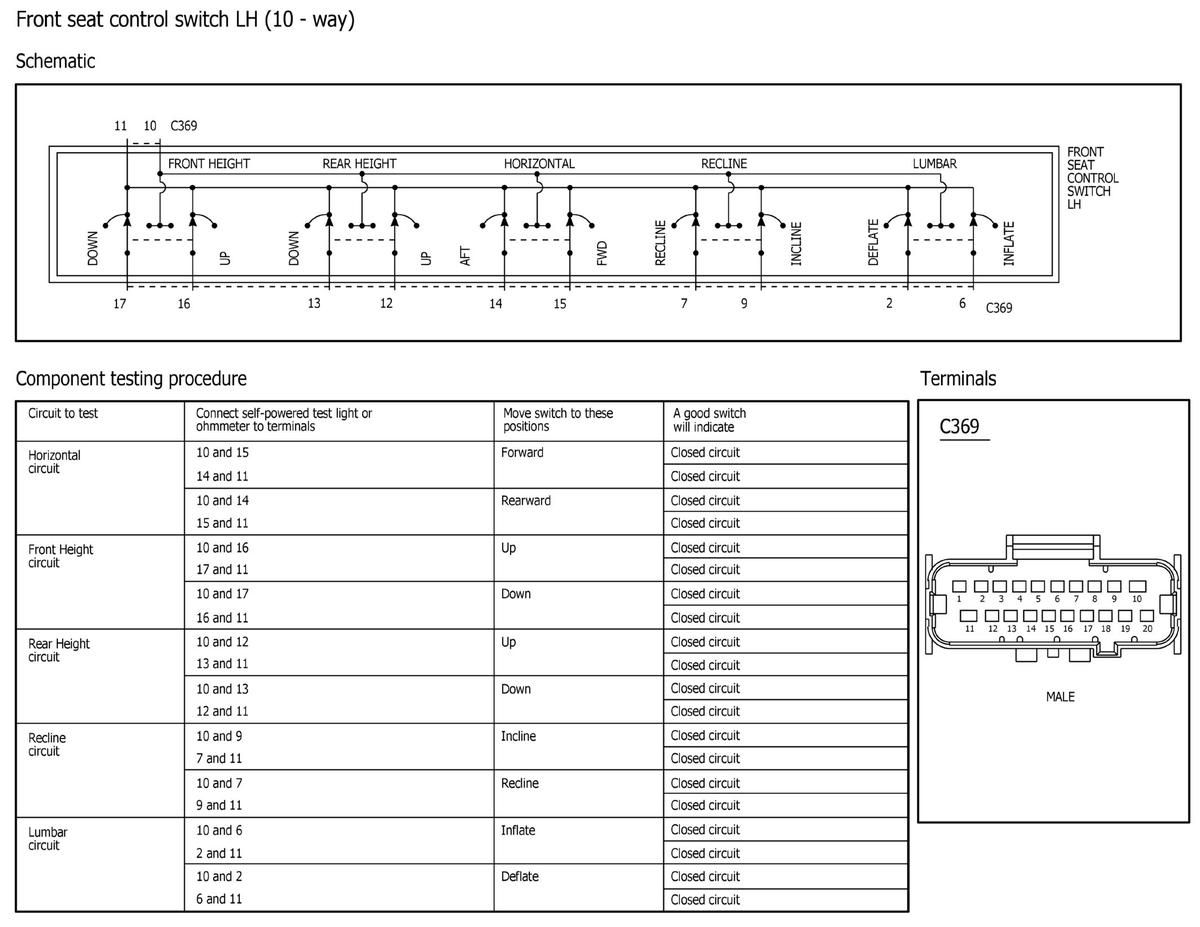

Fig 2: Front Seat Control Switch LH (10-Way) Component Testing
Courtesy of FORD MOTOR COMPANY

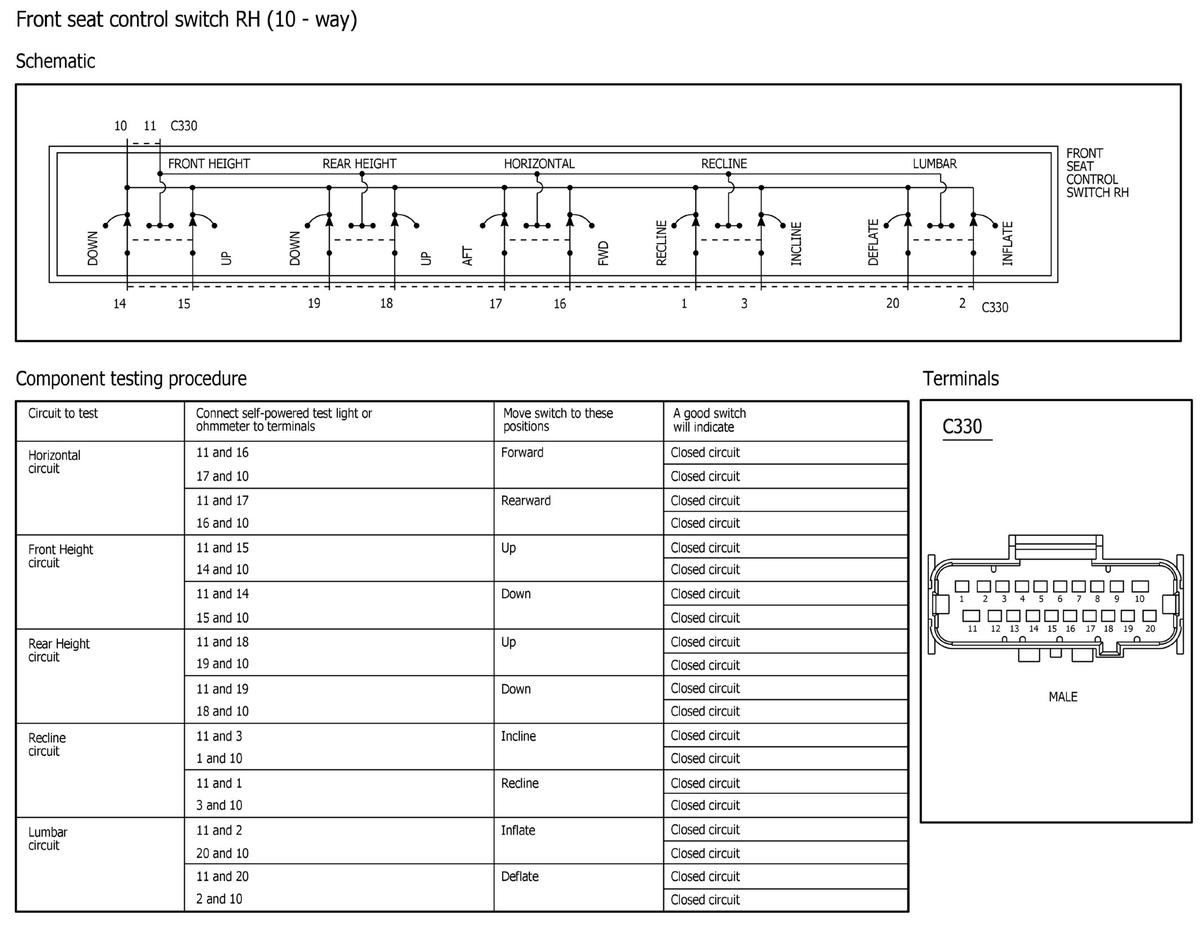

Fig 3: Front Seat Control Switch RH (10-Way) Component Testing
Courtesy of FORD MOTOR COMPANY

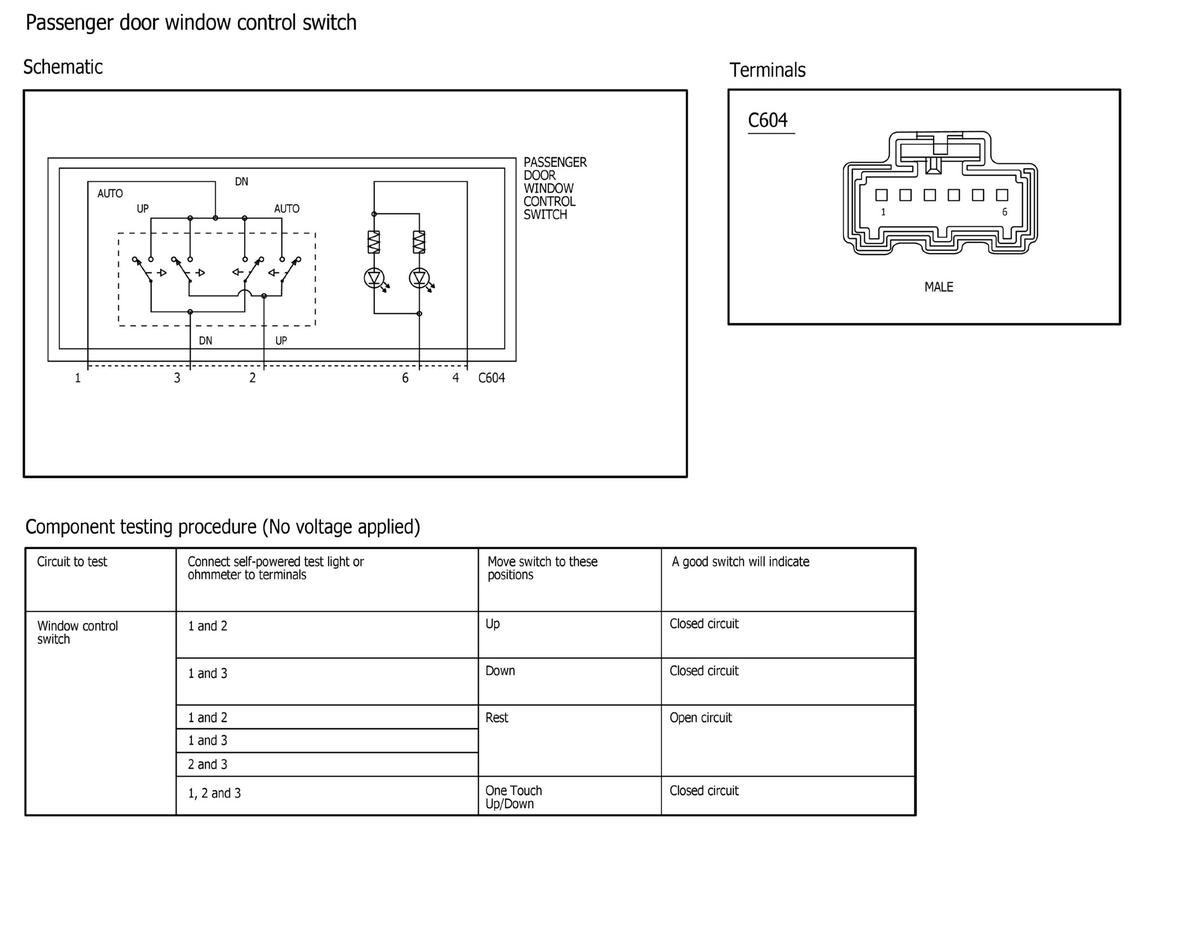

Fig 4: Passenger Door Window Control Switch Component Testing
Courtesy of FORD MOTOR COMPANY

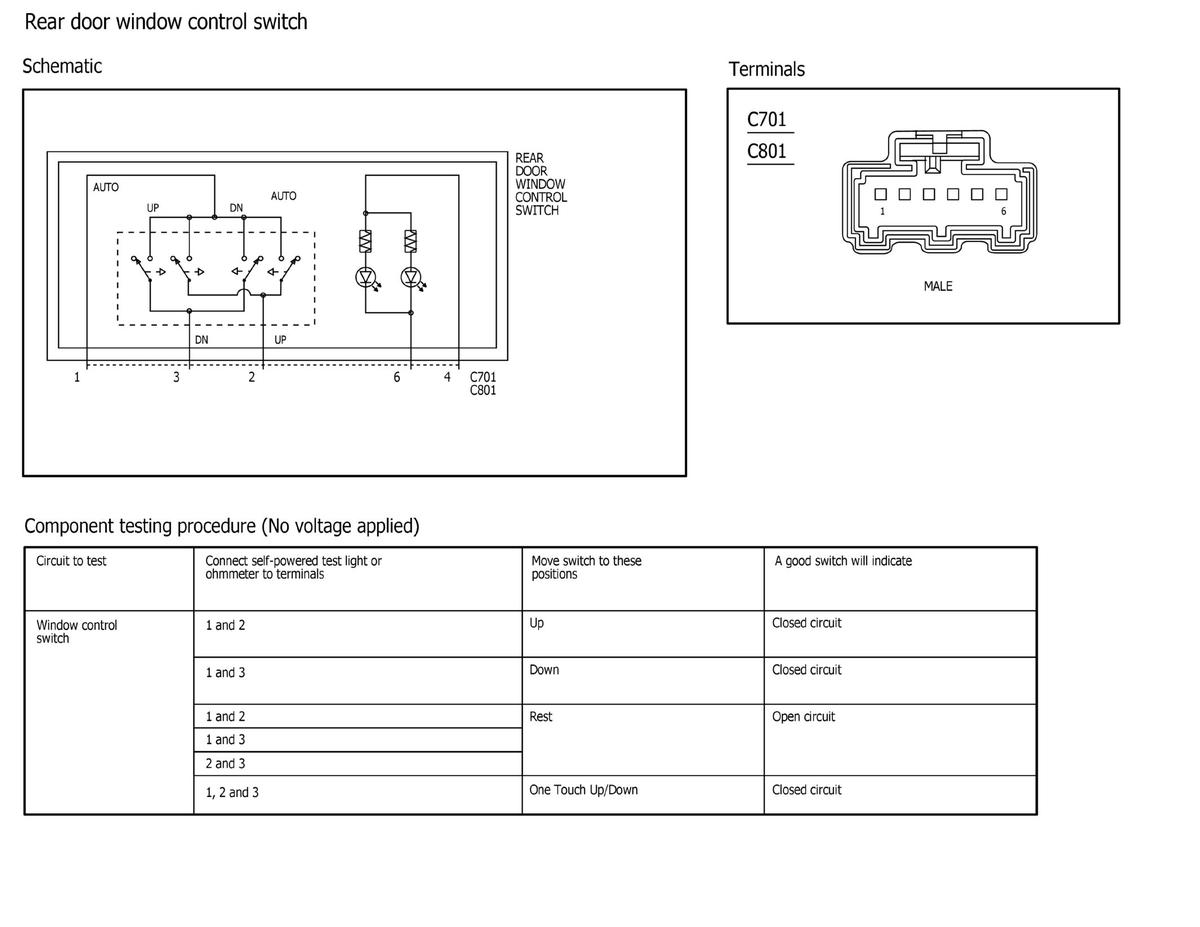

Fig 5: Rear Door Window Control Switch Component Testing
Courtesy of FORD MOTOR COMPANY

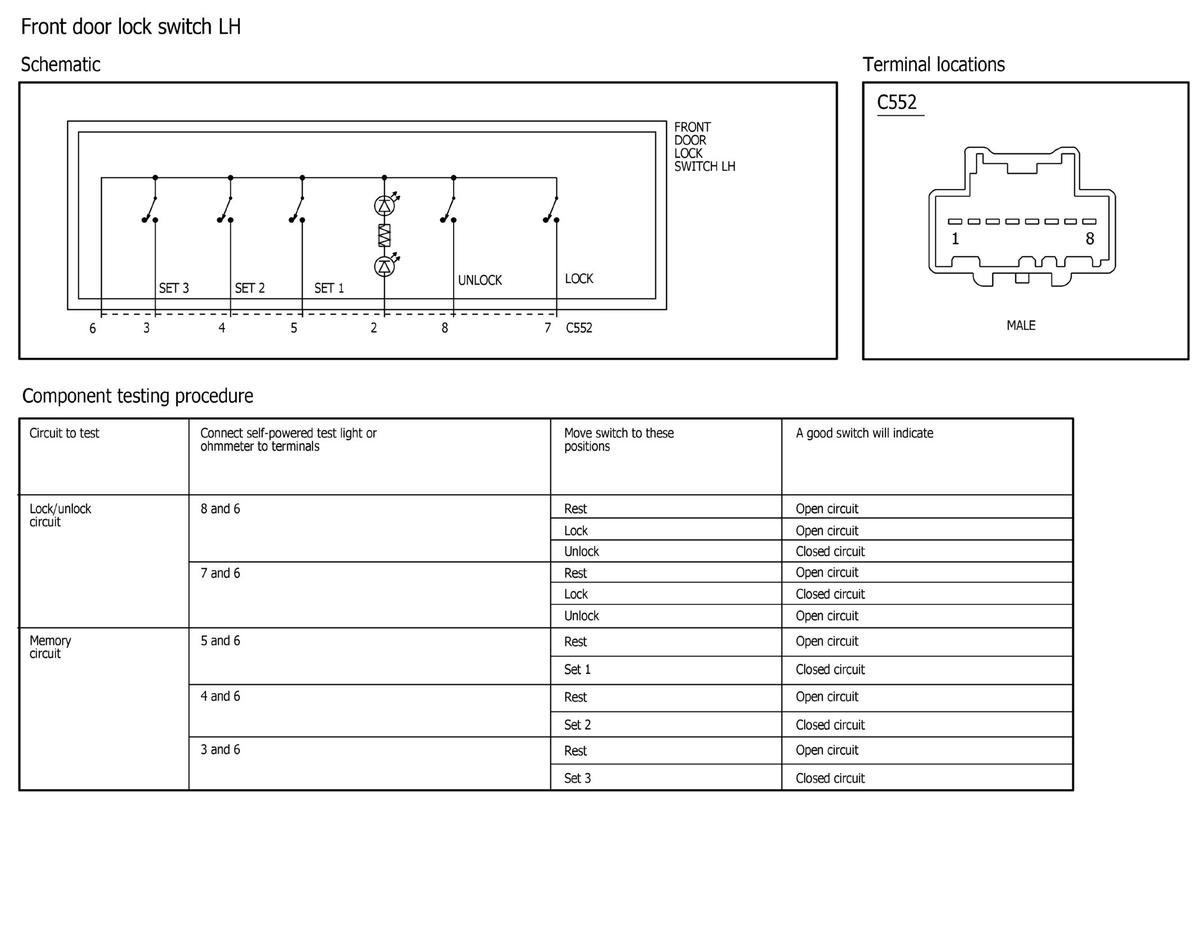

Fig 6: Front Door Lock Switch LH Component Testing
Courtesy of FORD MOTOR COMPANY

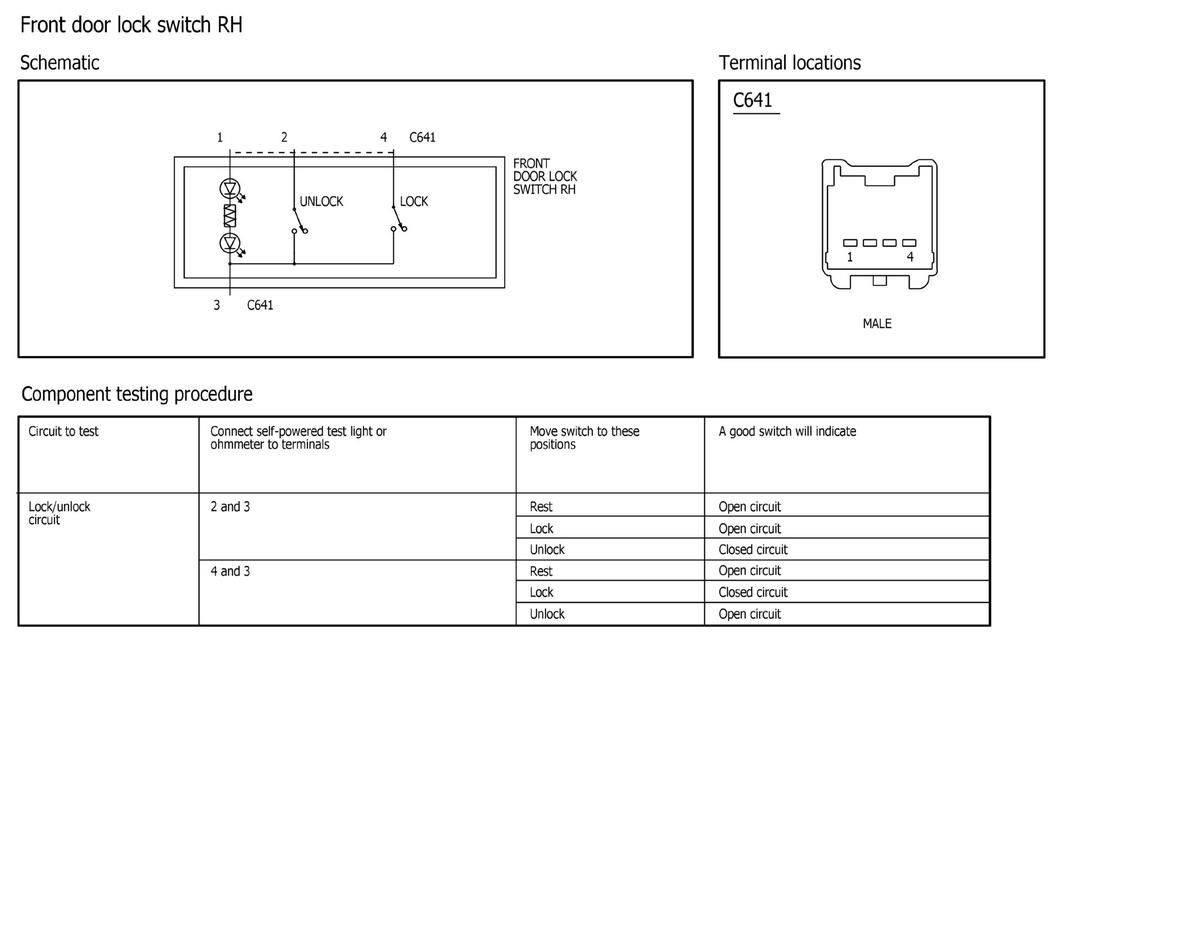

Fig 7: Front Door Lock Switch RH Component Testing
