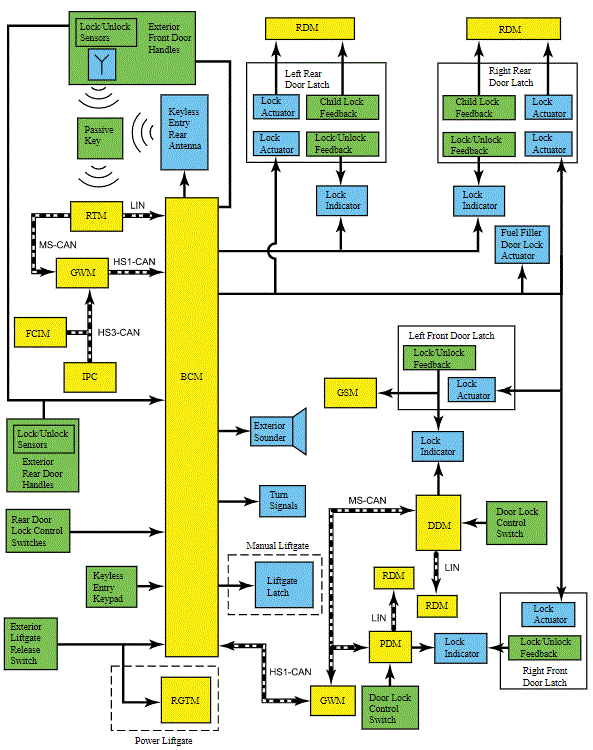

System Diagram
WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The Phone As A Key feature can also be used to lock/unlock the vehicle. Refer to Passive Anti-Theft System - Description And Operation
for information regarding this feature.
