Downshift Paddle Switch: Removal

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: Driver Airbag - Vehicles With: Adaptive Steering . Refer to: Driver Airbag .

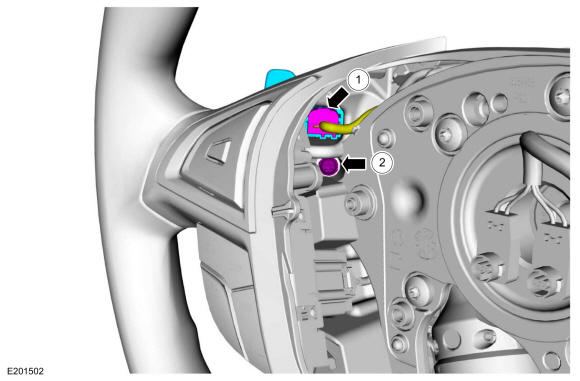

  2. Remove the downshift paddle switch.

    1. Disconnect the electrical connector.
    2. Remove the retainer and the downshift paddle switch.

      Torque: 44 lb.in (5 Nm)

GFD620880Courtesy of FORD MOTOR COMPANY
