Front Door Alignment: Adjustment

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

All alignments

Open the door.

Courtesy of FORD MOTOR COMPANY

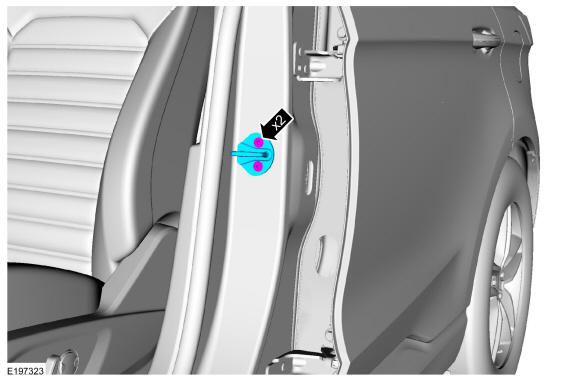

Remove the bolts and the striker assembly.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

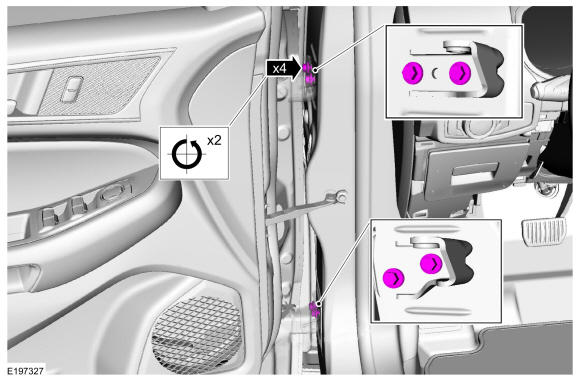

Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

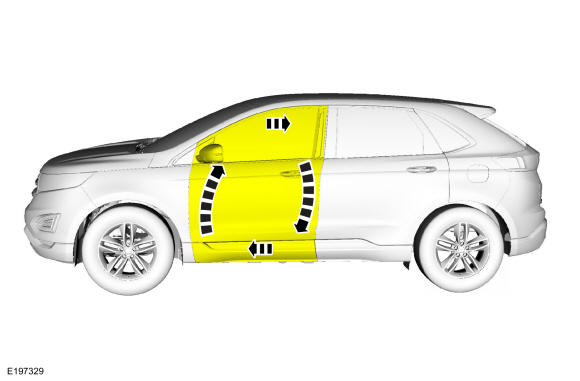

Adjust the door to specification. Refer to: the appropriate service information. .

Courtesy of FORD MOTOR COMPANY

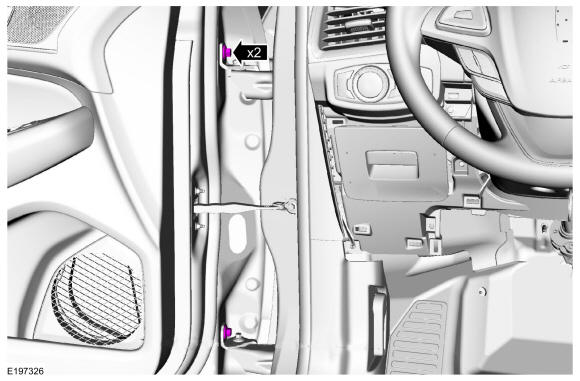

Tighten the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

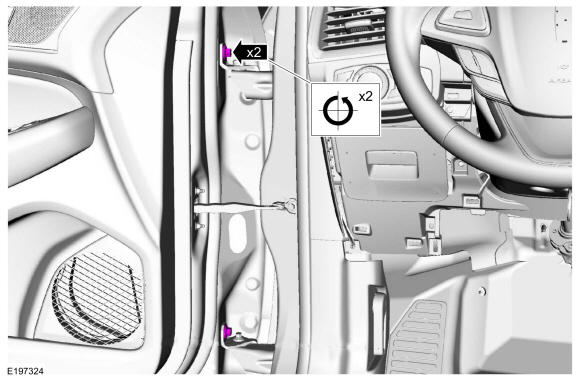

Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

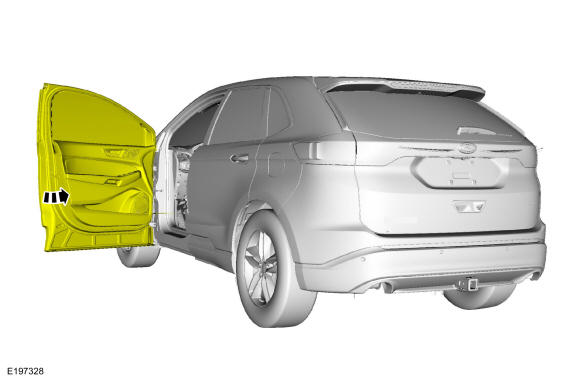

Carefully close the door.

Courtesy of FORD MOTOR COMPANY

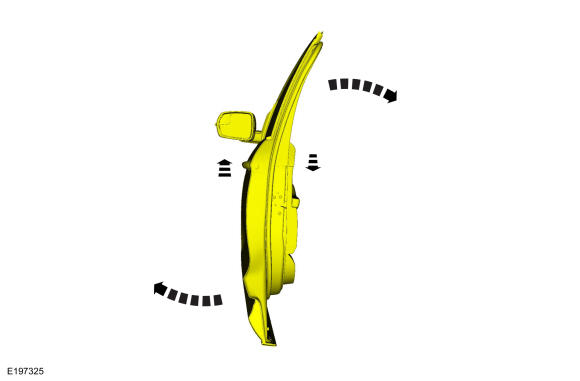

Adjust the door to specification. Refer to: the appropriate service information. .

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY

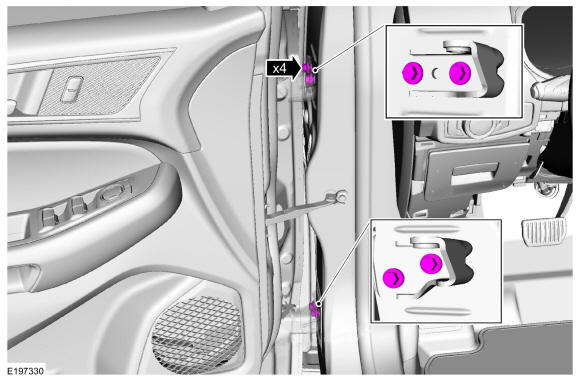

Tighten the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

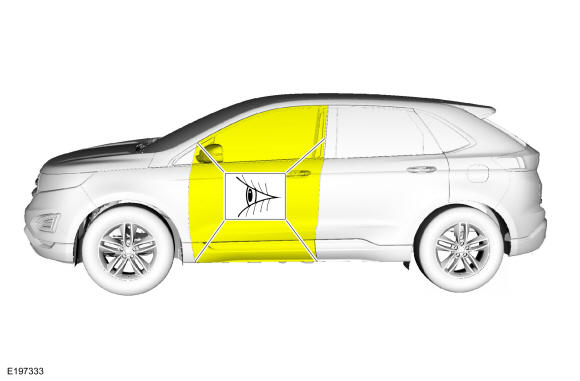

Inspect the body-to-front door dimensions. Refer to: the appropriate service information. .

Courtesy of FORD MOTOR COMPANY
