Rear Gate Trunk Module (RGTM): Removal

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.

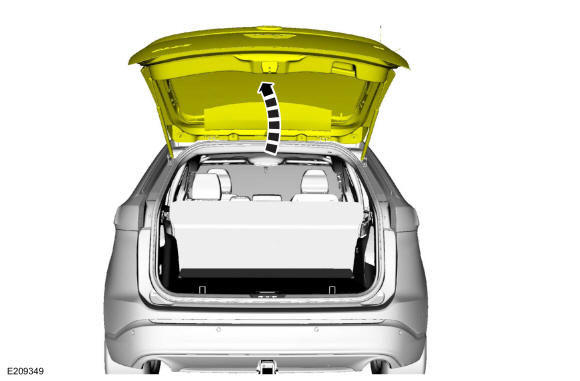

Open the liftgate.

Courtesy of FORD MOTOR COMPANY
Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

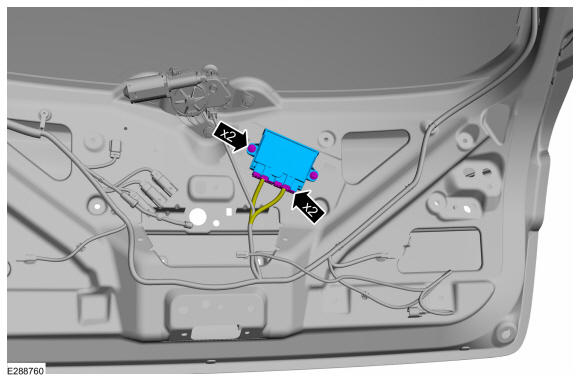

- Disconnect the electrical connectors.
- Remove the screws and the RGTM.

Courtesy of FORD MOTOR COMPANY
