Tire Pressure Monitoring System (TPMS) - Component Location

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

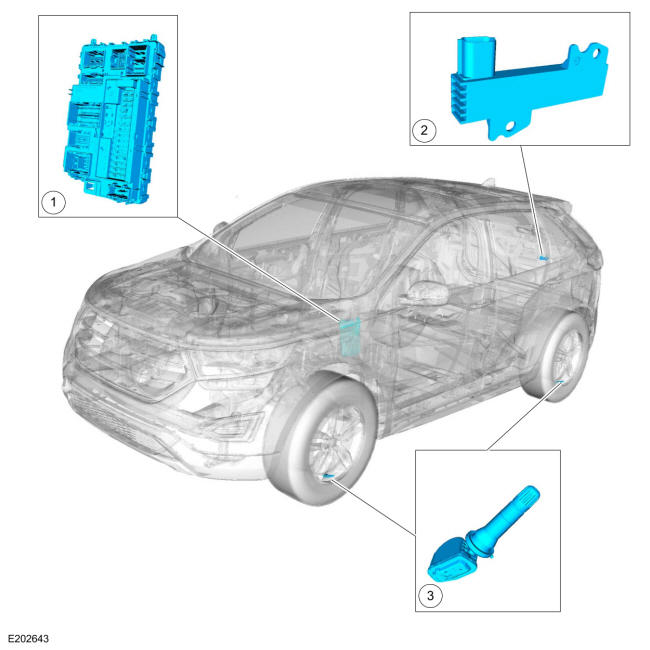

GFD617565Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 RTM
3 TPMS sensor assembly (4 required)
