Intake Manifold Runner Control (IMRC) Position Sensor: Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .
-

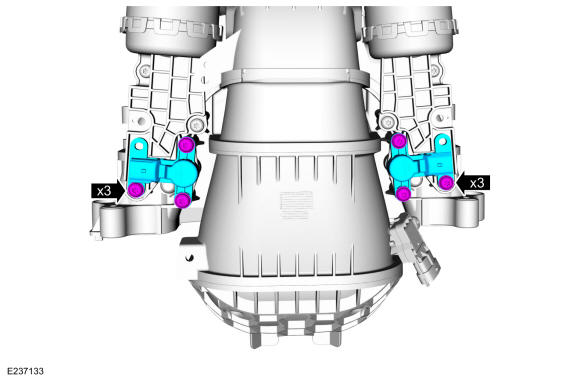

- Remove the retainers and the LH IMRC position sensor.
Torque: 53 lb.in (6 Nm)
- Remove the retainers and the RH IMRC position sensor.
Torque: 53 lb.in (6 Nm)
- Remove the retainers and the LH IMRC position sensor.
